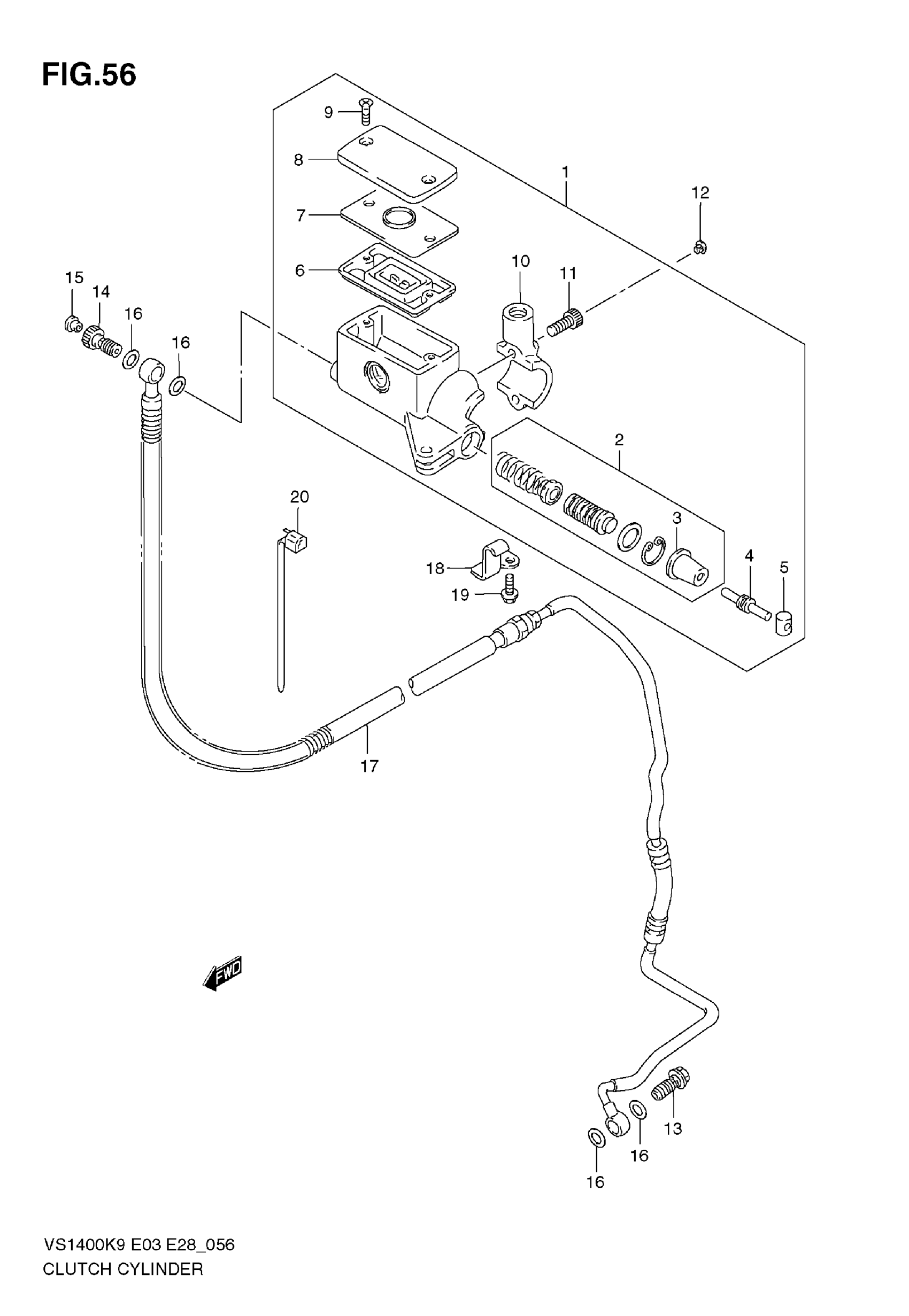

Suzuki VS1400 (2009) CLUTCH CYLINDER Diagram

#

Description
Price

1

CYLD ASSY,CLUTC | Includes Item(s) 2 - 11 This part replaces 59800-39A10.

59800-39A11

$499.18

2

PISTON & CUP SET

59800-08810

$36.14

3

BOOT

59666-44300

$5.30

4

PUSH ROD This part replaces 59871-38A00.

59871-32F00

$5.50

5

BUSH

59892-08A00

$4.63

6

DIAPHRAGM

59667-49460

$8.95

7

PLATE, DIAPHRAGM

59668-41C00

$8.54

8

CAP

59669-10F00

$80.65

9

SCREW

02122-04127

$1.97

10

HOLDER

59671-38A00

$33.97

11

BOLT

07130-06207

$2.80

12

CAP

09250-05008

$3.44

13

BOLT, LOWER (10X1.00X22)

09360-10061

$5.89

14

BOLT, UPPER (10X1.00X24)

09360-10027

$8.33

15

CAP

09250-08014

$2.80

16

WASHER (10X15X1.5)

09161-10009

$1.83

17

HOSE ASSY, CLUTCH

59900-38B50

Unavailable

18

CLAMP, HOSE

59542-38B00

Unavailable

19

BOLT

01550-0610B

$2.43

20

CLAMP (L:165)

09407-18402

$2.21
