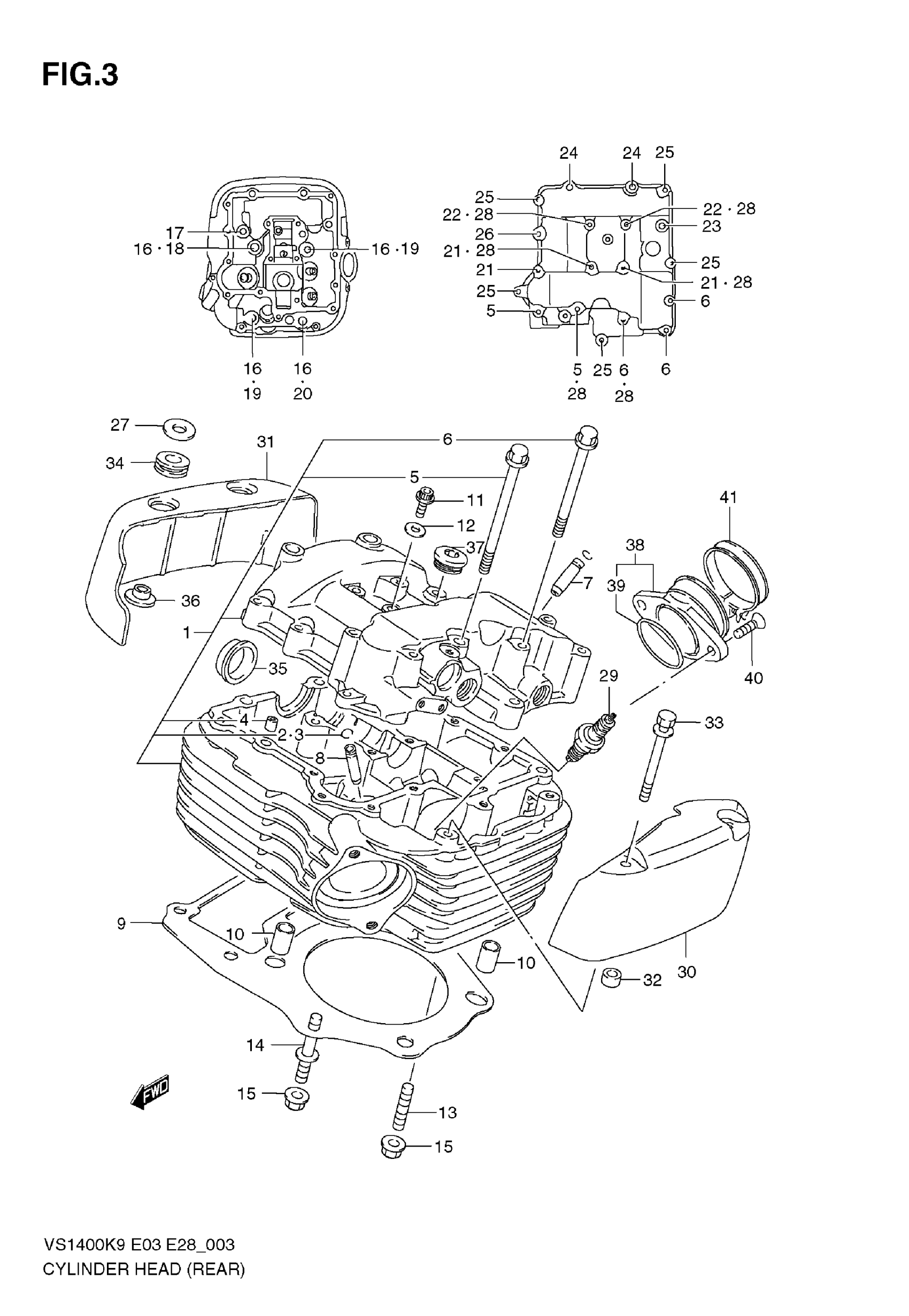

Suzuki VS1400 (2009) CYLINDER HEAD (REAR) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | Includes Item(s) 2 - 6

11103-38B60

Unavailable

2

.RING (10X85)

09381-10004

$1.35

3

RING, VALVE GUIDE EXHAUST

09381-10003

$2.69

4

PIN

09206-08001

$1.77

5

BOLT (6X60)

09103-06064

$2.13

6

BOLT (6X55)

09103-06102

$1.68

7

GUIDE, VALVE INTAKE (OS:0.3) | OPT

11115-38B70

Unavailable

8

GUIDE, VALVE EXHAUST (OS:0.3) | OPT

11115-45740

$45.97

9

GASKET, CYLINDER HEAD REAR

11142-38B00

$69.47

10

PIN

04211-13189

$2.19

11

BOLT, OIL GALLERY

07120-0612B

$2.80

12

GASKET

09168-06018

$1.70

13

STUD BOLT (L:30)

09108-08142

$2.87

14

STUD BOLT (M12/8)

09108-08205

$15.70

15

NUT

08316-1008B

$2.65

16

WASHER

09160-10039

$2.24

17

BOLT (8X57)

09103-08181

Unavailable

18

BOLT (10X180)

09103-10178

$13.30

19

BOLT (10X190)

09103-10179

$14.02

20

BOLT (10X215)

09103-10181

Unavailable

21

BOLT (6X50)

09103-06101

$2.72

22

BOLT (6X45)

09103-06112

Unavailable

23

BOLT (8X130)

09103-08086

Unavailable

24

BOLT (8X268)

09103-08213

$30.17

25

BOLT

01550-0630B

$2.80

26

BOLT

01550-0635B

$2.75

27

WASHER

09160-08130

$2.01

28

GASKET

09168-06023

$2.01

29

SPARK PLUG (NGK,DPR8EA-9)

09482-00334

$2.80

29

SPARK PLUG (ND,X24EPR-U9)

09482-00335

$4.90

29

SPARK PLUG (NGK,DPR7EA-9) | OPT

09482-00354

$3.04

29

SPARK PLUG (NGK,DPR7EA-9) | OPT This part replaces 09482-00355.

09482-00354

$3.04

29

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

$2.85

29

SPARK PLUG (ND,X27EPR-U9) | OPT

09482-00331

$5.77

30

CAP, HEAD COVER LH

11173-38B00

Unavailable

31

CAP, HEAD COVER RH

11174-38B00

Unavailable

32

CUSHION, HEAD COVER CAP

11273-24B00

$4.26

33

BOLT

01244-06607

$3.25

34

CUSHION

09320-13015

$2.80

35

PLUG, CYLINDER HEAD

09241-30008

$6.45

36

BUSH

09301-08007

$7.38

37

PLUG, HEAD COVER

09248-22004

$17.87

38

PIPE ASSY,INTAK | Includes Item(s) 39 This part replaces 13102-38B01.

13102-38B02

$44.08

39

O RING (D:1.9,ID:40.7)

09280-41007

$8.16

40

SCREW

02122-0620B

$1.46

41

CLAMP, INTAKE PIPE

09402-52501

$9.98
