2009 Suzuki VS1400 Cylinder Head Diagram

← All diagrams

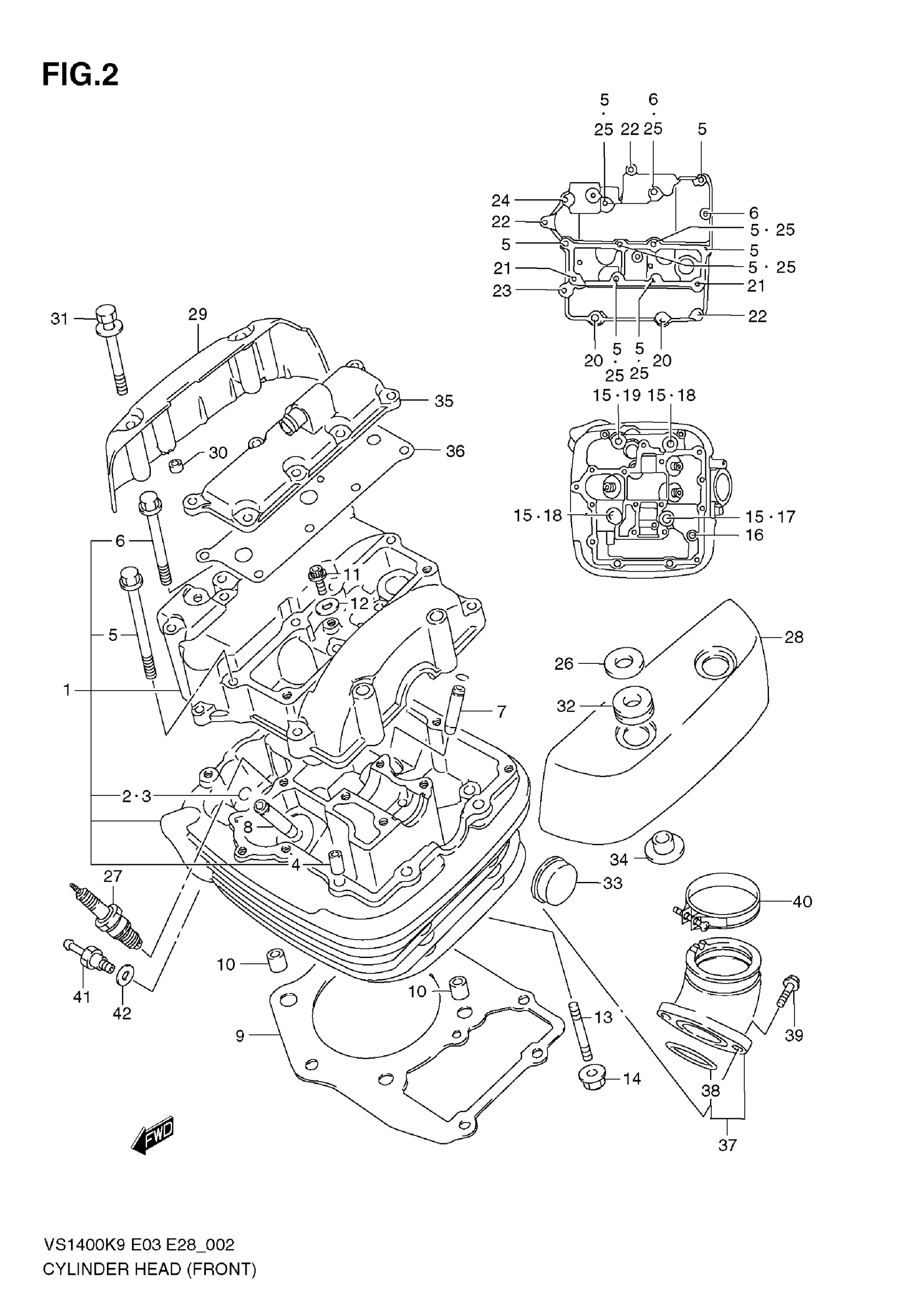

Find the part on the Cylinder Head diagram for your 2009 Suzuki VS1400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VS1400 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER FRONT | Includes Item(s) 2 - 6

11101-38B60

1
Out of stock

2

.RING (10X85)

09381-10004

2
Out of stock

3

1

$2.69

In stock

4

PIN

09206-08001

2
Out of stock

5

BOLT (6X60)

09103-06064

8

$2.31

In stock

6

BOLT (6X55)

09103-06102

2
Out of stock

7

GUIDE, VALVE INTAKE (OS:0.3) | OPT

11115-38B70

2
Out of stock

8

1

$45.97

In stock

9

1

$69.47

In stock

10

PIN

04211-13189

2
Out of stock

11

BOLT, OIL GALLERY

07120-0612B

1

$3.00

In stock

12

GASKET

09168-06018

1
Out of stock

13

STUD BOLT (L:30)

09108-08142

2
Out of stock

14

NUT

08316-1008B

2

$2.85

In stock

15

WASHER

09160-10039

4
Out of stock

16

BOLT (8X70)

09103-08099

1

$5.49

In stock

17

BOLT (10X180)

09103-10178

1
Out of stock

18

BOLT (10X190)

09103-10179

2

$15.12

In stock

19

BOLT (L:200)

09103-10180

1

$15.12

In stock

20

BOLT (8X268)

09103-08213

2

$30.17

In stock

21

BOLT

01550-0620B

2
Out of stock

22

BOLT

01550-0630B

3

$2.92

In stock

23

BOLT

01550-0635B

1

$2.92

In stock

24

BOLT

01550-0670B

1

$4.62

In stock

25

GASKET

09168-06023

6
Out of stock

26

WASHER

09160-08130

2
Out of stock

27

1

$2.92

In stock

27

1

$5.30

In stock

27

1

$3.26

In stock

27

1

$3.08

In stock

27

1

$5.77

In stock

28

CAP, HEAD COVER LH

11171-38B00

1
Out of stock

29

CAP, HEAD COVER RH

11172-38B00

1

$173.67

In stock

30

2

$4.64

In stock

31

BOLT

01244-06607

2

$3.51

In stock

32

CUSHION

09320-13015

2

$2.92

In stock

33

PLUG, CYLINDER HEAD

09241-30008

1

$6.95

In stock

34

BUSH

09301-08007

2

$7.38

In stock

35

COVER, BREATHER

11180-38B10

1
Out of stock

36

GASKET, BREATHER COVER

11177-38B01-H17

1

$13.93

In stock

37

1

$95.28

In stock

38

1

$8.38

In stock

39

BOLT

01550-0616B

2
Out of stock

40

CLAMP, INTAKE PIPE

09402-52501

1

$10.76

In stock

41

UNION, INTAKE PORT

09362-06002

1
Out of stock

42

GASKET

09168-06018

1
Out of stock
