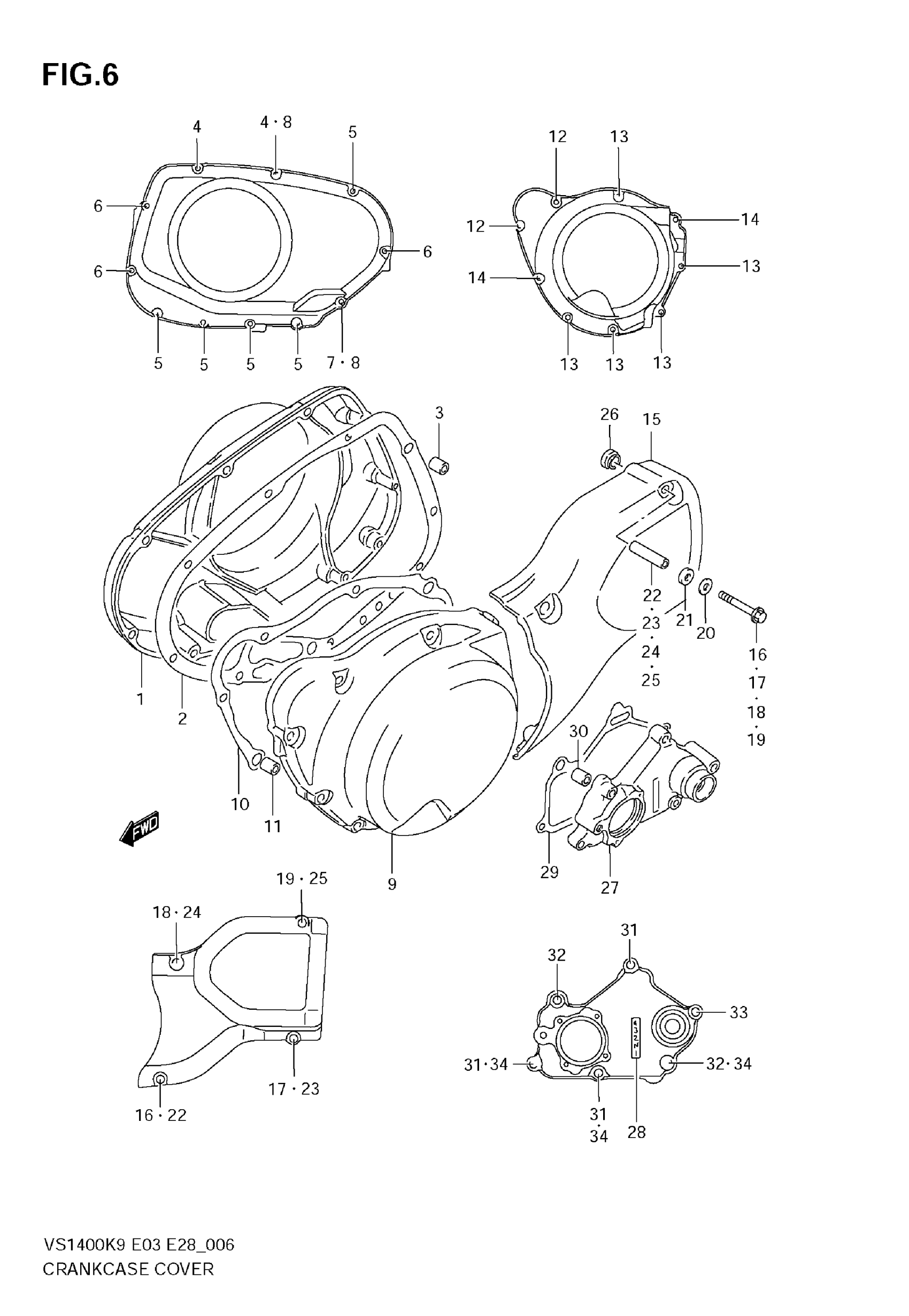

Suzuki VS1400 (2009) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-38B01

Unavailable

2

GASKET, CLUTCH COVER

11482-38B20

$21.12

3

PIN

04211-09189

$1.64

4

BOLT

09103-06213

$2.53

5

BOLT

09103-06213

$2.53

6

BOLT

09103-06215

$2.80

7

BOLT

09103-06216

$2.80

8

GASKET (5.8X13X1.2)

09168-06023

$2.01

9

COVER, GENERATOR

11351-38B00

$398.18

10

GASKET, GENERATOR COVER

11483-38B10

$10.80

11

PIN

09206-11007

$2.63

12

BOLT

09103-06213

$2.53

13

BOLT

09103-06214

$2.57

14

BOLT

09103-06224

$2.68

15

COVER, SECONDARY CASE

11361-38B00

Unavailable

16

BOLT

09103-06214

$2.57

17

BOLT

09103-06215

$2.80

18

BOLT

09103-06261

$2.90

19

BOLT

09103-06261

$2.90

20

WASHER

09160-06125

$1.89

21

CUSHION, OUTER

09161-09005

$2.33

22

SPACER (L:18.2)

09180-06301

$6.90

23

SPACER (L:23)

09180-06302

$5.61

24

SPACER (L:43)

09180-06303

$9.90

25

SPACER (L:45.9)

09180-06281

$9.33

26

CUSHION, INNER

09161-09005

$2.33

27

COVER, GEAR SHIFT | Includes Item(s) 28

11371-38B20

Unavailable

28

LABEL, GEAR SHIFT PATTERN

68392-38B00

Unavailable

29

GASKET, GEAR SHIFT COVER

11485-38B20

$8.57

30

PIN

04211-09109

$1.64

31

BOLT

09103-06212

$2.53

32

BOLT

09103-06214

$2.57

33

BOLT

09103-06224

$2.68

34

GASKET (5.8X13X1.2)

09168-06023

$2.01
