2009 Suzuki VS1400 AIR Vent Valve Diagram

← All diagrams

Find the part on the AIR Vent Valve diagram for your 2009 Suzuki VS1400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

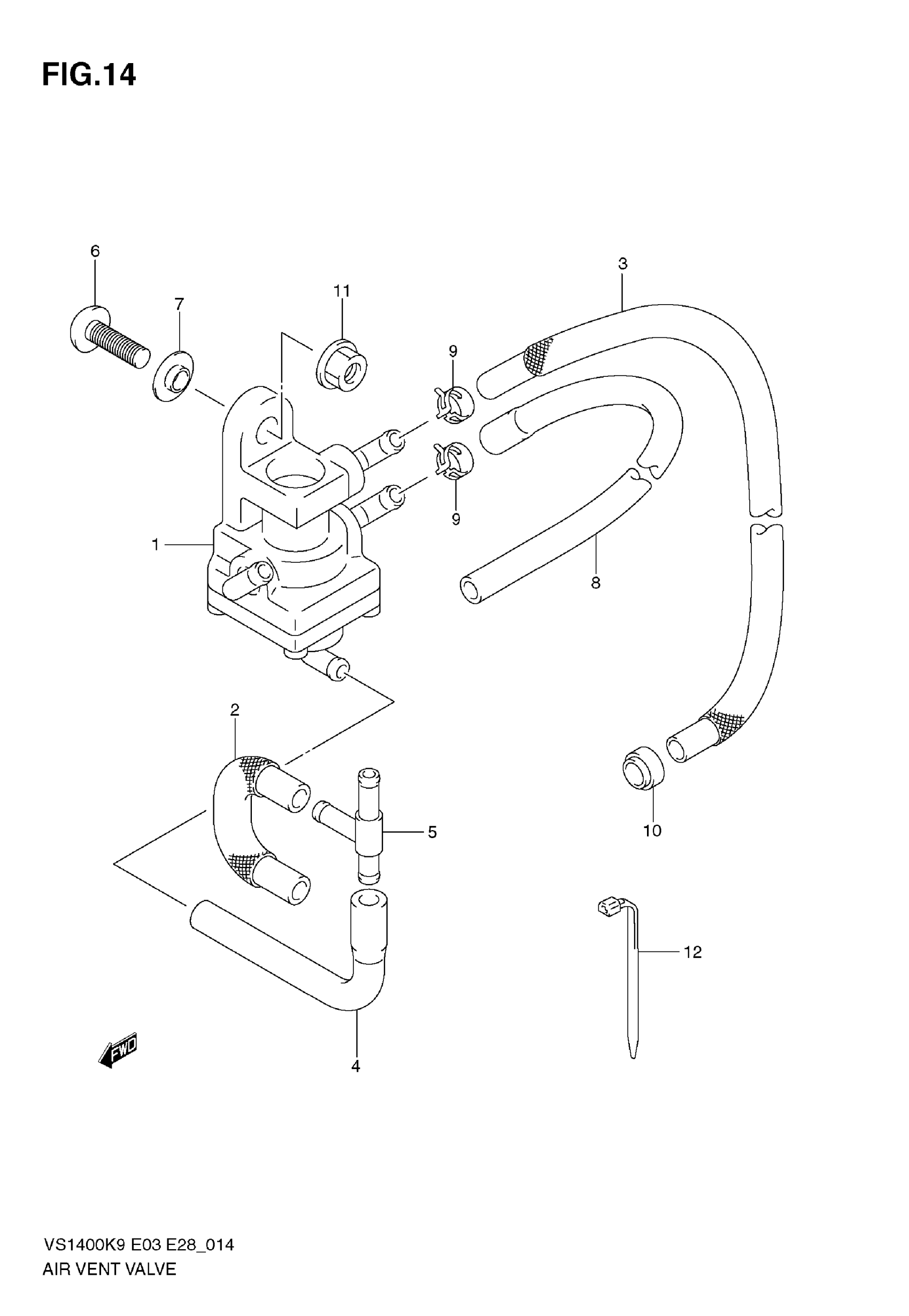

2009 Suzuki VS1400 AIR Vent Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, AIR VENT

13590-38B00

1
Out of stock

2

HOSE, INTAKE VACUUM

13680-38B00

1
Out of stock

3

HOSE, AIR VENT VALVE

13680-38B11

—
Out of stock

4

HOSE, AIR VENT VALVE VACUUM

13682-38B00

1
Out of stock

5

3WAY

09367-04007

1
Out of stock

6

BOLT, 6X32

09139-06063

1
Out of stock

7

WASHER

09169-06041

1

$2.35

In stock

8

HOSE,5X10X600 | L:600!440 This part replaces 09355-50105-600.

44421-13ER0

1
Out of stock

9

CLIP (ID:9.4,H:8)

09401-09403

3
Out of stock

10

CLIP

09401-10411

1
Out of stock

11

NUT

08316-1006B

1
Out of stock

12

CLAMP

09407-18402

1
Out of stock
