2008 Suzuki VS1400 OIL Pump - Fuel Pump Diagram

← All diagrams

Find the part on the OIL Pump - Fuel Pump diagram for your 2008 Suzuki VS1400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

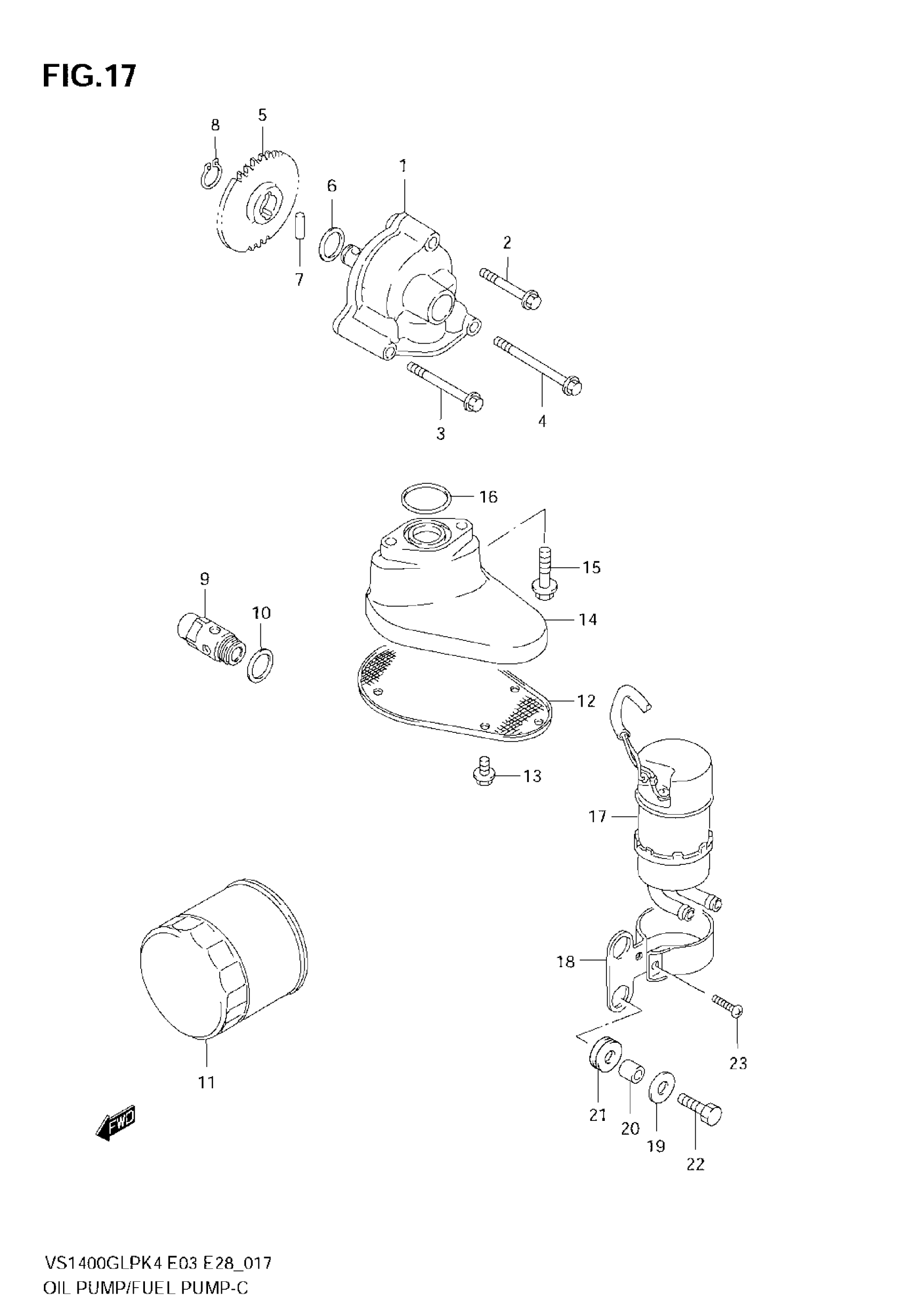

2008 Suzuki VS1400 OIL Pump - Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, OIL

16400-38B00

1
Out of stock

2

BOLT

01547-0645B

1

$2.92

In stock

3

BOLT

01547-0655B

1

$2.92

In stock

4

BOLT

01547-0665B

1
Out of stock

5

GEAR, OIL PUMP DRIVEN (NT:31)

16331-38B01

1
Out of stock

6

WASHER

09181-12158

1

$2.41

In stock

7

PIN

09261-05006

1

$1.83

In stock

8

CIRCLIP This part replaces 08331-31126.

08331-3112A

1
Out of stock

9

VALVE ASSY, OIL RELIEF | MODEL K4/K5

16440-24A01

1
Out of stock

9

1

$71.63

In stock

10

GASKET

09168-16002

1
Out of stock

11

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

1
Out of stock

12

STRAINER, OIL

16520-38B10

1
Out of stock

13

BOLT | MODEL K4/K5/K6 This part replaces 01550-05103.

01550-0510A

4
Out of stock

13

BOLT | MODEL K7/K8

01550-0510A

4
Out of stock

14

HOLDER, OIL STRAINER

16525-38B10

1
Out of stock

15

BOLT | MODEL K4/K5/K6 This part replaces 01550-06253.

01550-0625A

2
Out of stock

15

BOLT | MODEL K7/K8

01550-0625A

2
Out of stock

16

O RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

17

PUMP ASSY,FUEL This part replaces 15100-38A00.

15100-38A01

1
Out of stock

18

BRACKET, FUEL PUMP

15110-38B01

1
Out of stock

19

.WASHER (6.5X20X1.6)

09160-06088

1

$1.80

In stock

20

SPACER (6.5X10X9.4)

09180-06286

2
Out of stock

21

CUSHION

09320-10015

2
Out of stock

22

BOLT

01500-0625B

2

$2.87

In stock

23

SCREW

02142-04167

1
Out of stock
