2008 Suzuki VS1400 Fuel Cock Diagram

← All diagrams

Find the part on the Fuel Cock diagram for your 2008 Suzuki VS1400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

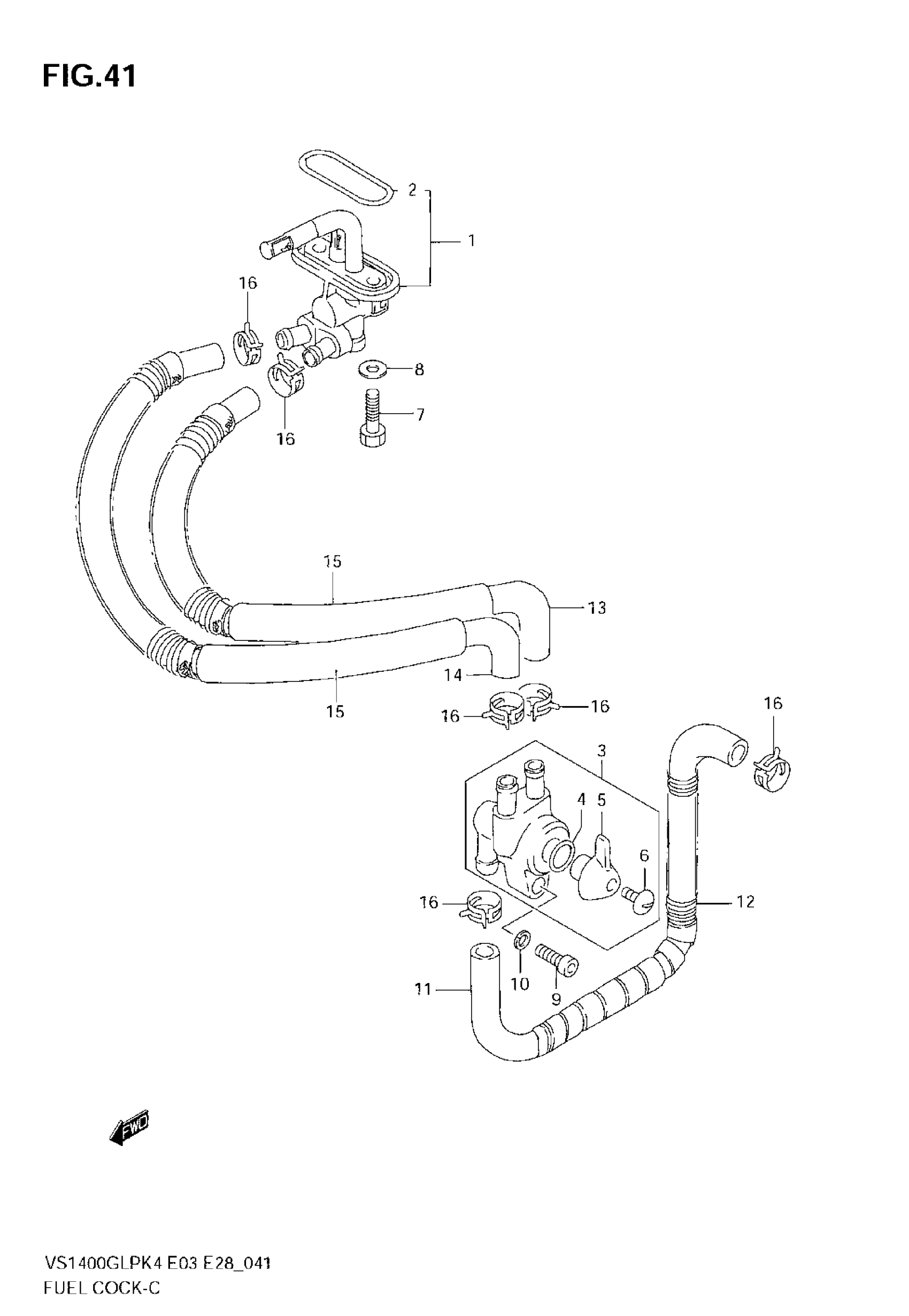

2008 Suzuki VS1400 Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COCK ASSY,FUEL | Includes Item(s) 2 This part replaces 44300-38B02.

44300-38B03

1
Out of stock

2

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

1
Out of stock

3

COCK ASSY, FUEL NO.2 | Includes Item(s) 4 - 6

44300-38B13

1
Out of stock

4

O RING, LEVER

44353-12C01

1

$7.41

In stock

5

LEVER

44306-38A00

1
Out of stock

6

SCREW

44307-38A00

1
Out of stock

7

BOLT This part replaces 09128-06006.

09128-06057

2
Out of stock

8

GASKET

09168-06026

2
Out of stock

9

BOLT, FUEL COCK NO.2

07130-0512B

1
Out of stock

10

LOCK WASHER

08321-0105B

1
Out of stock

11

HOSE COMP,FUEL | MODEL K4/K5/K6/K7 This part replaces 44420-38B01.

44420-38BR0

1
Out of stock

11

HOSE COMP,FUEL | MODEL K8 This part replaces 44420-38BA0.

44420-38BR0

1
Out of stock

12

SPRING

09440-14026

1
Out of stock

13

HOSE,FUEL | MODEL K4/K5/K6/K7 This part replaces 44430-38B03.

44430-38BR0

1
Out of stock

13

HOSE, FUEL NO.1 | MODEL K8

44430-38BA0

1
Out of stock

14

HOSE, FUEL NO.2 | MODEL K4/K5/K6/K7 This part replaces 44430-38B12.

44430-38BS0

1
Out of stock

14

HOSE, FUEL NO.2 | MODEL K8

44430-38BB0

1
Out of stock

15

TUBE, FUEL HOSE | E28

44311-17E01

2
Out of stock

15

TUBE, FUEL HOSE | E3,E33

44423-44B00

2
Out of stock

16

CLIP, FUEL HOSE

09401-11415

6
Out of stock
