2008 Suzuki VS1400 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2008 Suzuki VS1400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

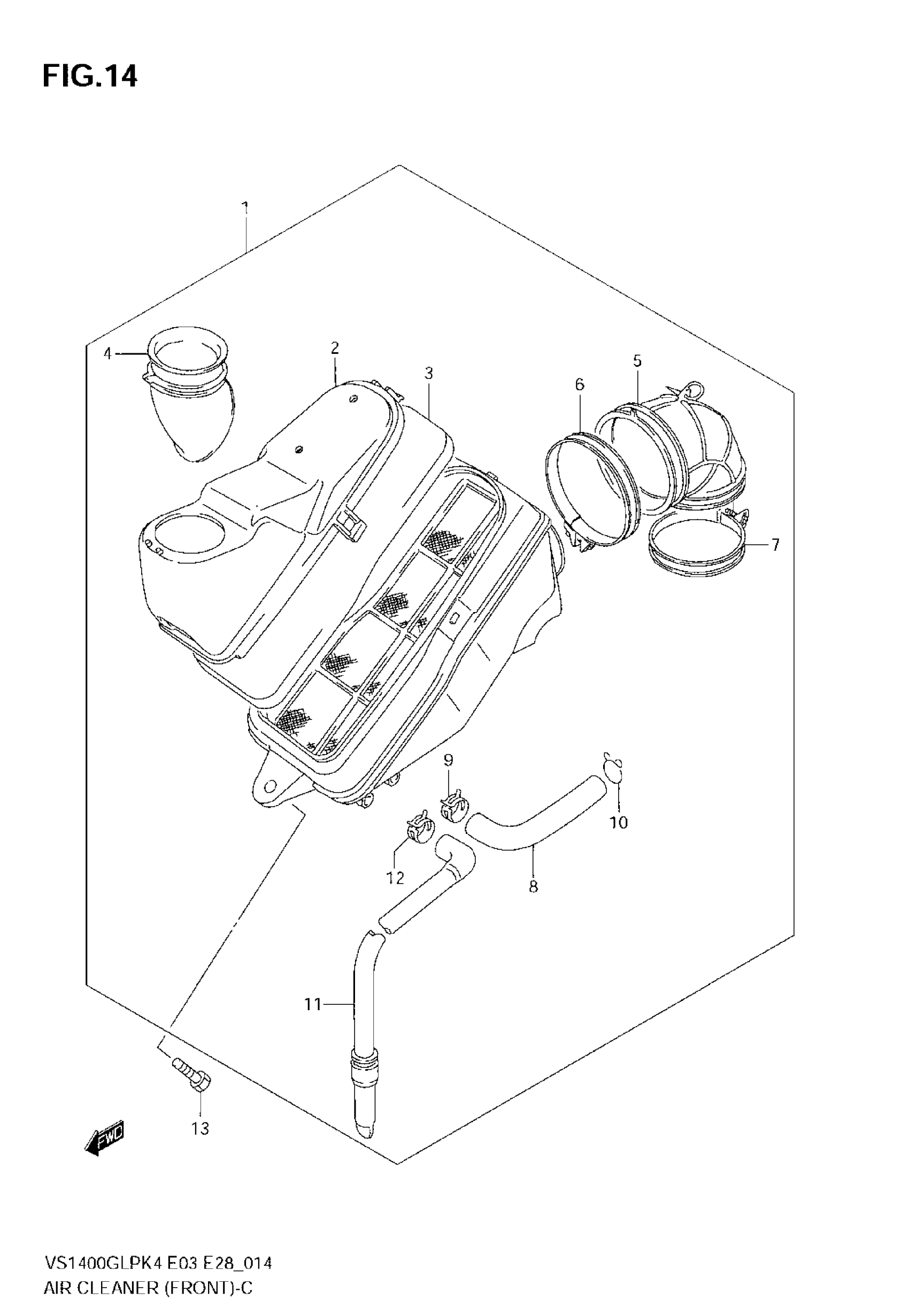

2008 Suzuki VS1400 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AI | Includes Item(s) 2 - 12 This part replaces 13700-38B20.

13700-38B21

1
Out of stock

2

CAP

13740-38B01

1
Out of stock

3

FILTER

13781-38B10

1
Out of stock

4

TUBE,INLET This part replaces 13891-38B00.

13891-38B01

1
Out of stock

5

TUBE OUTLET This part replaces 13881-38B00.

13881-38B01

1
Out of stock

6

CLAMP

09402-72203

1
Out of stock

7

CLAMP

09402-58208

1
Out of stock

8

TUBE, BREATHER

13854-38B00

1
Out of stock

9

CLAMP

09401-15407

1
Out of stock

10

CLIP

09401-14301

1
Out of stock

11

TUBE,DRAIN This part replaces 13870-21628.

13870-21629

1
Out of stock

12

CLAMP

09401-13417

1
Out of stock

13

BOLT

01500-06207

2
Out of stock
← OIL Cooler AIR Cleaner →
