2008 Suzuki VS1400 Carburetor Diagram

← All diagrams

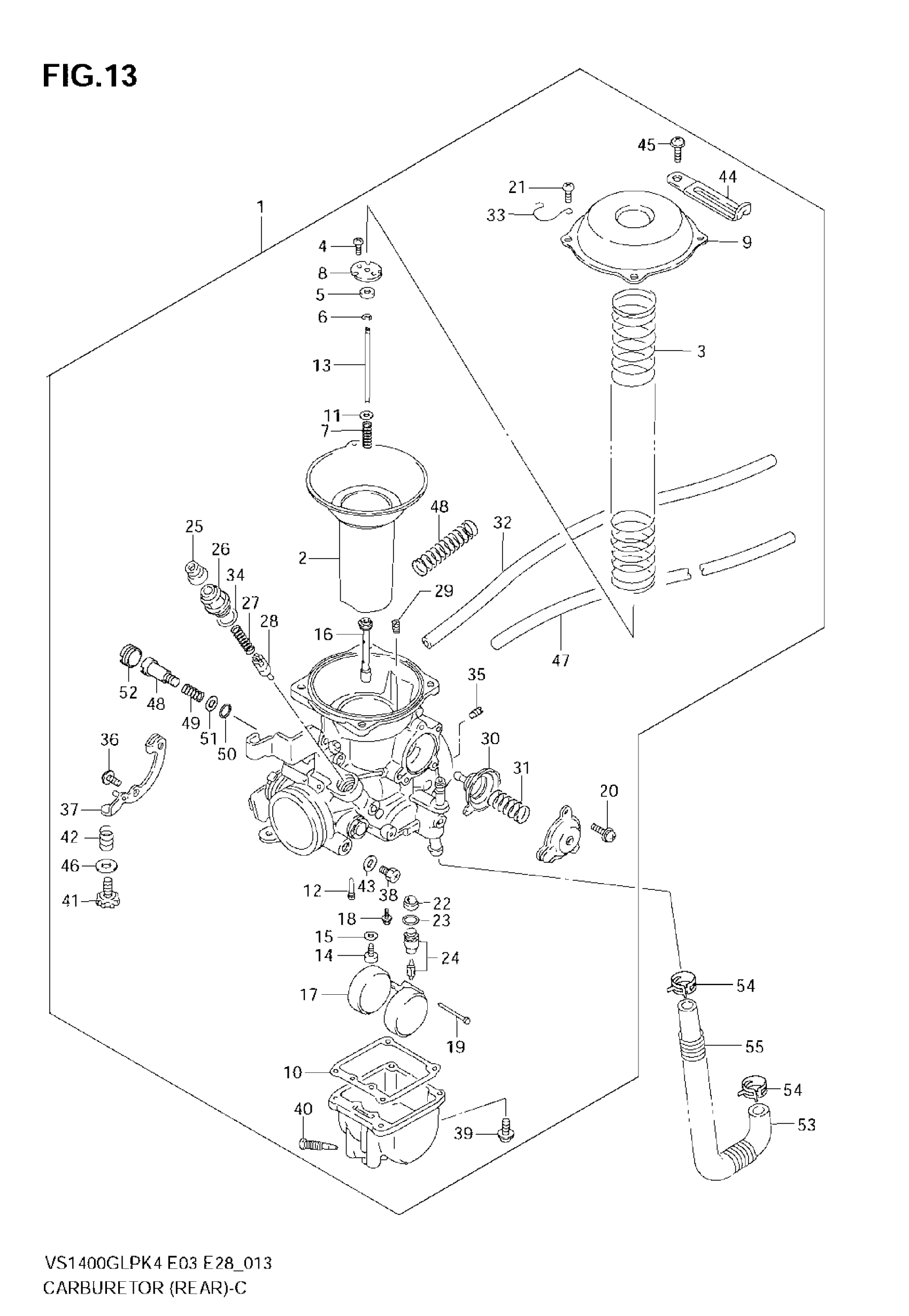

Find the part on the Carburetor diagram for your 2008 Suzuki VS1400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki VS1400 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,116.68

In stock

1

CARBURETOR ASSY, REAR | MODEL K4/K5 E33

13220-38BF0

1
Out of stock

1

CARBURETOR ASSY, REAR | MODEL K6/K7/K8 E33; Includes Item(s) 2 - 52

13220-38BG1

—
Out of stock

2

DIAPHRAGM ASSY

13500-38A10

1

$219.28

In stock

3

SPRING

13503-05A10

1
Out of stock

4

SCREW

02112-33073

2

$2.83

In stock

5

RING

13387-47010

1

$7.41

In stock

6

E RING

13394-10010

1

$4.76

In stock

7

SPRING

13388-44030

1

$9.17

In stock

8

PLATE

13389-37400

1

$7.98

In stock

9

COVER

13502-45CE0

1

$46.33

In stock

10

GASKET

13251-38A10

1

$7.88

In stock

11

WASHER

13382-44030

1

$3.81

In stock

12

JET, PILOT (55)

09492-55014

1

$18.87

In stock

13

NEEDLE, JET (5D35-1)

13383-38B00

1

$20.82

In stock

14

.JET, MAIN (#140)

09491-28010

1

$12.38

In stock

15

WASHER

13382-03110

1

$2.92

In stock

16

JET, NEEDLE (P-2M)

09494-00895

1

$58.58

In stock

17

FLOAT

13252-23010

1

$20.58

In stock

18

SCREW

13602-05A10

1

$3.55

In stock

19

PIN

13254-92311

1

$2.41

In stock

20

SCREW

13602-19B50

2

$3.42

In stock

21

3

$1.15

In stock

22

FILTER

13376-19F00

1

$10.26

In stock

23

O RING

13374-35C00

1

$5.97

In stock

24

VALVE ASSY, NEEDLE

13370-39A00

1

$60.21

In stock

25

1

$4.91

In stock

26

HOLDER, GUIDE

13418-43410

1

$7.20

In stock

27

SPRING

13417-22010

1

$3.55

In stock

28

PLUNGER ASSY

13411-01400

1

$13.27

In stock

29

JET, PILOT AIR (1.55)

09493-31001

1

$18.33

In stock

30

1

$53.07

In stock

31

SPRING

13481-38B40

1

$6.40

In stock

33

CLIP

13692-02500

1

$9.50

In stock

34

.O RING (16) This part replaces 13278-47090.

13278-47091

1
Out of stock

35

JET, PILOT AIR (40)

09492-40018

1

$19.58

In stock

36

SCREW

13602-05A30

1

$4.92

In stock

37

LEVER ASSY

13554-45C20

1

$46.98

In stock

38

SCREW

13605-73000

1

$13.50

In stock

39

SCREW

13601-04148

4
Out of stock

40

1

$4.97

In stock

41

ADJUSTER

13267-39E50

1

$16.03

In stock

42

SPRING

13271-93011

1

$5.83

In stock

43

WASHER

13249-78100

1

$3.72

In stock

44

1

$1.89

In stock

45

1

$1.79

In stock

46

WASHER

13277-37100

1

$2.43

In stock

47

1

$39.50

In stock

48

PILOT (1,1/16)

13279-47070

1

$13.33

In stock

49

.SPRING (NT:45)

13268-47070

1

$4.33

In stock

50

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

51

WASHER

13291-29900

1
Out of stock

52

PLUG

13281-05A00

1

$4.58

In stock

53

1

$17.49

In stock

54

CLIP

09401-11415

2

$2.36

In stock

55

SPRING

09440-14030

1

$6.78

In stock
