1986 Kawasaki Voyager XII Swing ARM Diagram

← All diagrams

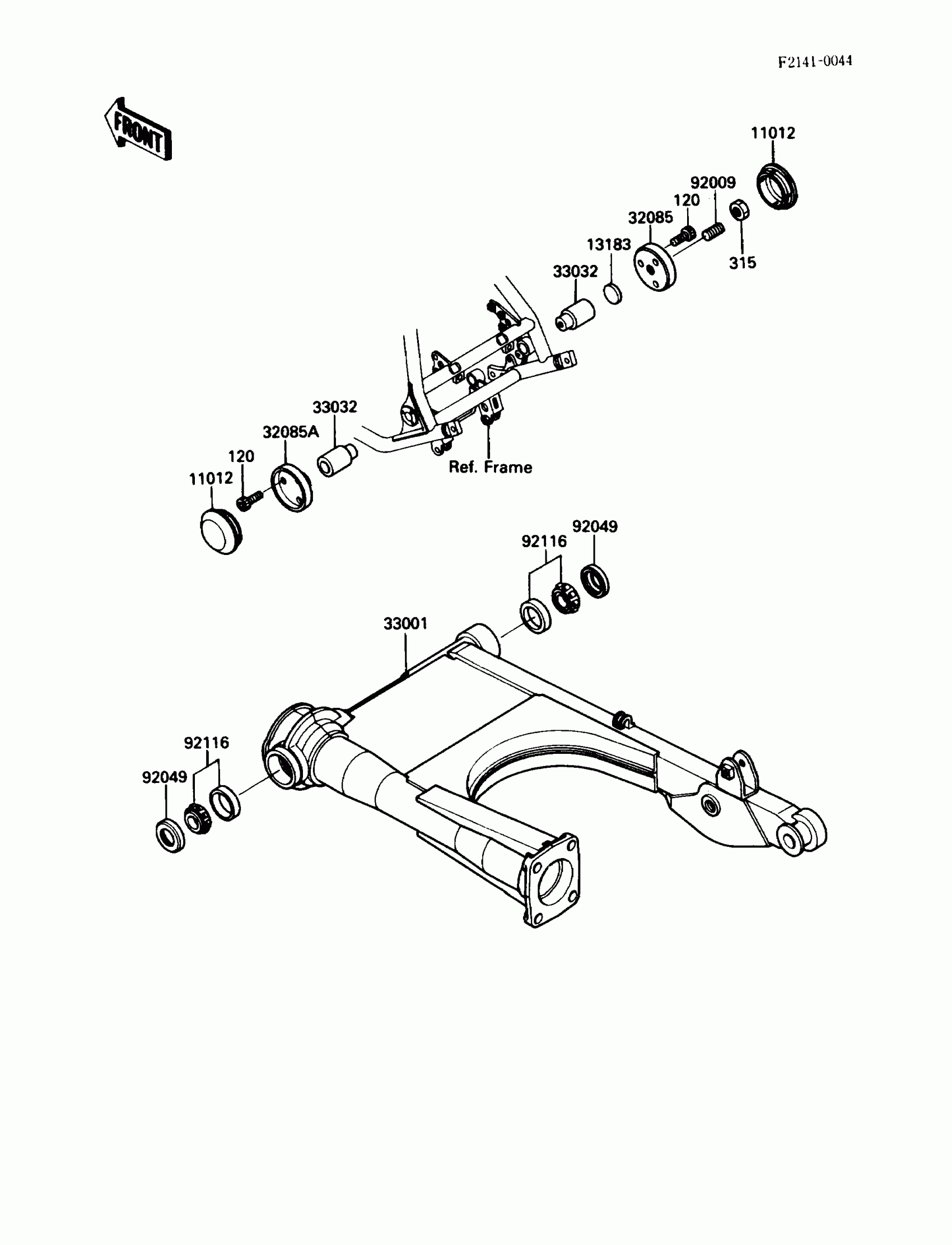

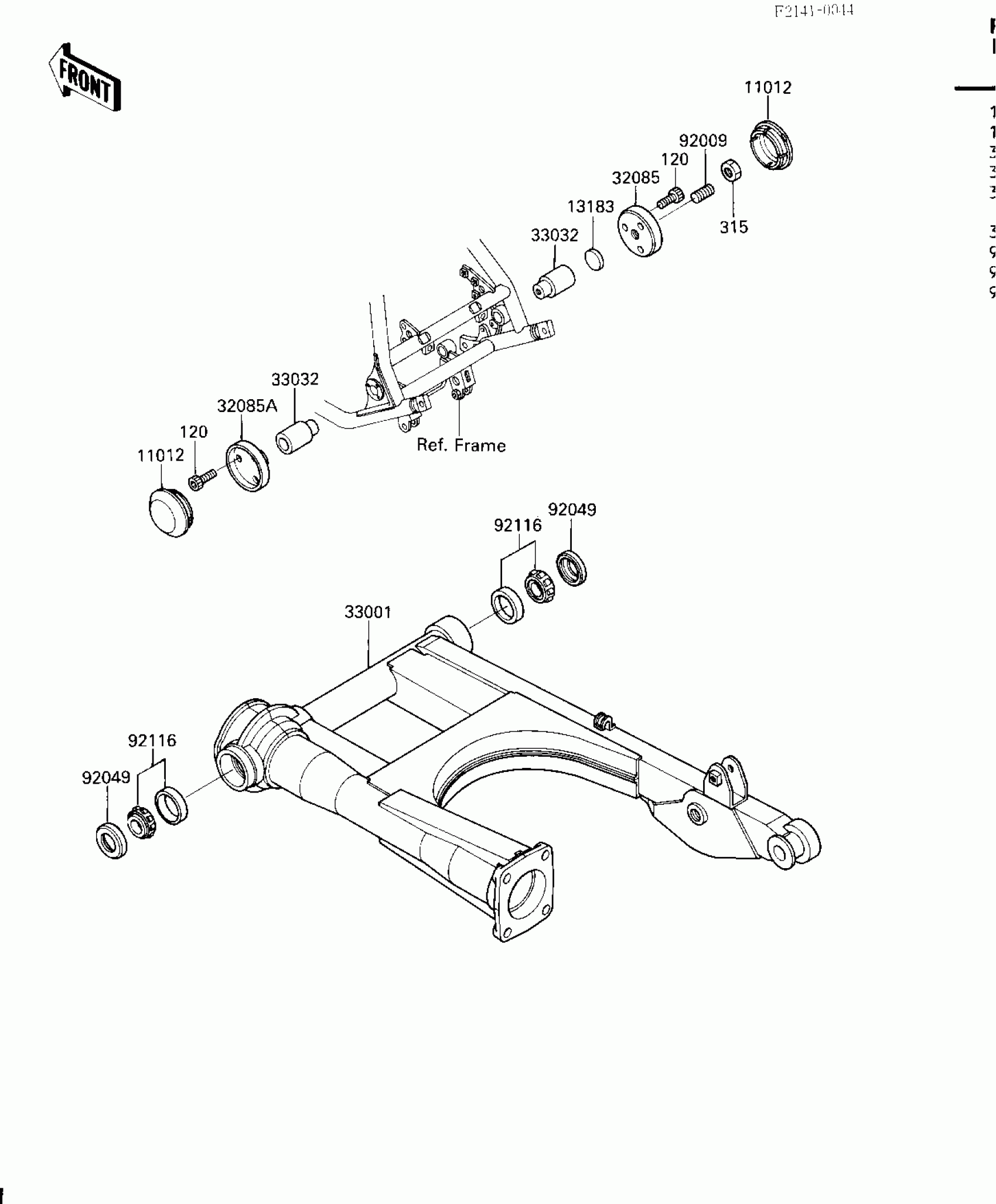

Find the part on the Swing ARM diagram for your 1986 Kawasaki Voyager XII, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager XII Swing ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SWING ARM

11012-1433

1

$20.32

In stock

13183

PLATE,25X4.5

13183-1004

1

$5.66

In stock

32085

1

$56.58

In stock

32085A

1

$70.20

In stock

33001

ARM-COMP-SWING

33001-1257

1

$436.03

In stock

33032

SHAFT-SWING ARM

33032-1120

1

$41.72

In stock

92009

SCREW,SOCKET,12X22

92009-1374

1
Out of stock

92049

SEAL-OIL,26406

92049-1030

1
Out of stock

92116

1

$34.73

In stock

120

BOLT-SOCKET,6X12

120S0612

1
Out of stock

315

NUT-HEX-FINE

315C1200

1
Out of stock
