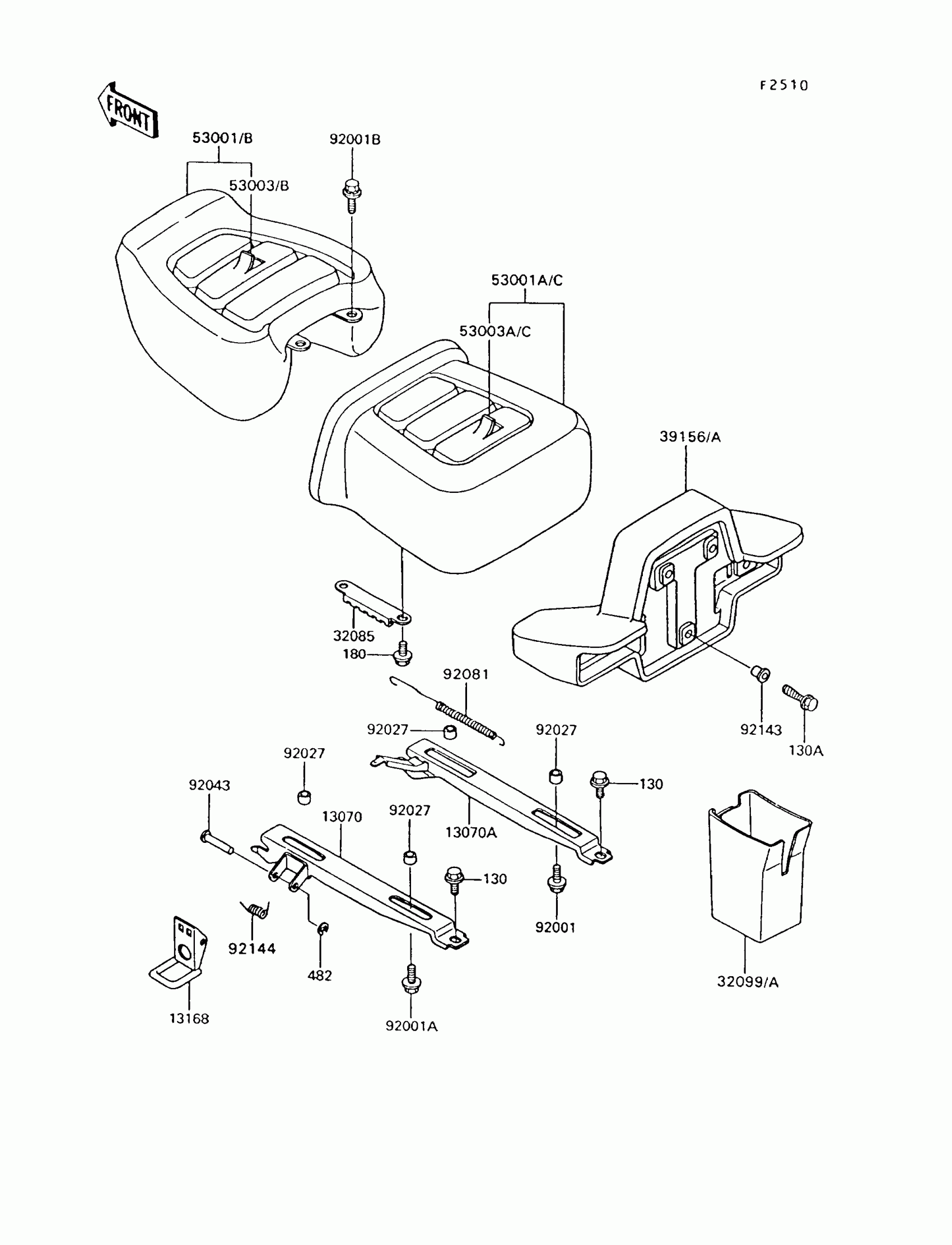

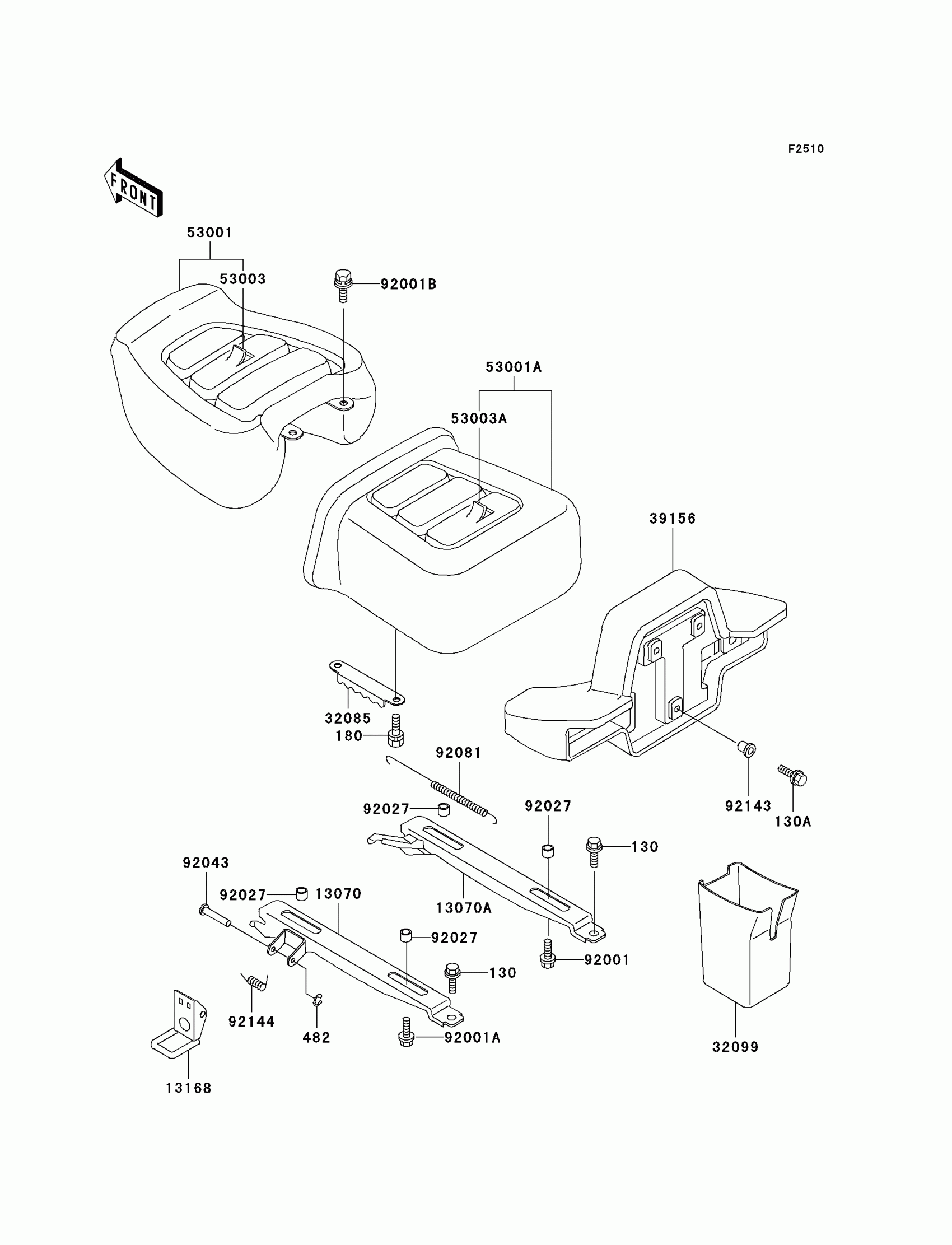

Find the part on the Seat diagram for your 1986 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager Xii Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,REAR SEAT,LH

13070-1147

1

$41.74

In stock

13070A

GUIDE,REAR SEAT,RH

13070-1148

1

$41.74

In stock

13168

LEVER,REAR SEAT

13168-1302

1

$15.54

In stock

32085

STOPPER,SEAT

32085-1248

1

$10.19

In stock

32099

CASE,REAR AUDIO CONTROL

32099-1091

1
Out of stock

39156

PAD

39156-1061

1

$389.88

In stock

53001

SEAT-ASSY,FR

53001-1447

1

$428.72

In stock

53001A

SEAT-ASSY,RR

53001-1489

1

$543.70

In stock

53003

LEATHER,FRONT SEAT

53003-1153

1

$363.49

In stock

53003A

LEATHER,REAR SEAT

53003-1154

1

$363.49

In stock

92001

BOLT,6X20

92001-1826

1

$3.53

In stock

92001A

BOLT,W/P,6X16

92001-1860

1

$3.85

In stock

92001B

BOLT,W/SP,6X14

92001-1862

1

$4.25

In stock

92027

COLLAR,6.3X10X5

92027-164

1

$5.22

In stock

92043

PIN,6X35.3

92043-1109

1

$7.49

In stock

92143

COLLAR,L=6.5

92143-1025

1

$4.93

In stock

92144

SPRING,SEAT RETURN

92081-1950

1

$10.08

In stock

92144A

SPRING,SEAT LEVER

92144-1038

1

$4.08

In stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130A

BOLT-FLANGED,6X20

130C0620

1
Out of stock

180

BOLT 6X12

180B0612

1
Out of stock

482

1

$1.20

In stock
