1991 Kawasaki Voyager Xii Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 1991 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

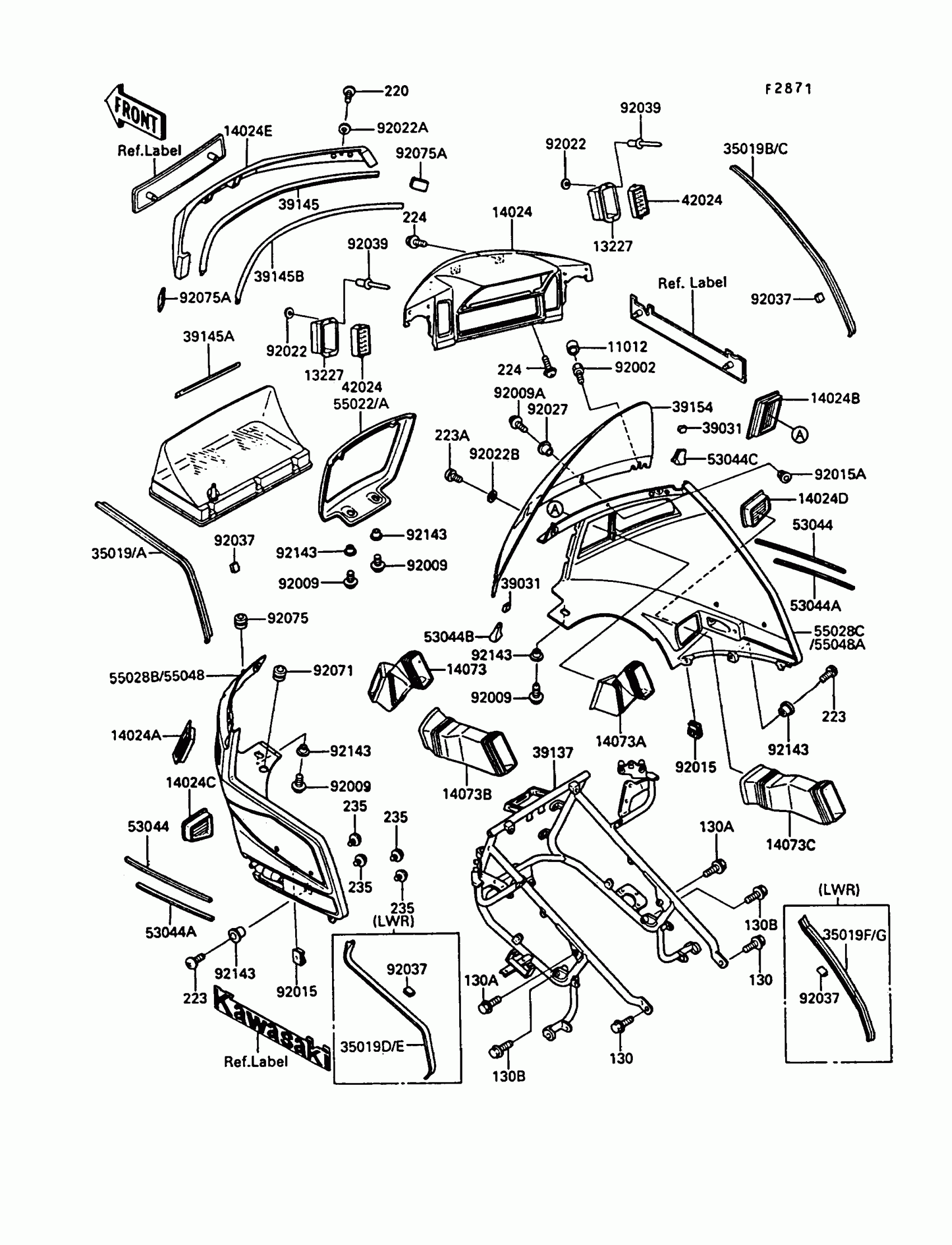

1991 Kawasaki Voyager Xii Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1550

1
Out of stock

13227

HOUSING,SHUTTER

13227-1012

1
Out of stock

14024

COVER,METER

14024-1186

1
Out of stock

14024A

COVER,LOUVER,UPP,LH

14024-1192

1
Out of stock

14024B

COVER,LOUVER,UPP,RH

14024-1193

1
Out of stock

14024C

COVER,LOUVER,LWR,LH

14024-1194

1
Out of stock

14024D

COVER,LOUVER,LWR,RH

14024-1195

1
Out of stock

14024E

COVER,WINDSHIELD

14024-1280

1
Out of stock

14073

DUCT,COWLING,UPP,LH

14073-1245

1
Out of stock

14073A

DUCT,COWLING,UPP,RH

14073-1246

1
Out of stock

14073B

DUCT,COWLING,LWR,LH

14073-1247

1
Out of stock

14073C

DUCT,COWLING,LWR,RH

14073-1248

1
Out of stock

35019

FLAP,UPP,LH,M.C.SILVER

35019-1201-GA

1
Out of stock

35019B

FLAP,UPP,RH,M.C.SILVER

35019-1202-GA

1
Out of stock

35019D

FLAP,LWR,LH,M.C.SILVER

35019-1203-GA

1
Out of stock

35019F

FLAP,LWR,RH,M.C.SILVER

35019-1204-GA

1
Out of stock

39031

CAP-END,TRIM

39031-1058

1
Out of stock

39137

STAY-COMP,COWLING

39137-1057

1
Out of stock

39145

TRIM-SEAL,WINDSHIELD COVER

39145-1072

1
Out of stock

39145A

TRIM-SEAL,METER COVER

39145-1081

1
Out of stock

39145B

TRIM-SEAL,METER COVER

39145-1082

1
Out of stock

39154

WINDSHIELD

39154-1101

1
Out of stock

42024

SHUTTER,LOUVER

42024-1002

1
Out of stock

53044

TRIM,COWLING SIDE,UPP

53044-1150

1
Out of stock

53044A

TRIM,COWLING SIDE,LWR

53044-1151

1
Out of stock

53044B

TRIM,WINDSHIELD,LH

53044-1181

1
Out of stock

53044C

TRIM,WINDSHIELD,RH

53044-1182

1
Out of stock

55022

COVER-HEAD LAMP,M.C.SILVER

55022-1054-GA

1
Out of stock

55048A

COWLING.,UPP,RH,BRO/SIL/BLA

55048-5352-GH

1
Out of stock

92002

BOLT,6X25

92002-1830

1
Out of stock

130

BOLT-FLANGED

130D0812

1
Out of stock

130A

BOLT-FLANGED,8X35

130D0835

1
Out of stock

130B

BOLT-FLANGED,8X50

130D0850

1
Out of stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

223

SCREW-PAN-WS-CROS

223C0616

1
Out of stock

223A

SCREW-PAN-WS-CROS,6X25

223C0625

1
Out of stock

224

SCREW-PAN-WP-CROS

224C0510

1
Out of stock

235

SCREW-PAN-WP-CROS

235B0408

1
Out of stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92009A

SCREW,5X14

92009-1427

1
Out of stock

92015

NUT,5MM,COWLING

92015-1343

1
Out of stock

92015A

NUT,5MM

92015-1710

1
Out of stock

92022

WASHER,3.3X8X0.5

92022-1516

1
Out of stock

92022A

WASHER,5.3X10X0.8

92022-1653

1
Out of stock

92022B

WASHER,6.5MM

92022-1808

1
Out of stock

92027

COLLAR

92027-194

1
Out of stock

92037

CLAMP,FLAP

92037-1943

1
Out of stock

92039

RIVET

92039-1041

1
Out of stock

92071

GROMMET,AIR FILTER

92071-1042

1
Out of stock

92075

DAMPER

92075-1629

1
Out of stock

92075A

DAMPER

92075-1883

1
Out of stock

92143

COLLAR,L=6.5

92143-1025

1
Out of stock

55048

COWLING.,UPP,LH,BRO/SIL/BLA

55048-5351-GH

1
Out of stock
