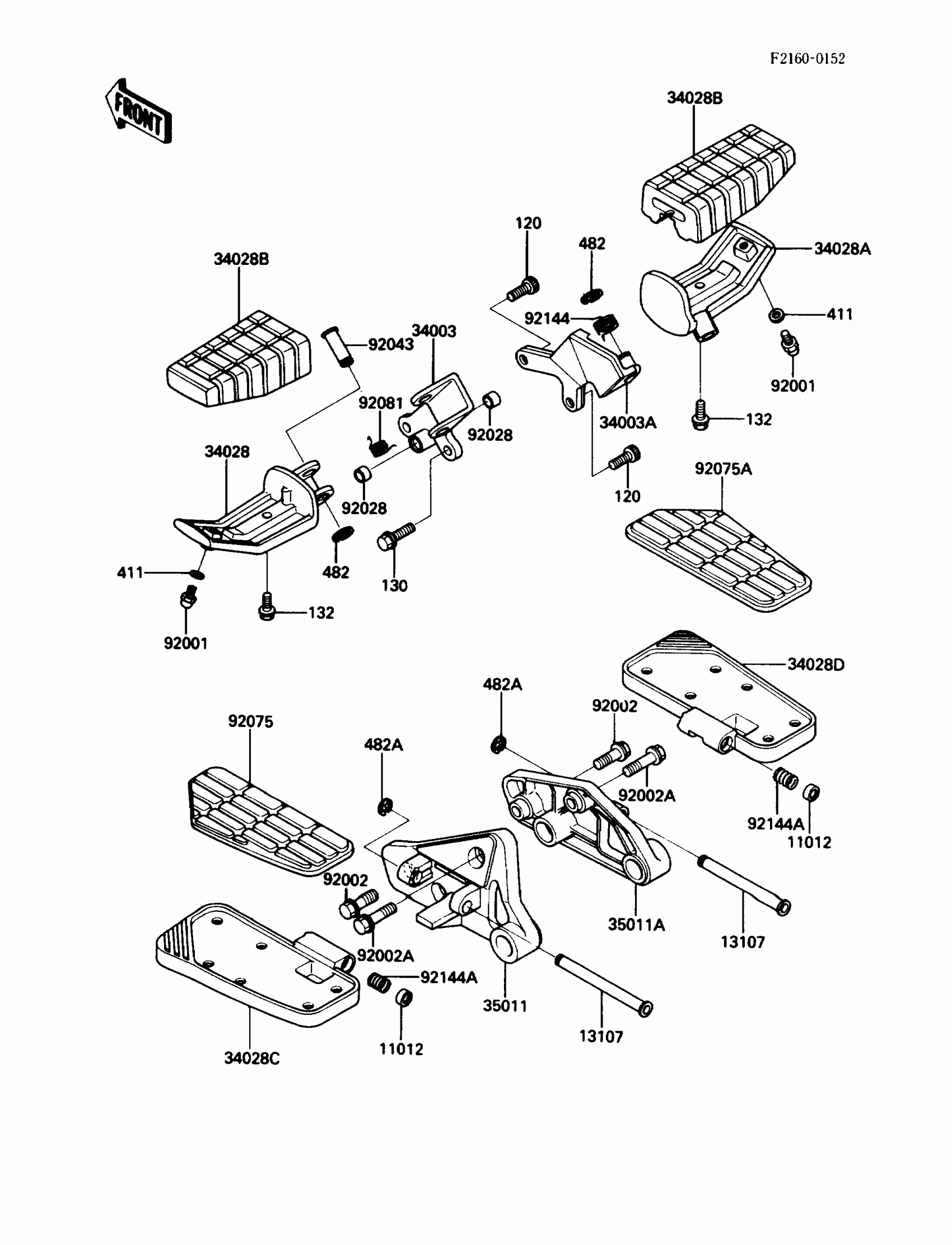

Kawasaki Voyager XII Footrest Diagram

#

Description
Price

120

BOLT-SOCKET

120S0814

Unavailable

130

BOLT-FLANGED,8X20

130J0820

Unavailable

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.66

482A

CIRCLIP-TYPE-E

482L0200

Unavailable

11012

CAP

11012-1498

$5.54

13107

SHAFT,REAR STEP

13107-1174

$15.71

34003

HOLDER-STEP,FR,LH

34003-1253

$77.13

34003A

HOLDER-STEP,FR,RH

34003-1254

$136.60

34028

STEP,FR,LH

34028-1183

$81.38

34028A

STEP,FR,RH

34028-1184

$77.90

34028B

STEP,FR,RUBBER

34028-1205

$35.98

34028C

STEP,RR,LH

34028-1231

$127.57

34028D

STEP,RR,RH

34028-1232

$114.26

35011

STAY,MUFFLER,LH

35011-1278

$219.16

35011A

STAY,MUFFLER,RH

35011-1279

$219.16

92001

BOLT,BANK SENSOR

92001-1905

$7.22

92002

BOLT,FLANGED,10X25

92002-1828

$8.54

92002A

BOLT,FLANGED,10X35

92002-1829

$7.76

92028

BUSHING,13X15X20

92028-1251

$12.03

92043

PIN,12X37

92043-1144

Unavailable

92075

DAMPER,REAR STEP,LH,RUBBER

92075-1803

$47.33

92075A

DAMPER,REAR STEP,RH,RUBBER

92075-1804

$56.98

92081

SPRING,STEP RETURN,RH

92081-1587

$4.88

92144

SPRING,STEP RETURN

92081-1956

$7.90

92144A

SPRING,REAR STEP

92081-1957

$5.15
