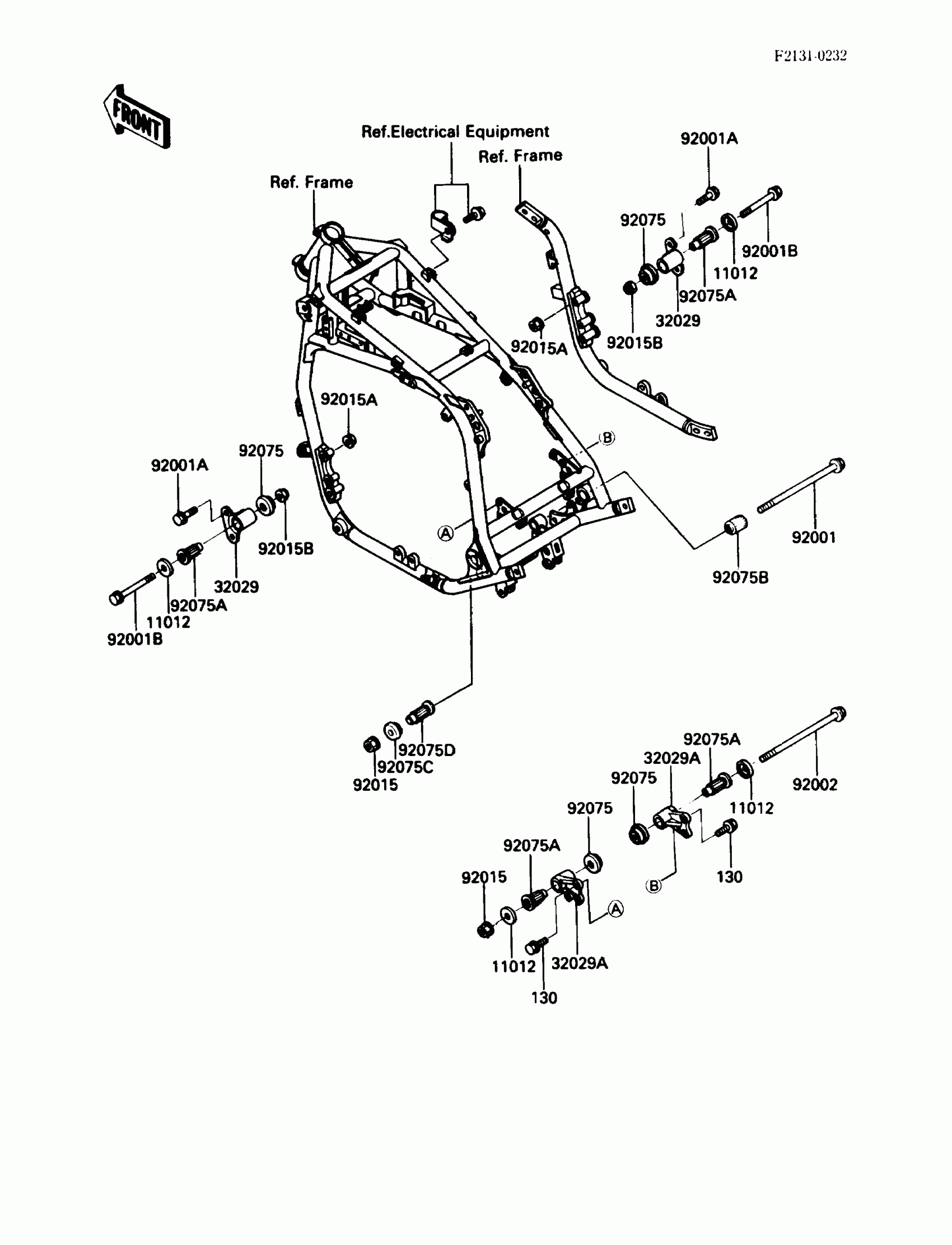

Kawasaki Voyager XII Frame Fitting Diagram

Description

Price

130

BOLT-FLANGED,8X20

130J0820

Unavailable

11012

CAP,ENGINE BRACKET

11012-1228

$7.49

32029

BRACKET-ENGINE,FR

32029-1445

$160.09

32029A

BRACKET-ENGINE,RR,UPP

32029-1446

$42.11

92001

BOLT,FLANGED,10X255,BLACK

92001-1566

$24.10

92001A

BOLT,FLANGED,8X45

92001-1613

$4.61

92001B

BOLT,FLANGED,10X105,BLACK

92001-1751

$8.44

92002

BOLT,10X300

92002-1196

$23.73

92015

NUT,FLANGED,10MM

92015-1180

$3.43

92015A

NUT,FLANGED,8MM,BLACK

92015-1183

$4.27

92015B

NUT,LOCK,10MM,BLACK

92015-1189

$5.84

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$16.49

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

$31.41

92075B

DAMPER,ENGINE MOUNT

92075-1733

$35.80

92075C

DAMPER,ENGINE MOUNT

92075-1738

Unavailable

92075D

DAMPER,ENGINE MOUNT,MAIN

92075-1739

$29.30
