1991 Kawasaki Voyager Xii Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1991 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

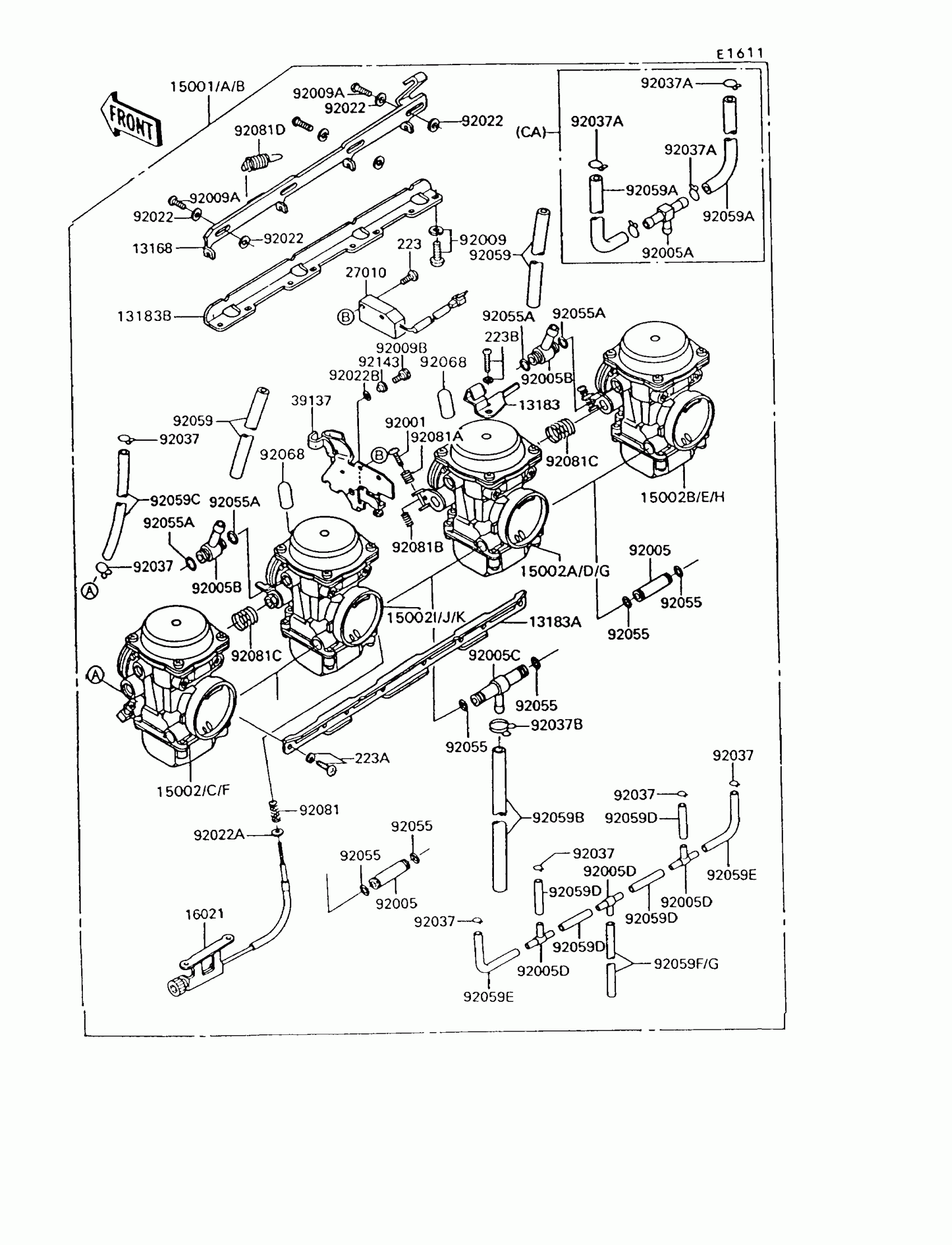

1991 Kawasaki Voyager Xii Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER,STARTER

13168-1337

1
Out of stock

13183

PLATE,STARTER CABLE

13183-1033

1
Out of stock

13183A

PLATE,CARBURTOR STAY,UPP

13183-1049

1
Out of stock

13183B

PLATE,CARBURETOR STAY,LWR,6MM

13183-1050

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1101

1
Out of stock

27010

SWITCH,CRUISE CANCEL

27010-1237

1
Out of stock

39137

STAY-COMP

39137-1058

1
Out of stock

92001

BOLT,THROTTLE ADJUST

92001-1998

1
Out of stock

92005

FITTING,FUEL,I-TYPE

92005-1109

1
Out of stock

92005B

FITTING,T-TYPE

92005-1125

1
Out of stock

92005C

FITTING,T-TYPE

92005-1148

1
Out of stock

92005D

FITTING,T-TYPE

92005-1151

1
Out of stock

92009

SCREW,6X16

92009-1129

1
Out of stock

92009A

SCREW

92009-1262

1
Out of stock

92009B

SCREW

92009-1483

1
Out of stock

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

1
Out of stock

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

1
Out of stock

92022B

WASHER

92022-1902

1
Out of stock

92037

CLAMP,TUBE

92037-1142

1
Out of stock

92037B

CLAMP,FUEL TUBE

92037-1826

1
Out of stock

92055

RING-O

92055-1004

1
Out of stock

92055A

RING-O

92055-1223

1
Out of stock

92059B

TUBE,5.3X10.5X210

92059-1740

1
Out of stock

92059C

TUBE,3X7X420

92059-1741

1
Out of stock

92059D

TUBE,3.5X6.5X40

92059-1746

1
Out of stock

92059E

TUBE,3.5X6.5X90

92059-1747

1
Out of stock

92081

SPRING,THROTTLE STOP SCREW

92081-1617

1
Out of stock

92081A

SPRING

92081-1620

1
Out of stock

92081B

SPRING,THROTTLE ADJUST LWR

92081-1621

1
Out of stock

92081C

SPRING,THROTTLE ADJUST CNT

92081-1622

1
Out of stock

92081D

SPRING,STARTER LEVER

92081-1913

1
Out of stock

223

SCREW-PAN-WS-CROS,4X16

223C0416

1
Out of stock

223A

SCREW-PAN-WS-CROS,5X10

223C0510

1
Out of stock

223B

SCREW-PAN-WS-CROS,4X10

223D0410

1
Out of stock

92143

COLLAR

92143-1146

1
Out of stock

15001

CARBURETOR-ASSY

15001-1371

1
Out of stock

15001A

CARBURETOR-ASSY

15001-1372

1
Out of stock

15001B

CARBURETOR-ASSY

15001-1373

1
Out of stock

15002

CARBURETOR,LH,OUTSIDE

15002-1370

1
Out of stock

15002A

CARBURETOR,RH,INSIDE

15002-1372

1
Out of stock

15002B

CARBURETOR,RH,OUTSIDE

15002-1373

1
Out of stock

15002C

CARBURETOR,LH,OUTSIDE

15002-1374

1
Out of stock

15002D

CARBURETOR,RH,INSIDE

15002-1376

1
Out of stock

15002E

CARBURETOR,RH,OUTSIDE

15002-1377

1
Out of stock

15002F

CARBURETOR,LH,OUTSIDE

15002-1378

1
Out of stock

15002G

CARBURETOR,RH,INSIDE

15002-1380

1
Out of stock

15002H

CARBURETOR,RH,OUTSIDE

15002-1381

1
Out of stock

15002I

CARBURETOR,LH,INSIDE

15002-1506

1
Out of stock

15002J

CARBURETOR,LH,INSIDE

15002-1507

1
Out of stock

15002K

CARBURETOR,LH,INSIDE

15002-1536

1
Out of stock

92005A

FITTING,T-TYPE

92005-1119

1
Out of stock

92037A

CLAMP,TUBE

92037-1194

1
Out of stock

92059

TUBE,6.5X9.5X260

92059-1598

1
Out of stock

92059A

TUBE,7X11X240

92059-1635

1
Out of stock

92059F

TUBE,3.5X6.5X420

92059-1748

1
Out of stock

92059G

TUBE,3.5X6.5X220

92059-1749

1
Out of stock

92066

PLUG,12X25

92068-006

1
Out of stock

92066

PLUG,12X25

92068-006

1
Out of stock
