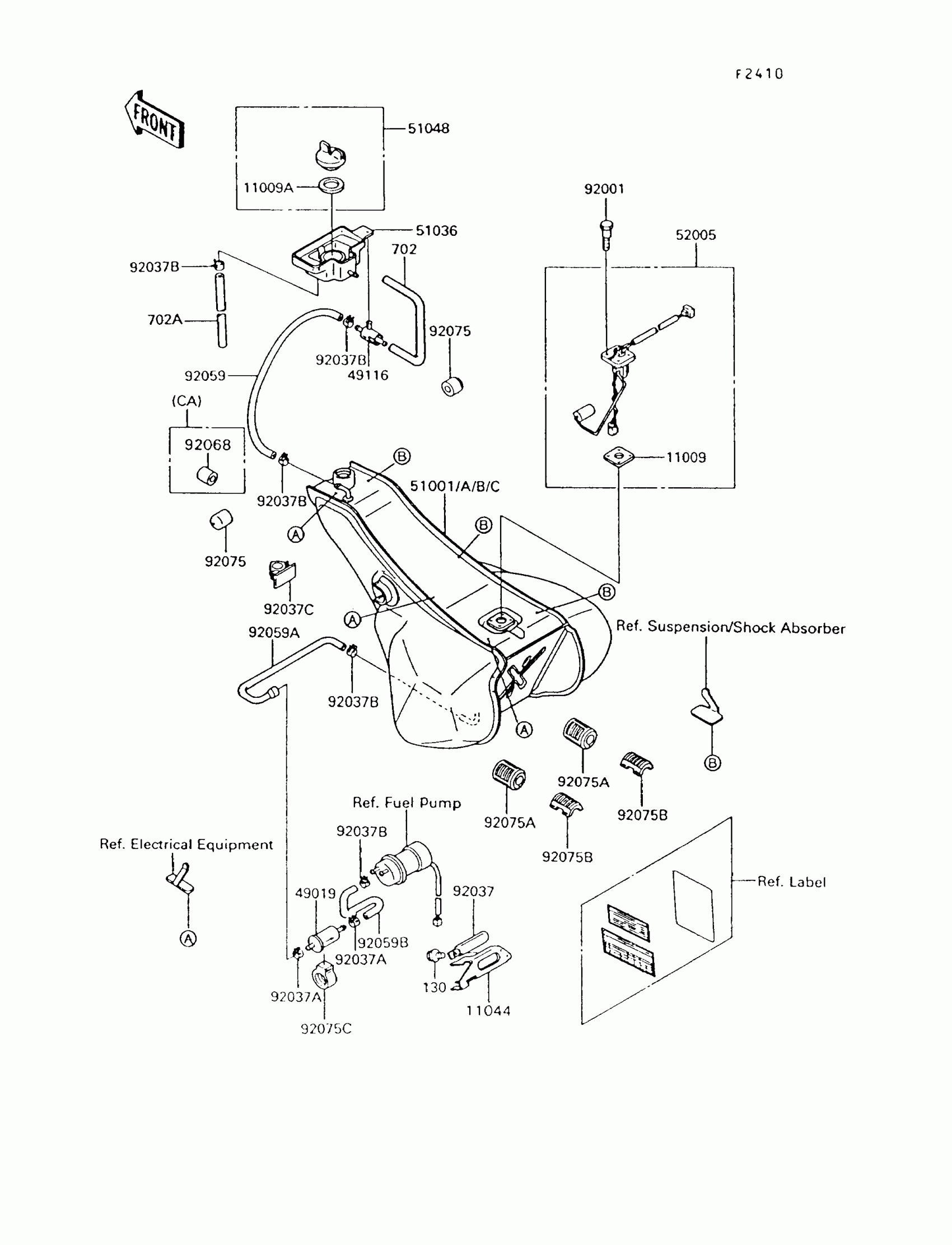

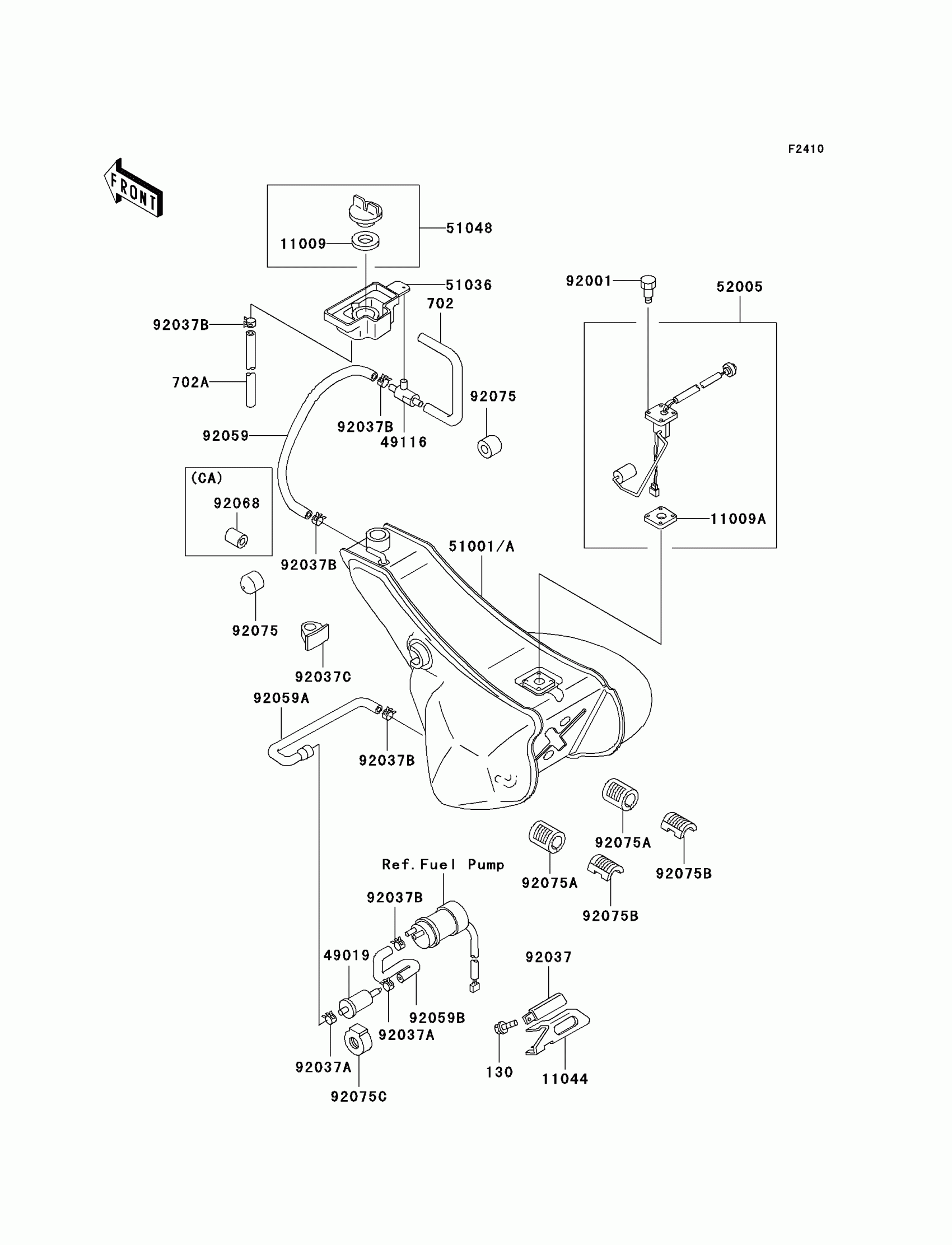

Kawasaki Voyager XII FUEL TANK Diagram

#

Description
Price

11009

GASKET,FUEL GAUGE

11009-1656

Unavailable

11009A

GASKET,TANK CAP

11009-1326

Unavailable

11045

BRACKET,FUEL FILTER

11044-1743

$24.59

49019

FILTER-FUEL

49019-1055

$18.12

49116

VALVE-ASSY,BREATHER

49116-1063

Unavailable

51001

TANK-COMP-FUEL

51001-1233

Unavailable

51001A

TANK-COMP-FUEL

51001-1239

$724.72

51036

CUP,FUEL TANK

51036-1054

$38.15

51048

CAP-ASSY-TANK,FUEL

51048-1070

$53.12

52005

GAUGE,FUEL

52005-1076

$153.86

92001

BOLT,FUEL GAUGE

92001-1705

Unavailable

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,HOSE CLIP

92037-1181

$2.31

92037B

CLAMP,TUBE

92037-1505

$3.63

92037C

CLAMP,TUBE

92037-1794

$7.81

92059

TUBE,5.8X11.5X260

92059-1392

$6.94

92059A

TUBE

92059-1724

Unavailable

92059B

TUBE

92059-1725

$18.17

92066

PLUG,12X25

92068-006

$3.25

92075

DAMPER,FUEL TANK

92075-044

$3.89

92075A

DAMPER,FUEL TANK

92075-084

$7.65

92075B

DAMPER,FUEL TANK

92075-1806

$9.02

92075C

DAMPER,FUEL FILTER

92075-1853

$9.39

130

BOLT-FLANGED,6X10

130B0610

Unavailable

702

TUBE,5X1430

702A051430

$29.70

702A

TUBE-BREATHER (BULK)

702A071000

$10.11
