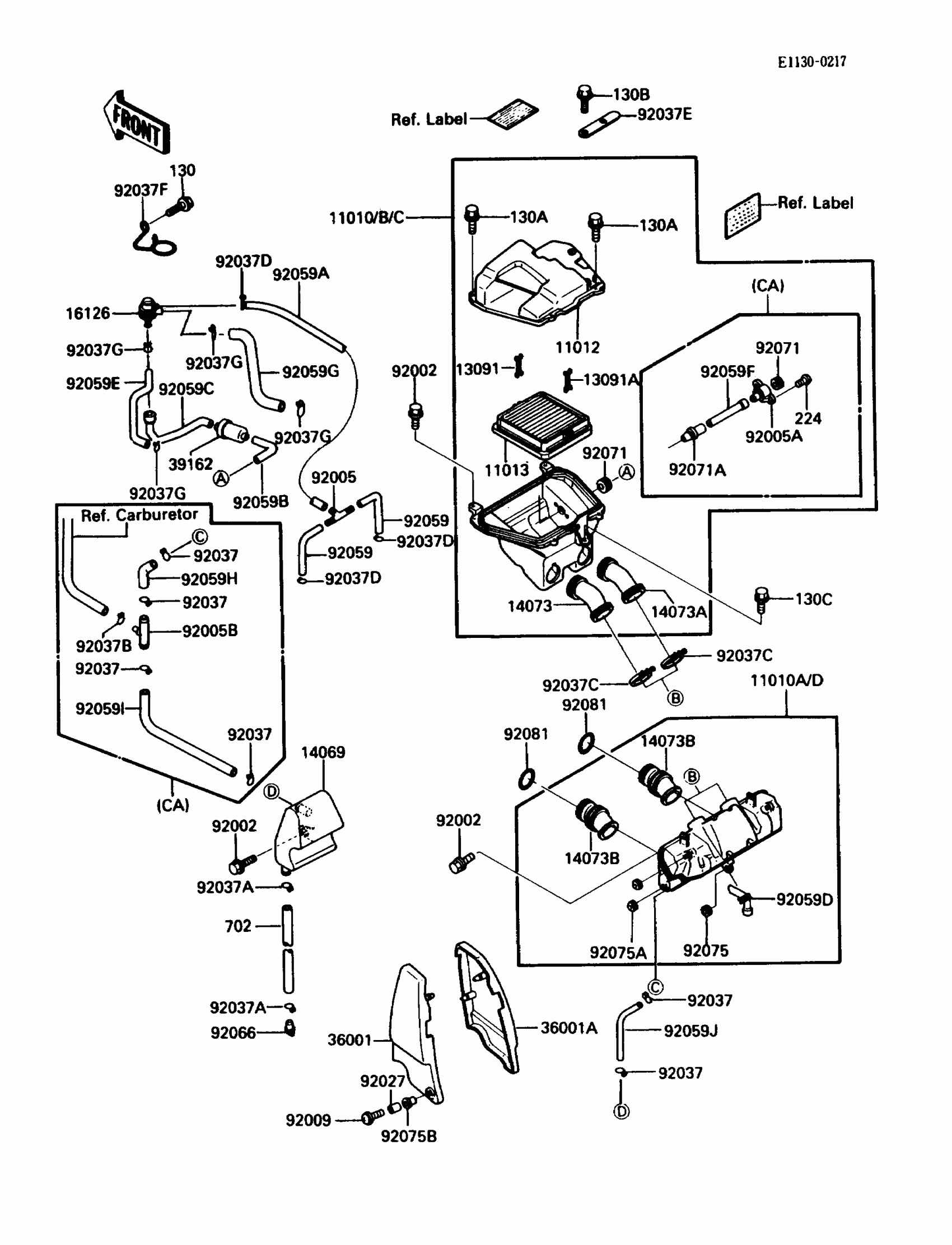

Kawasaki Voyager XII Air Filter Diagram

#

Description
Price

11012

CAP,AIR FILTER

11012-1490

$137.27

11013

ELEMENT-AIR FILTER

11013-1137

$45.53

13091

HOLDER,FR

13091-1420

Unavailable

13091A

HOLDER,RR

13091-1432

Unavailable

14069

BREATHER,TANK

14069-1053

$35.82

14073

DUCT,LH

14073-1241

Unavailable

14073A

DUCT,RH

14073-1242

$22.53

14073B

DUCT,CARBURETOR

14073-1255

$62.39

36001

COVER-SIDE,AIR FILTER

36001-1334

$97.06

36001A

COVER-SIDE,AIR FILTER

36001-1335

$97.06

92002

BOLT,6X16

92002-1188

$3.68

92009

SCREW,6X22

92009-1441

$3.43

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.87

92037A

CLAMP,TUBE

92037-147

$5.84

130A

BOLT-FLANGED,6X16

130B0616

Unavailable

92037C

CLAMP

92037-1554

$10.32

92037E

CLAMP

92037-1768

$4.31

92059D

TUBE

92059-1659

$16.56

92066

PLUG,DRAIN

92066-1211

$6.75

92075

DAMPER,CLEANER COVER

92075-1126

$8.71

92075A

DAMPER

92075-1470

$7.31

92075B

RUBBER,FENDER COVER

92075-174

$3.80

92081

SPRING,AIR FILTER DUCT

92081-1422

$10.26

130B

BOLT-FLANGED

130D0610

Unavailable

130C

BOLT,FLANGED,6X14

130G0614

Unavailable

702

TUBE-RUBBER,7X10X120

702A07120

$10.53

11010

FILTER-ASSY-AIR,UPP

11010-1273

$424.67

11010A

FILTER-ASSY-AIR,LWR

11010-1274

$306.15

11010B

FILTER-ASSY-AIR,UPP

11010-1297

$335.28

11010C

FILTER-ASSY-AIR,UPP (Canada)

11010-1301

Unavailable

11010D

FILTER-ASSY-AIR,LWR

11010-1314

$209.09

16126

VALVE,AIR SWITCH

16126-1005

$195.68

39162

SILENCER-INTAKE

39162-1003

$69.57

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING

92005-1139

$34.81

92005B

FITTING

92005-1149

$21.86

92037

CLAMP-HOSE

92037-1104

$1.14

92037

CLAMP-HOSE

92037-1104

$1.14

92037B

CLAMP,TUBE

92037-1482

Unavailable

130

BOLT

130B0612

Unavailable

92037D

CLAMP

92037-1610

$1.48

92037F

CLAMP

92037-1776

$9.14

92037G

CLAMP,TUBE

92037-213

$3.43

92059

TUBE,4X9X155

92059-1033

$15.01

92059A

TUBE,VACUUM,LONG

92059-1162

$15.01

92059B

TUBE

92059-1657

$23.53

92059C

TUBE

92059-1658

$30.16

92059E

TUBE,AIR SWITCH VALVE

92059-1668

$19.34

92059F

TUBE

92059-1699

$7.76

92059G

TUBE,AIR SWITCH VALVE

92059-1703

$18.61

92059H

TUBE

92059-1742

Unavailable

92059I

TUBE

92059-1743

$9.41

92059J

TUBE,7X12X230

92059-1750

$12.36

92071

GROMMET,AIR FILTER

92071-1028

$5.78

92071A

GROMMET

92071-1132

$8.46

224

SCREW-PAN-WP-CROS

224C0614

Unavailable
