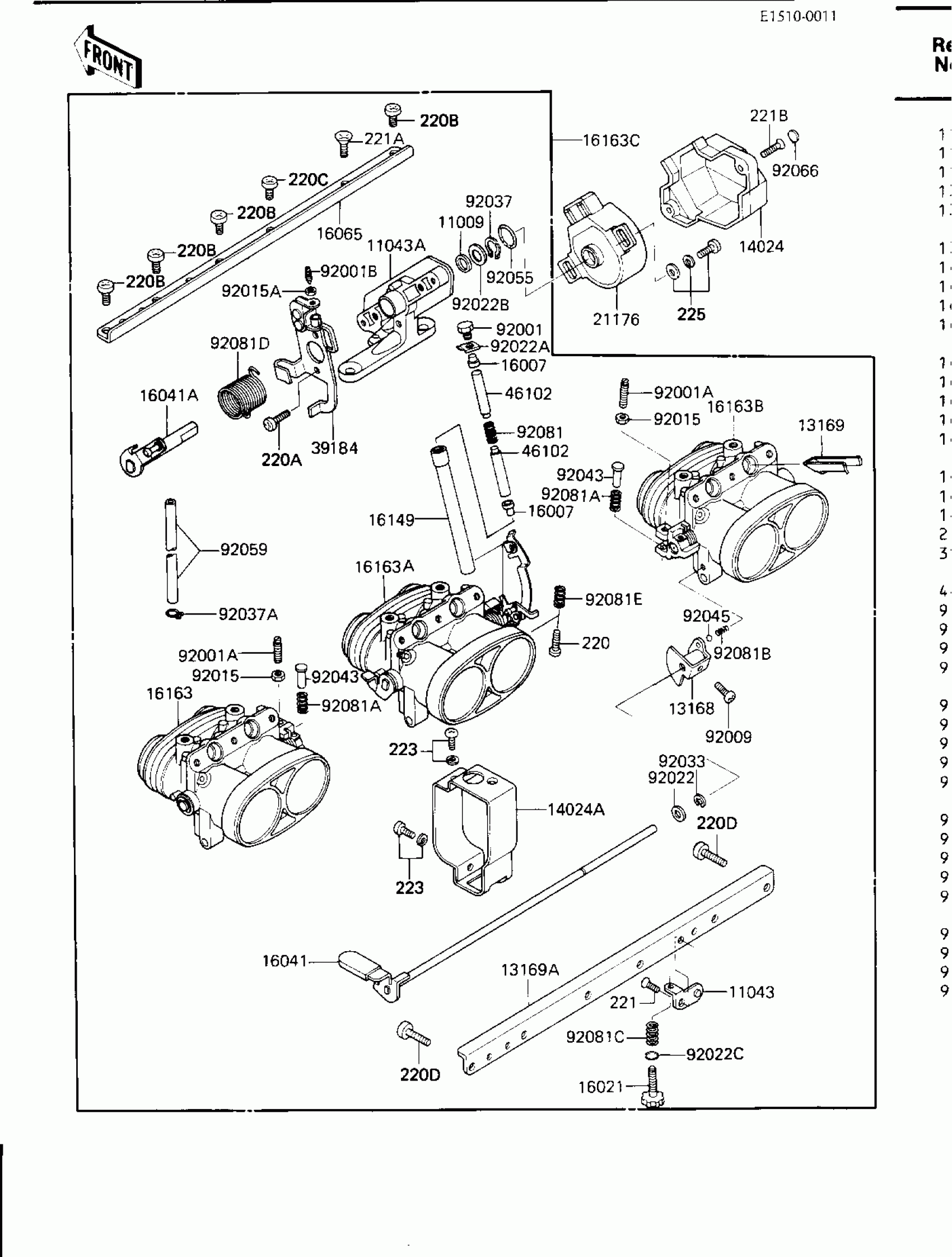

Kawasaki Voyager THROTTLE ASSY Diagram

#

Description
Price

11009

GASKET,8MM

16038-020

Unavailable

11043

BRACKET-B,IDLE ADJUST SCREW

11043-1370

Unavailable

11043A

BRACKET,THROTTLE SENSOR

11043-1494

Unavailable

13168

LEVER,FAST IDLE

13168-1210

Unavailable

13169

PLATE

13169-1744

Unavailable

13169A

PLATE,THROTTLE STAY,LWR

13169-1745

Unavailable

14024

COVER,SENSOR

14025-1657

Unavailable

14024A

COVER,TUBE

14025-1798

Unavailable

16007

SEAT-SPRING

16057-002

Unavailable

16021

SCREW-THROTTLE STOP

16021-1066

$9.19

16041

SHAFT-CARBURETOR,FAST IDLE

16041-1052

$66.97

16041A

SHAFT-CARBURETOR,SENSOR

16041-1053

$130.25

16065

HOLDER-CARBURETOR,STAY,UPP

16065-1107

$49.32

16149

BAR,CARBURETOR

16149-1052

$41.61

16163

THROTTLE-ASSY,#1

16163-1032

$170.01

16163A

THROTTLE-ASSY,#2

16163-1033

$170.01

16163B

THROTTLE-ASSY,#3

16163-1034

$170.01

16163C

THROTTLE-ASSY

16163-1068

$980.06

21176

SENSOR,THROTTLE

21176-1004

Unavailable

39184

BRACKET-ASSY,THROTTLE

39184-1053

$75.68

46102

ROD,THROTTLE

46102-1106

$15.39

92001

BOLT,A

16067-003

$4.63

92001A

BOLT,ADJUSTING

92001-1447

Unavailable

92001B

BOLT,THROTTLE BRACKET

92001-1909

$10.24

92009

SCREW,PAN HEAD,5X7

16046-007

Unavailable

92015

NUT,THROTTLE VALVE ADJUSTING

92015-1119

Unavailable

92015A

NUT,THROTTLE BRACKET

92015-1348

$1.59

92022

WASHER,PLAIN,NYLON

16039-019

Unavailable

92022A

WASHER,LOCK

16054-003

Unavailable

92022B

WASHER,THROTTLE SENSOR

92022-1492

$4.22

92022C

WASHER,THROTTLE STOP SCREW

92022-1608

$1.51

92033

RING-SNAP,E-TYPE

92033-1066

Unavailable

92037

CLAMP

92037-1196

$4.22

92037A

CLAMP,TUBE

92037-1482

Unavailable

92043

PIN,THROTTLE VALVE ADJUST

92043-1079

$5.58

92045

BALL,STEEL,1/8"

600A0400

$1.66

92055

RING-O,THROTTLE SENSOR

92055-1226

Unavailable

92059

TUBE,3X7X125

92059-1382

$13.10

92066

PLUG

92066-1122

$2.58

92081

SPRING

16040-026

Unavailable

92081A

SPRING,THROTTLE VALVE ADJUST

92081-1259

$4.68

92081B

SPRING,SHAFT STOP

92081-1260

Unavailable

92081C

SPRING,THROTTLE STOP SCREW

92081-1377

$4.51

92081D

SPRING,THROTTLE SENSOR RETURN

92081-1634

$23.53

92081E

SPRING,FAST IDLE ADJUST SCREW

92081-1635

$2.71

220

SCREW-PAN-CROS,4X18

220B0418

Unavailable

220A

SCREW-PAN-CROS

220B0512

$0.51

220B

SCREW PAN HEAD 6X10

220B0610

Unavailable

220C

SCREW-PAN-CROS,6X16

220B0616

Unavailable

220D

SCREW PAN HEAD 6X18

220B0618

$2.92

221

SCREW-CSK-CROS

221B0508

$0.80

221A

SCREW-CSK-CROS,6X16

221B0616

$0.63

221B

SCREW-CSK-CROS,4X14

221C0414

$3.78

223

SCREW-PAN-WS-CROS

223B0508

Unavailable

225

SCREW-PAN-WSP-CROS

225B0510

Unavailable
