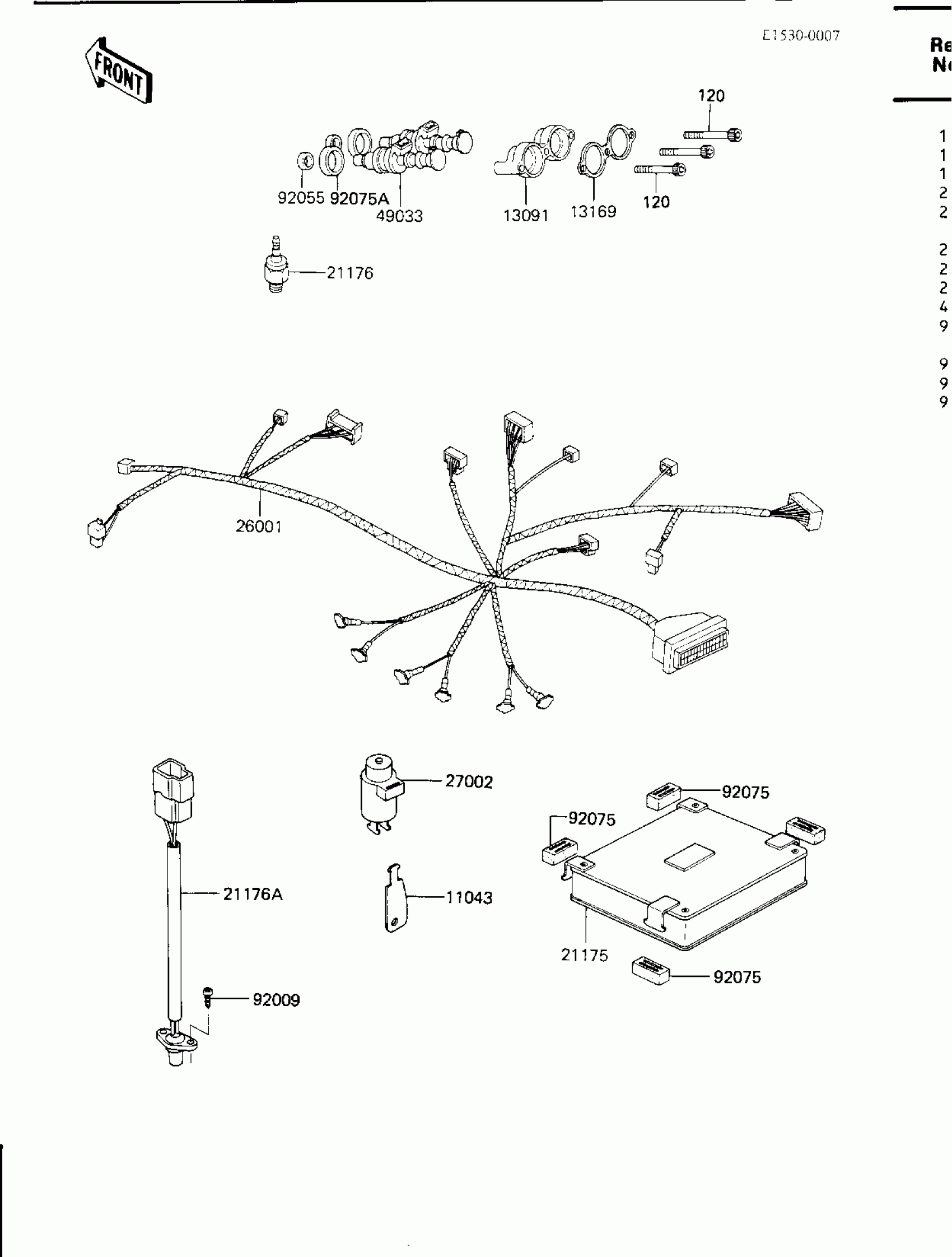

Kawasaki Voyager FUEL INJECTION EQUIPMENT Diagram

Description

Price

11043

BRACKET-B,DFI PUMP RELAY

11043-1318

Unavailable

13091

HOLDER,INJECTION NOZZLE

13091-1184

Unavailable

13169

PLATE,INJECTION NOZZLE

13169-1605

Unavailable

21175

CONTROL UNIT-ELECTRONIC,FUEL

21175-1008

Unavailable

21176

SENSOR-TEMPERATURE

21176-1002

Unavailable

21176A

SENSOR,AIR-TEMPERATURE

21176-1003

$92.53

26001

HARNESS,D.F.I

26001-1567

$375.75

27002

RELAY-ASSY

27002-1051

$49.55

49033

NOZZLE-INJECTION

49033-1002

Unavailable

92009

SCREW,TAPPING,3X12

92009-1028

$3.20

92055

RING-O,FUEL INJECT

92055-1082

Unavailable

92075

DAMPER,ELECTRONIC CONTROL UNIT

92075-1312

$14.93

92075A

DAMPER,FUEL INJECT

92075-1617

Unavailable

120

BOLT-SOCKET

120S0540

Unavailable
