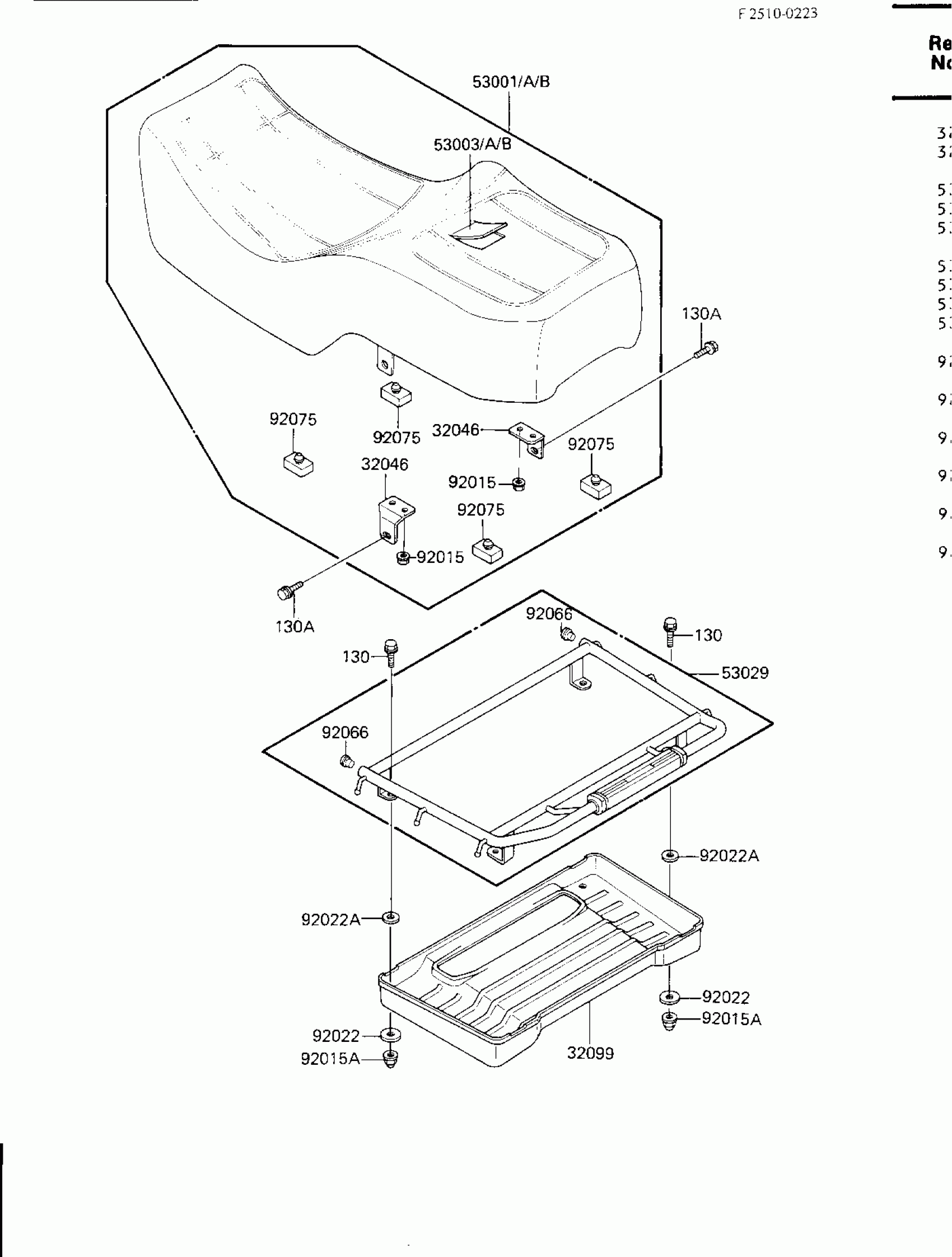

Kawasaki Voyager SEAT/CARRIER Diagram

Description

Price

30246

BRACKET-SEAT

32046-1203

$7.53

32099

CASE,CARRIER

32099-1035

$249.85

53001B

SEAT-ASSY,DUAL

53001-1444

$514.03

53003B

LEATHER,SEAT

53003-1150

$207.75

53029

CARRIER,TRUNK

53029-1030

$259.82

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,LOCK 6MM

92015-1262

$4.85

92022

WASHER,7X28X1.6,BLACK

92022-1392

$2.15

92022A

WASHER,RUBBER

92022-1477

$4.41

92066

PLUG,CARRIER

92066-1119

$2.56

92075

DAMPER

92075-099

$4.37

130

BOLT,FLANGED,6X18

130B0618

Unavailable

130A

BOLT-FLANGED,8X16

130G0816

Unavailable
