1986 Kawasaki Voyager Brake Pedal/torque Link Diagram

← All diagrams

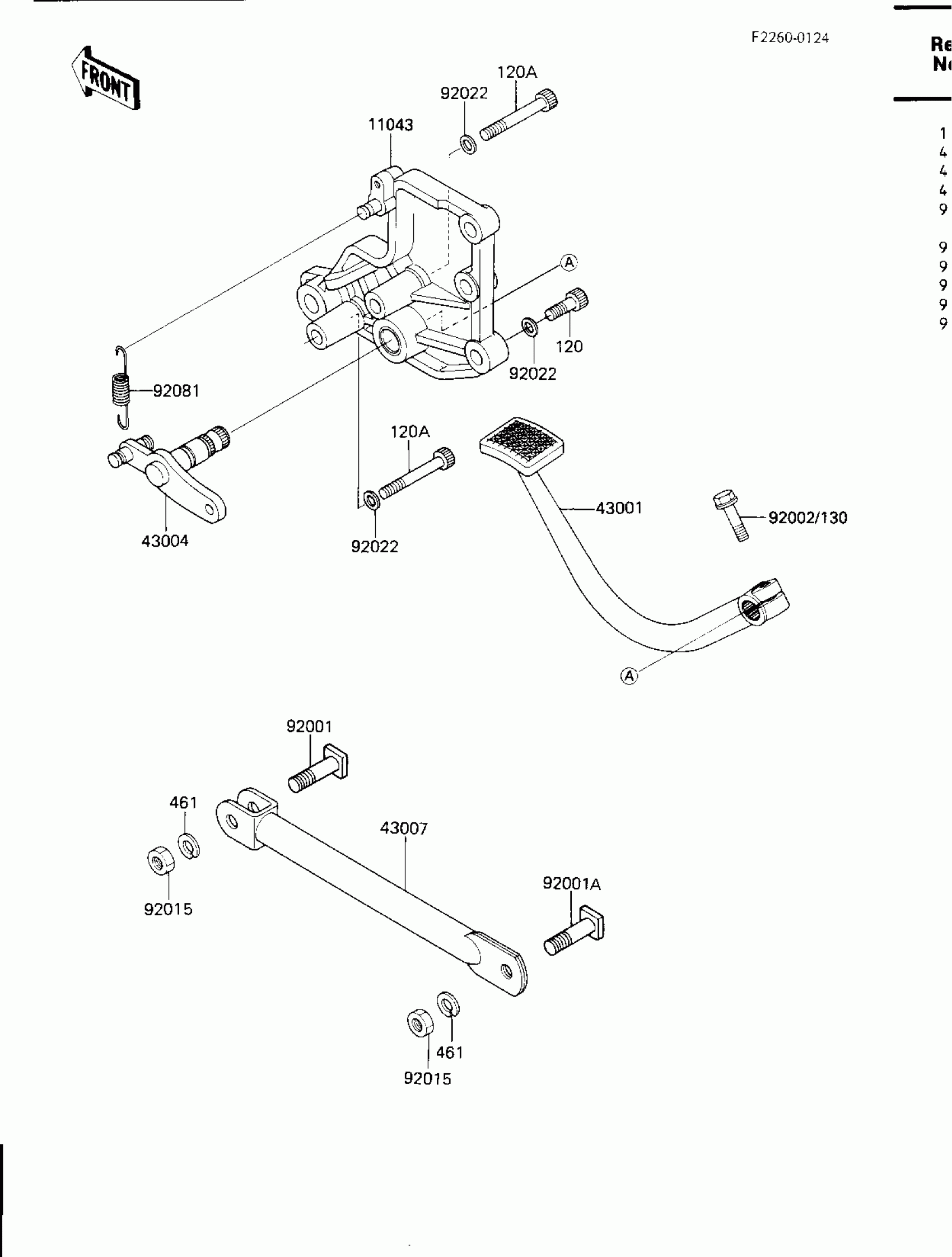

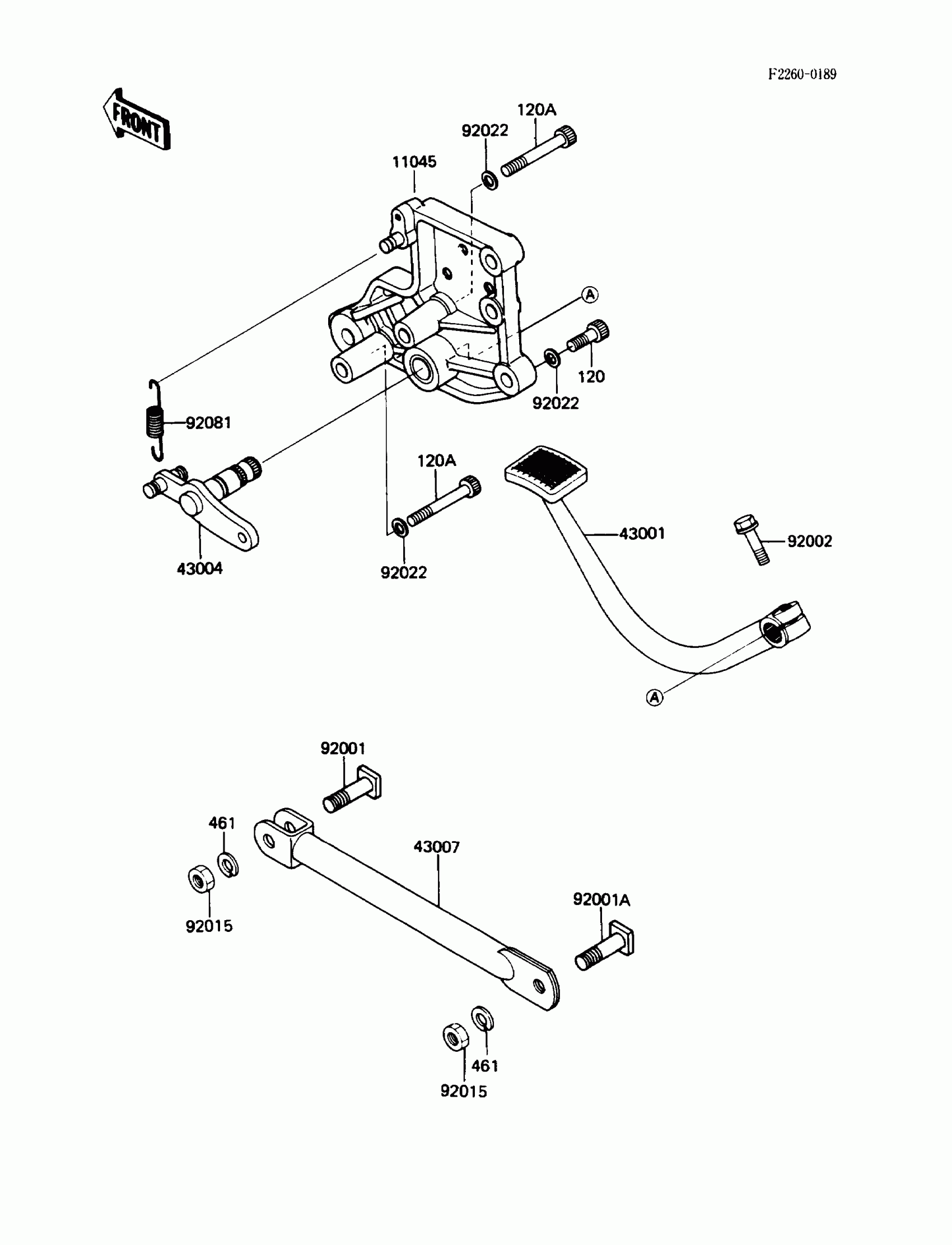

Find the part on the Brake Pedal/torque Link diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

BRACKET,BRAKE PEDAL

11045-1981

1
Out of stock

43001

LEVER-BRAKE,PEDAL

43001-1115

1
Out of stock

43004

SHAFT-BRAKE

43004-1052

1
Out of stock

43007

ROD-TORQUE,L=250

43007-1044

1
Out of stock

92001

BOLT,10X37,BLACK

92001-1646

1
Out of stock

92001A

BOLT,10X27

92001-1891

1
Out of stock

92002

BOLT,FLANGED,8X25

92002-1201

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92022

WASHER,9X15.5X2

92022-1401

1
Out of stock

92081

SPRING,BRAKE PEDAL

43005-029

1
Out of stock

120

BOLT-SOCKET,8X25

120S0825

1
Out of stock

120A

BOLT-SOCKET,8X55

120S0855

1
Out of stock

461

WASHER-SPRING,10MM,BLACK

461K1000

1
Out of stock
