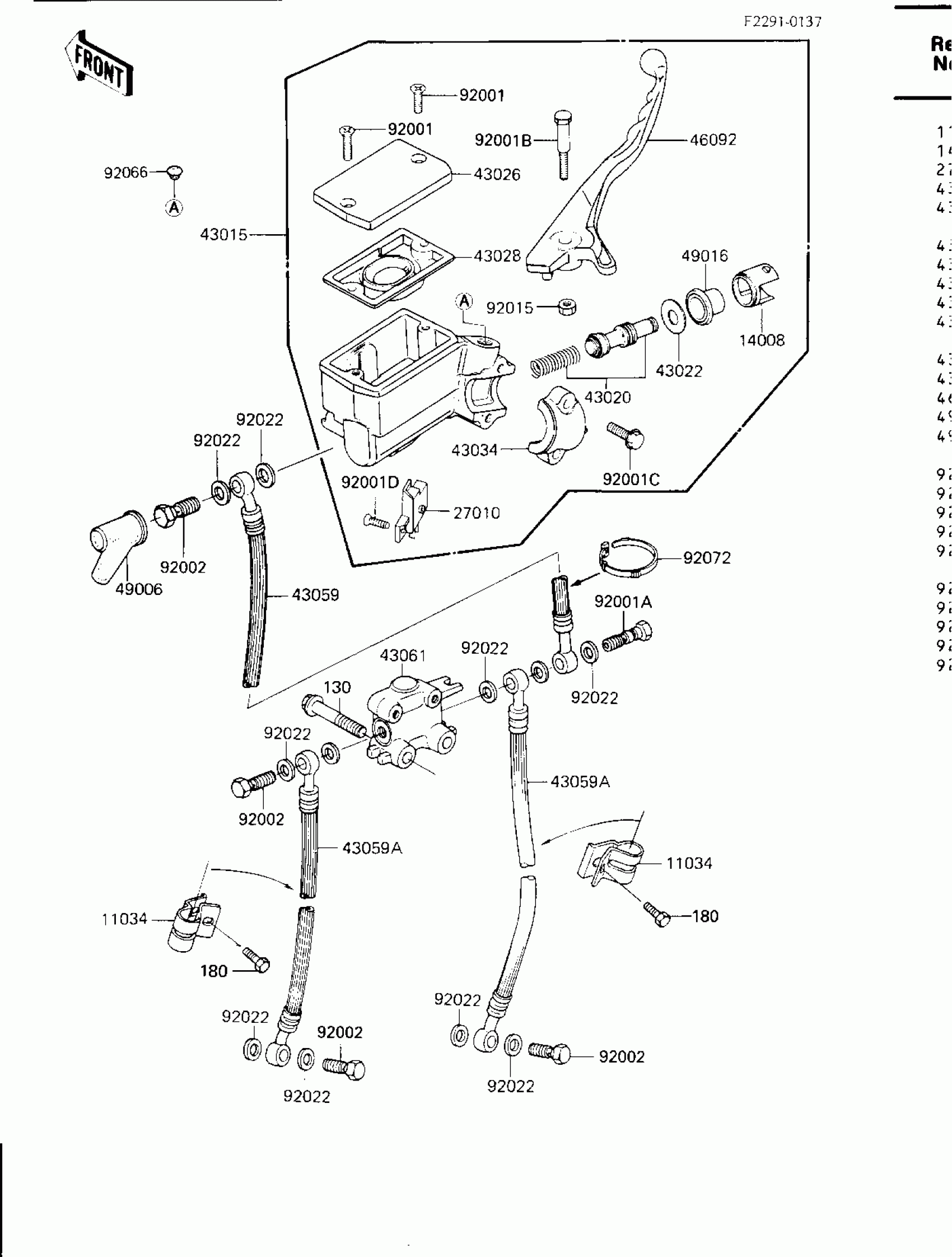

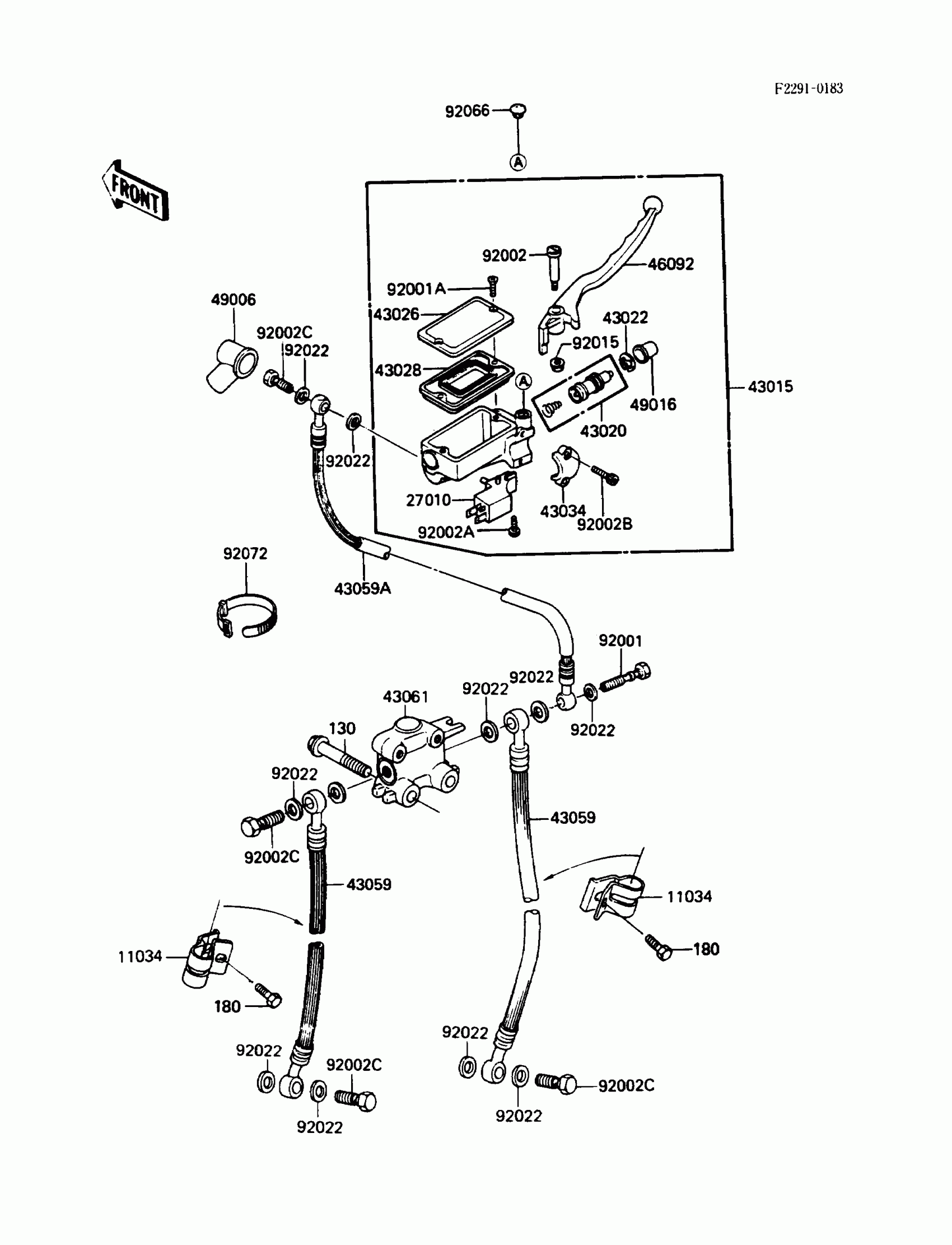

Find the part on the Front Master Cylinder diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET,BRAKE HOSE

11034-1284

1
Out of stock

14008

LINER,PISTON

14008-1035

1
Out of stock

27010

SWITCH,BRAKE

27010-1056

1
Out of stock

43015

1

$444.57

In stock

43020

PISTON-COMP-BRAKE

43020-1079

1

$92.31

In stock

43022

1

$5.20

In stock

43026

CAP-BRAKE,MASTER CYLI

43026-1027

1
Out of stock

43028

1

$25.99

In stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

1
Out of stock

43059

HOSE-BRAKE,L=550

43059-1160

1

$67.68

In stock

43059A

HOSE-BRAKE,L=570

43059-1175

1
Out of stock

43061

JOINT-BRAKE

43061-1001

1

$58.72

In stock

46092

LEVER-GRIP,FRONT BRAK

46092-1102

1
Out of stock

49006

BOOT,DUST

49006-1067

1
Out of stock

49016

1

$10.69

In stock

92001

1

$4.84

In stock

92001A

BOLT,OIL,L=37

92002-1909

1
Out of stock

92001B

BOLT,6X37.3,BLACK

92001-1512

1

$9.97

In stock

92001C

BOLT,6X25,W/WASHER,BLACK

92001-1513

1
Out of stock

92001D

SCREW-CSK-CROS,4X10,BLACK

92001-1532

1
Out of stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92066

1

$3.69

In stock

92072

BAND,L=186

92072-056

1

$3.97

In stock

130

BOLT-FLANGED,8X45

130G0845

1
Out of stock

180

BOLT-UPSET-WS

180C0612

1

$3.85

In stock
