1987 Yamaha V-MAX (VMX540L) Shroud - Windshield Diagram

← All diagrams

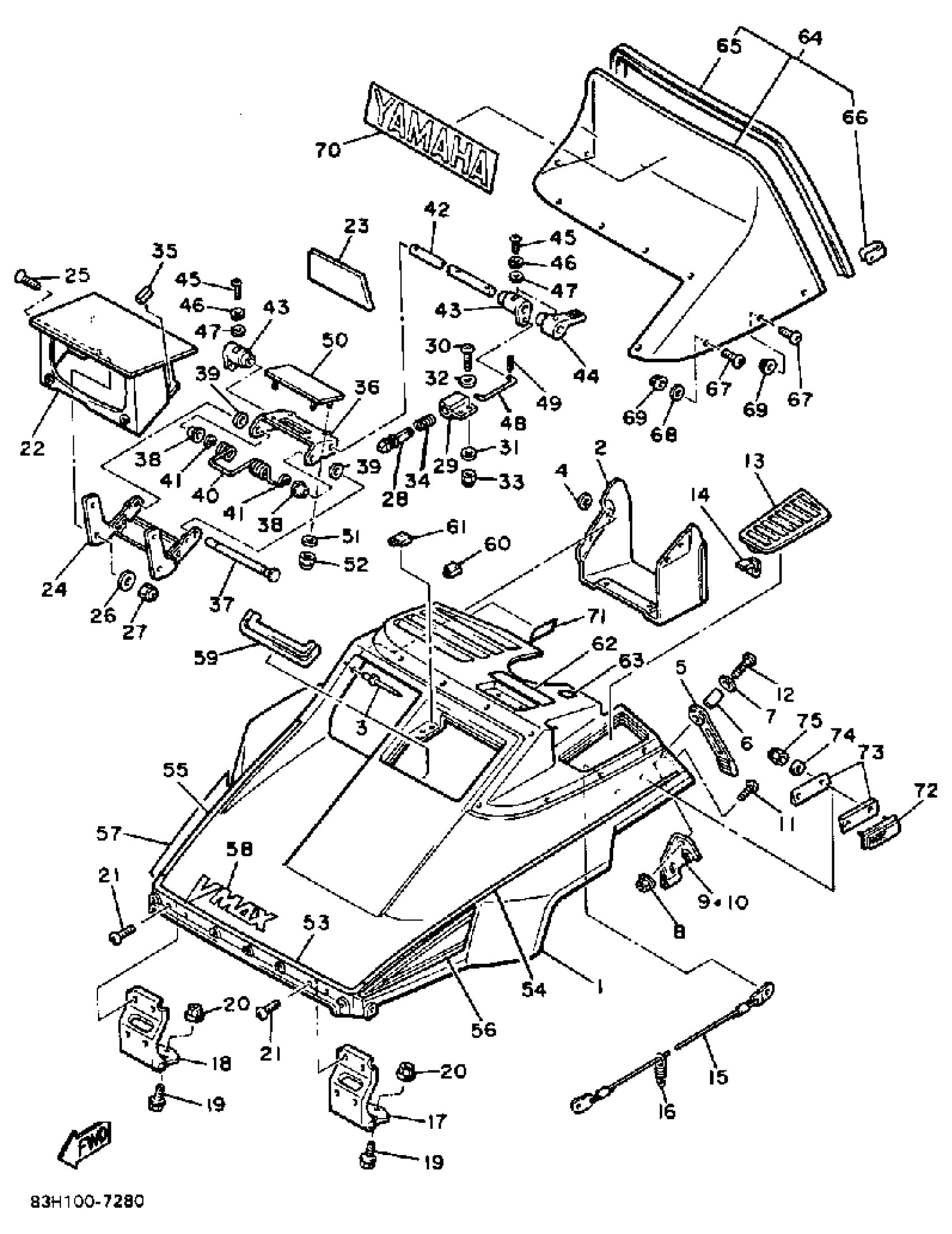

Find the part on the Shroud - Windshield diagram for your 1987 Yamaha V-MAX (VMX540L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Yamaha V-MAX (VMX540L) Shroud - Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

81K-W7711-00-00

1
Out of stock

2

DUCT

8M6-77194-00-00

1
Out of stock

3

RIVET (856)

90267-48014-00

1
Out of stock

4

WASHER, PLATE

90201-04027-00

1
Out of stock

5

BODY, LATCH 1

8M6-77171-00-00

1
Out of stock

6

COLLAR (420)

90387-06241-00

1

$6.18

In stock

7

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

8

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

9

CLAMP 1

8M6-77135-00-00

1
Out of stock

10

CLAMP 2

8M6-77136-00-00

1
Out of stock

11

SCREW, BINDING

98907-06016-00

1

$7.14

In stock

12

SCREW, BINDING

98907-06025-00

1

$6.18

In stock

13

LOUVER 3

8M6-77133-00-00

1
Out of stock

14

CLIP

90468-05094-00

1
Out of stock

15

STOPPER, SHROUD

8U9-77118-00-00

1
Out of stock

16

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

17

HINGE ASSEMBLY

8M6-77140-01-00

1
Out of stock

18

HINGE ASY 2

8M6-7714A-01-00

1
Out of stock

19

BOLT, FLANGE

95817-06016-00

—

$1.49

In stock

20

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

21

SCREW, BIND (705)

98980-06016-00

—
Out of stock

22

BODY,HEADLIGHT

81K-84311-00-00

1
Out of stock

23

DAMPER, HEADLIGHT 2

8X6-84367-00-00

1
Out of stock

24

STAY, HEADLIGHT 1

8M6-84318-00-00

1
Out of stock

25

SCREW, FLAT

98707-05016-00

—

$5.60

In stock

26

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

27

NUT, NYLON

95707-05300-00

—

$2.74

In stock

28

ROD 1

8M6-77119-00-00

1
Out of stock

29

HOLDER, ROD 1

8M6-77139-00-00

1
Out of stock

30

SCREW, BINDING

98907-06025-00

1

$6.18

In stock

31

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

32

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

33

NUT, NYLON

95707-06300-00

—

$3.20

In stock

34

SPRING R (R.H.)

8M6-77184-00-00

1
Out of stock

35

DAMPER

3HP-84163-00-00

1
Out of stock

36

STAY, HEADLIGHT 2

8M6-84319-00-00

1
Out of stock

37

PIN

8M6-8411R-00-00

1
Out of stock

38

COLLAR 1

8M6-77176-00-00

1
Out of stock

39

WASHER 1

8M6-77178-00-00

1
Out of stock

40

SPRING 1

8M6-77174-00-00

1
Out of stock

41

CIRCLIP

99080-07600-00

1

$2.89

In stock

42

PIN, HINGE 2

8M6-77158-00-00

1
Out of stock

43

CLAMP, ROD

8M6-77159-00-00

1
Out of stock

44

LEVER, LATCH 1

8M6-77173-00-00

1
Out of stock

45

SCREW, PAN HEAD

98506-03016-00

1
Out of stock

46

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

47

WASHER(3SX)

92907-03600-00

—

$6.69

In stock

48

ROD 2

8M6-77129-00-00

1
Out of stock

49

. PIN, COTTER

91401-10015-00

1
Out of stock

50

COVER, LEVER

81K-77189-00-00

1
Out of stock

51

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

52

NUT, U

95617-05100-00

—

$6.68

In stock

53

STRIPE 1

83H-77281-00-00

1
Out of stock

54

STRIPE 2

83H-77282-00-00

—

$19.11

In stock

55

STRIPE 3

83H-77283-00-00

1
Out of stock

56

EMBLEM 8

83H-77358-00-00

1
Out of stock

57

EMBLEM 9

83H-77359-00-00

1
Out of stock

58

EMBLEM 12

83H-77367-00-00

1
Out of stock

59

GUIDE 1

8X6-77123-00-00

1
Out of stock

60

PAD 1

8X6-77151-00-00

1
Out of stock

61

PAD 2

8X6-77152-00-00

1
Out of stock

62

LABEL, WARNING 3

80N-77763-00-00

1
Out of stock

63

INDICATOR, COCK

84M-24153-00-00

1
Out of stock

64

WINDSHIELD

8M6-77210-09-00

1
Out of stock

65

TRIM,UPPER

87K-77213-00-00

1
Out of stock

66

. FASTENER

80V-77223-00-00

1
Out of stock

67

SCREW, TAPPING (8R4)

90164-05007-00

—

$3.13

In stock

68

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

69

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock

70

EMBLEM 13

81K-77368-00-00

1
Out of stock

71

FUEL COCK ASSEMBLY 1

81K-1417E-00-00

1
Out of stock

72

REFLECTOR ASSEMBLY

81E-85110-00-00

1
Out of stock

73

BASE, REFLECTOR

80E-85115-00-00

1
Out of stock

74

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

75

NUT, NYLON

95707-05300-00

—

$2.74

In stock
