1987 Yamaha V-MAX (VMX540L) Engine Bracket Diagram

← All diagrams

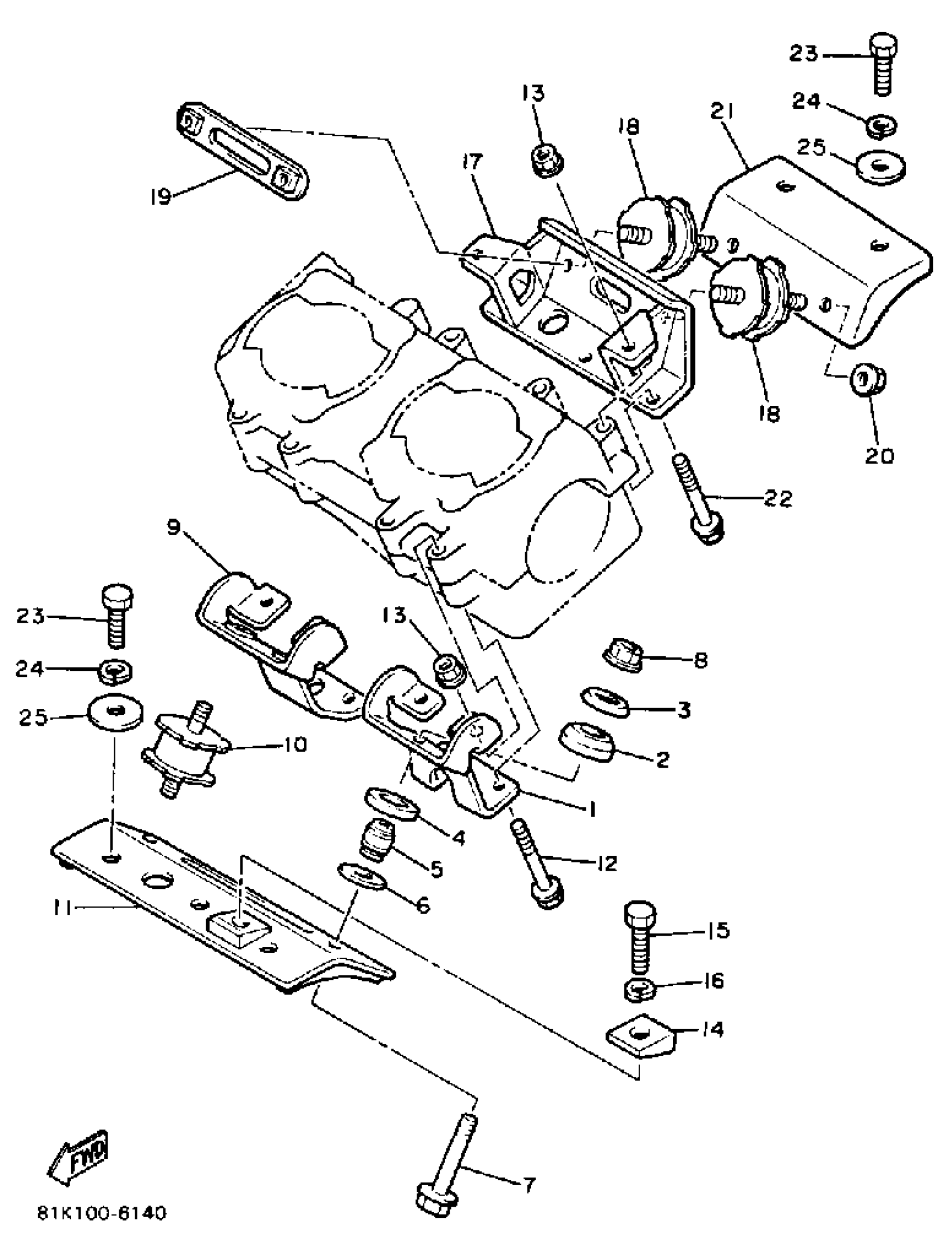

Find the part on the Engine Bracket diagram for your 1987 Yamaha V-MAX (VMX540L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Yamaha V-MAX (VMX540L) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 2

8U9-21419-00-00

1
Out of stock

2

DAMPER 2

8U9-21486-00-00

1
Out of stock

3

WASHER, CONICAL SPRING

90208-10034-00

1
Out of stock

4

DAMPER, RUBBER 1

8U9-21485-00-00

1
Out of stock

5

BUSH, SOLID

90380-10113-00

1
Out of stock

6

WASHER (888)

90201-10151-00

—

$3.94

In stock

7

BOLT, FLANGE(87Y)

95817-10055-00

1

$4.54

In stock

8

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

9

BRACKET, ENGINE 3 (8M6-21429-00)

8M6-21429-01-00

1
Out of stock

10

DAMPER 2

8M6-21486-02-00

1
Out of stock

11

BRACKET, FRT UPR 1

8U9-21415-00-00

1
Out of stock

12

BOLT, FLANGE(JF2)

95817-08080-00

1

$3.37

In stock

13

NUT, FLANGE

95704-08500-00

1
Out of stock

14

STOPPER

8U9-2149E-00-00

1
Out of stock

15

BOLT(6TA)

97017-10035-00

1

$5.80

In stock

16

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

17

BRACKET, ENGINE 1

8M6-21411-00-00

1
Out of stock

18

DAMPER 2

8M6-21486-02-00

1
Out of stock

19

BRACKET, REAR UPR 2

(8R9-21426-00-00)

1
Out of stock

20

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

21

BRACKET, REAR UPR 1

8M6-21425-00-00

1
Out of stock

22

BOLT, FLANGE(JN5)

95817-08070-00

—

$3.20

In stock

23

BOLT(6TD)

97017-10025-00

—

$6.82

In stock

24

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

25

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock
← Cylinder Head - Cylinder OIL Pump →
