WATER PUMP

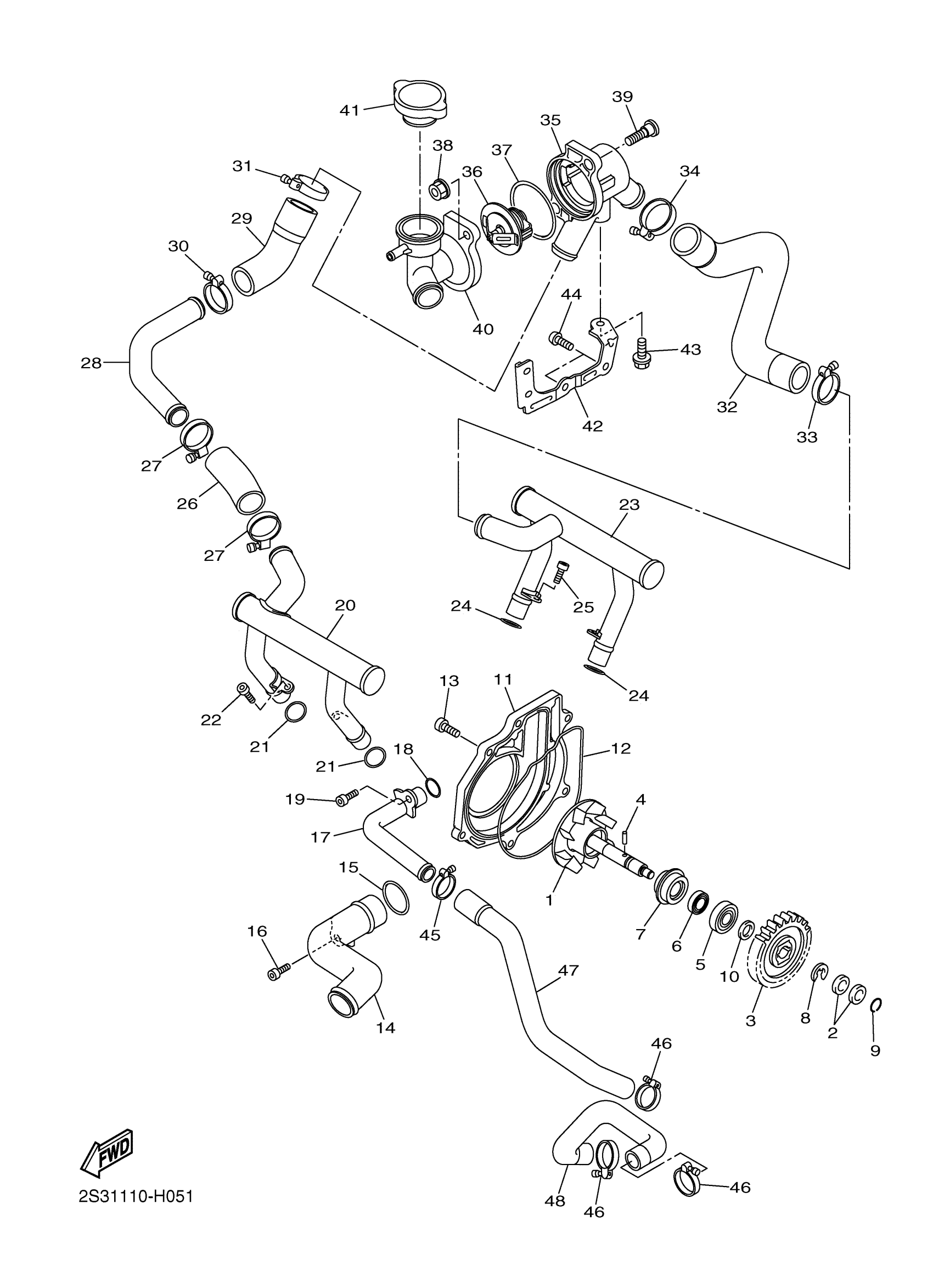

2016 Yamaha V-MAX (VMX17GL) Water Pump Diagram
Find the part on the Water Pump diagram for your 2016 Yamaha V-MAX (VMX17GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
4
PIN, DOWEL(1HX)
93603-16219-00
1
Out of stock
6
OIL SEAL (12X22X5-371)
93102-12106-00
1
Out of stock
10
WASHER, PLATE (525)
90201-12541-00
1
Out of stock
11
COVER, HOUSING
2S3-12422-00-00
1
Out of stock
22
BOLT(3MA)
91312-06016-00
—
Out of stock
25
BOLT(3MA)
91312-06016-00
—
Out of stock
37
O-RING (620)
93210-49046-00
—
Out of stock
41
CAP, RADIATOR
5SL-12462-01-00
—
Out of stock
44
BOLT, BUTTON HEAD(4NK)
92014-06014-00
—
Out of stock
