2016 Yamaha V-MAX (VMX17GL) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2016 Yamaha V-MAX (VMX17GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

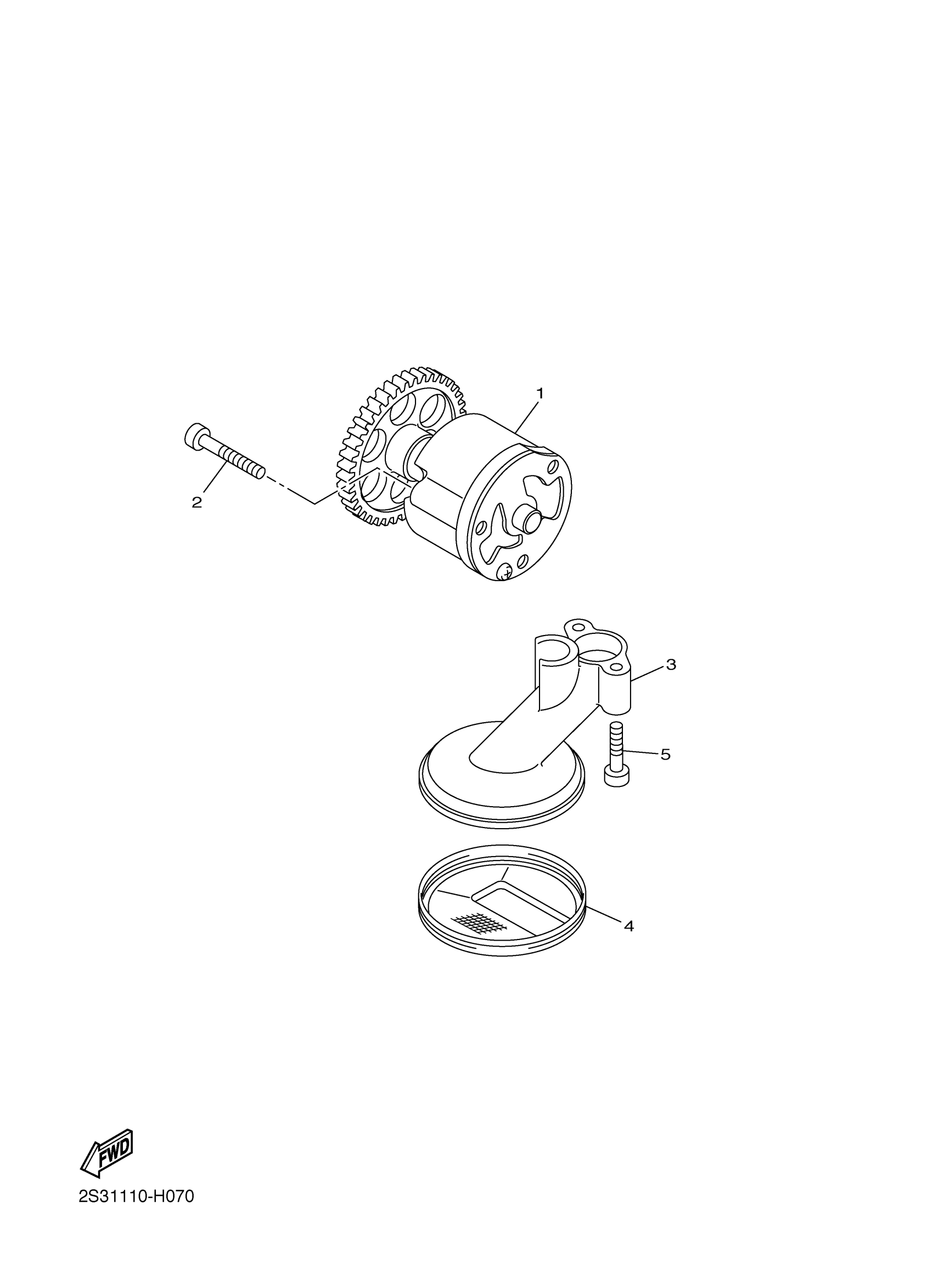

2016 Yamaha V-MAX (VMX17GL) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

2S3-13300-01-00

1

$228.46

In stock

2

BOLT

91312-06050-00

1

$3.91

In stock

3

HOUSING, STRAINER

2S3-13412-00-00

—

$37.35

In stock

4

STRAINER, OIL

5JW-13411-00-00

—

$32.57

In stock

5

BOLT(J17)

91312-06035-00

1
Out of stock
