2016 Yamaha V-Max (VMX17GL) Exhaust Diagram

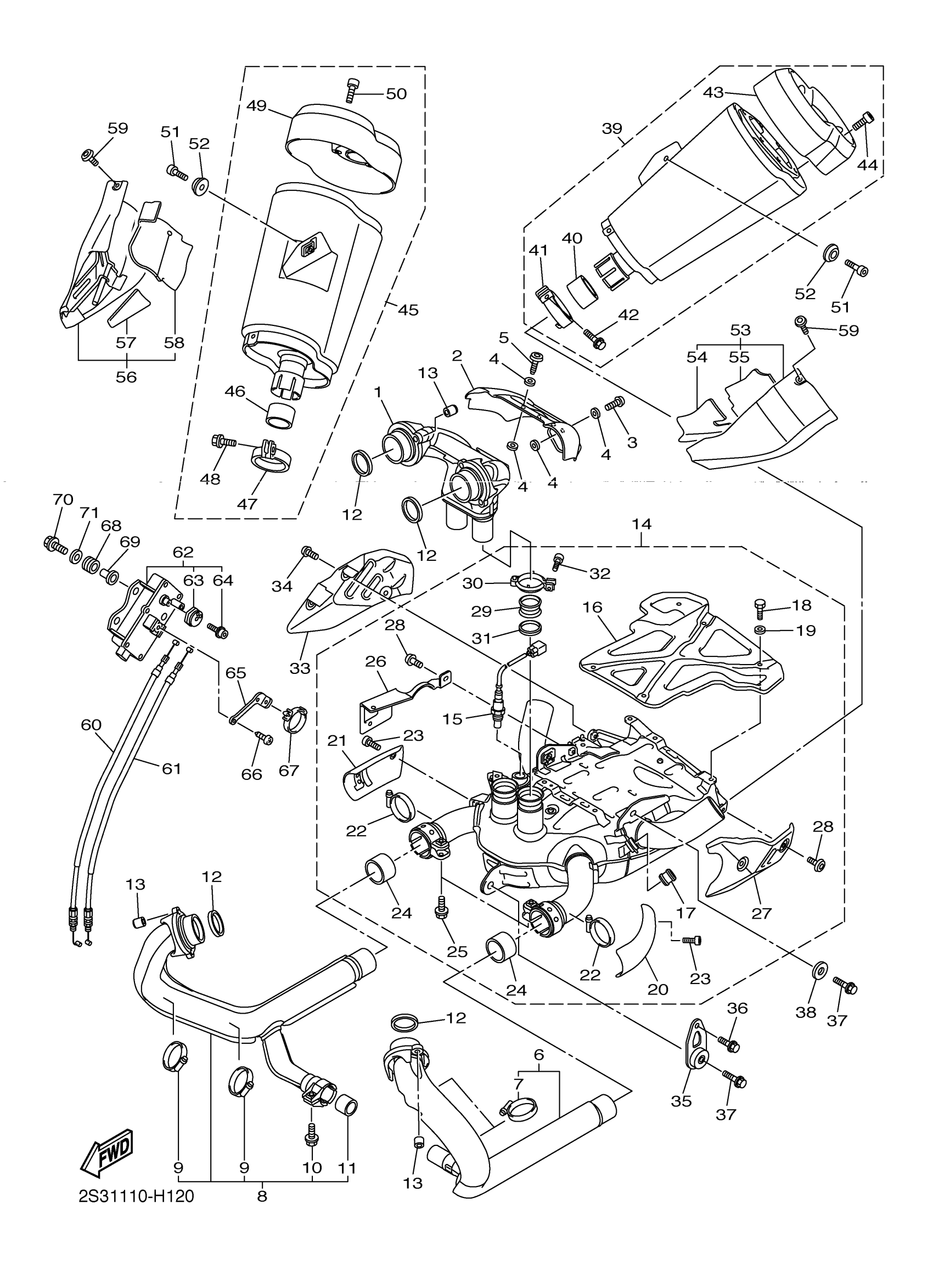

Find the part on the Exhaust diagram for your 2016 Yamaha V-Max (VMX17GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
3
BOLT, BUTTON HEAD(3JP)
92014-06012-00
6
EXHAUST PIPE ASSY 2
2S3-14620-01-00
8
EXHAUST PIPE ASSY 4
2S3-14650-01-00
12
GASKET, EXHAUST PIPE
2S3-14613-01-00
14
MUFFLER COMP.
2S3-14701-00-00
20
COVER 2
2S3-1479J-00-00
21
COVER, 3
2S3-1479K-00-00
39
MUFFLER ASSY 1
2S3-14710-00-00
40
GASKET, MUFFLER
5VY-14714-00-00
41
BAND, MUFFLER
3D8-14715-00-00
43
CAP, SILENCER
2S3-14787-01-00
45
MUFFLER ASSY 2
2S3-14720-00-00
46
GASKET, MUFFLER
5VY-14714-00-00
49
CAP, SILENCER
2S3-14787-01-00
51
BOLT,SOCKET
91314-08040-00
53
BODY,3-1
2S3-1473A-00-00
56
BODY,4-1
2S3-1474A-00-00
67
CLAMP(M80)
90464-07209-00
