2016 Yamaha V-Max (VMX17GL) Air Induction System Diagram

← All diagrams

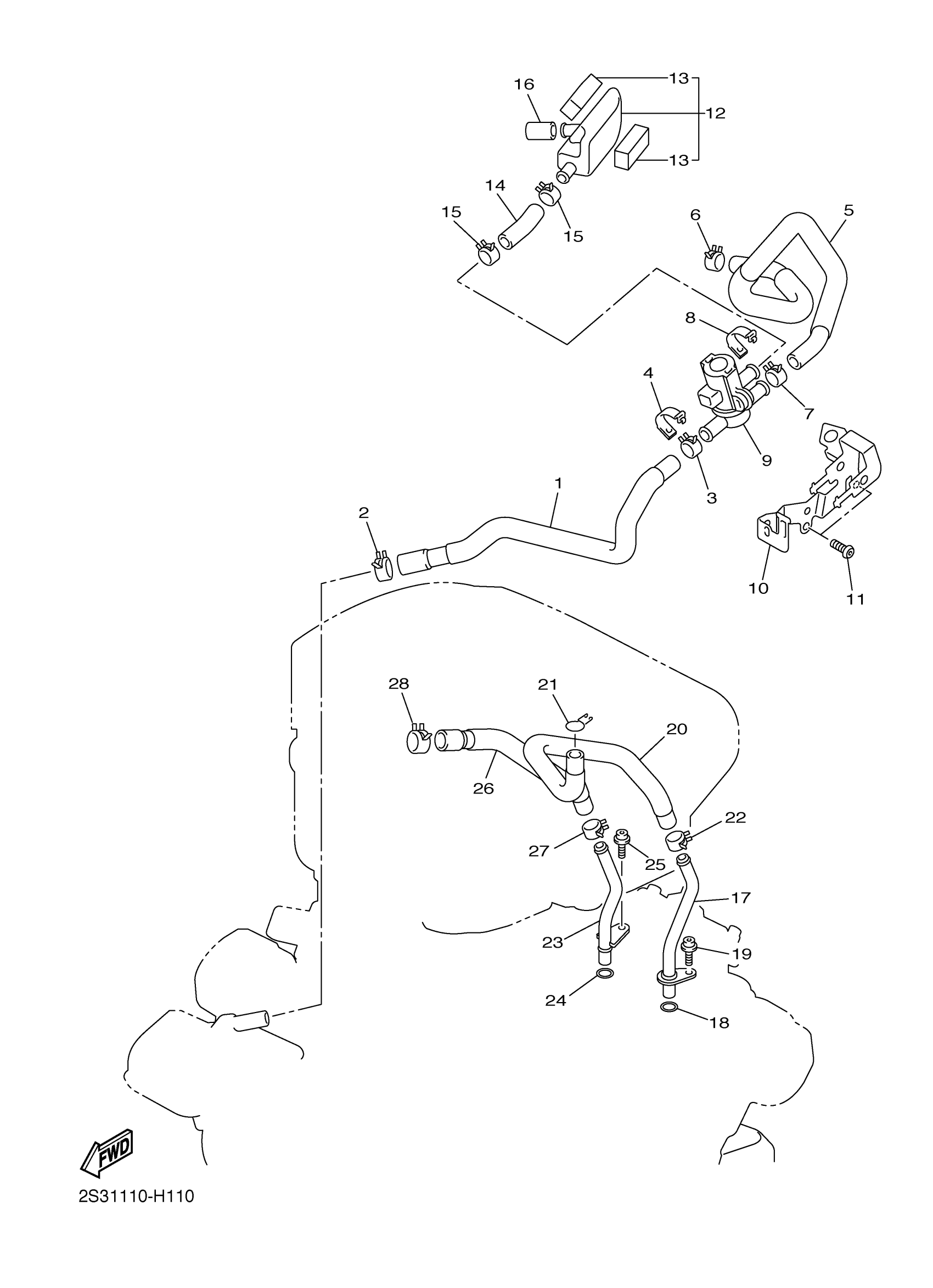

Find the part on the Air Induction System diagram for your 2016 Yamaha V-Max (VMX17GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha V-Max (VMX17GL) Air Induction System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, BEND 1

2S3-14881-00-00

—

$50.43

In stock

2

CLIP (4V3)

90467-19051-00

1

$2.95

In stock

3

CLIP(3TB)

90467-17128-00

1

$6.68

In stock

4

COVER 1

5JW-14723-00-00

—

$15.74

In stock

5

HOSE, BEND 2

2S3-14882-00-00

—

$67.14

In stock

6

CLIP (4V3)

90467-19051-00

1

$2.95

In stock

7

CLIP(3TB)

90467-17128-00

1

$6.68

In stock

8

COVER 1

5JW-14723-00-00

—

$15.74

In stock

9

AIR CUT VALVE ASSY

2S3-14840-00-00

—

$177.38

In stock

10

STAY

2S3-14834-00-00

—

$41.62

In stock

11

BOLT, BUTTON HEAD(4NK)

92014-06014-00

1
Out of stock

12

CHAMBER, AIR

2S3-13581-00-00

—

$29.29

In stock

13

DAMPER 1

2S3-14425-00-00

—

$1.00

In stock

14

HOSE

90445-18009-00

—

$3.11

In stock

15

CLIP(3TB)

90467-17128-00

1

$6.68

In stock

16

HOSE

90445-18010-00

—

$2.32

In stock

17

JOINT, BREATHER

2S3-11116-00-00

—

$40.60

In stock

18

O-RING(3LD)

93210-12790-00

—

$5.75

In stock

19

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

—

$6.26

In stock

20

PIPE, BREATHER 1

2S3-11166-00-00

—

$52.83

In stock

21

CLIP

90467-180A1-00

—
Out of stock

22

CLIP

90467-16009-00

—

$5.25

In stock

23

PIPE 1

2S3-1111J-00-00

—

$41.18

In stock

24

O-RING (26H)

93210-14579-00

—

$5.69

In stock

25

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

—

$6.26

In stock

26

PIPE 6

2S3-1116J-00-00

—

$31.92

In stock

27

CLIP

90467-21068-00

—

$5.94

In stock

28

CLIP (10V)

90467-23067-00

—

$3.86

In stock
