2009 Suzuki VLR1800 Side Lower Cover Diagram

← All diagrams

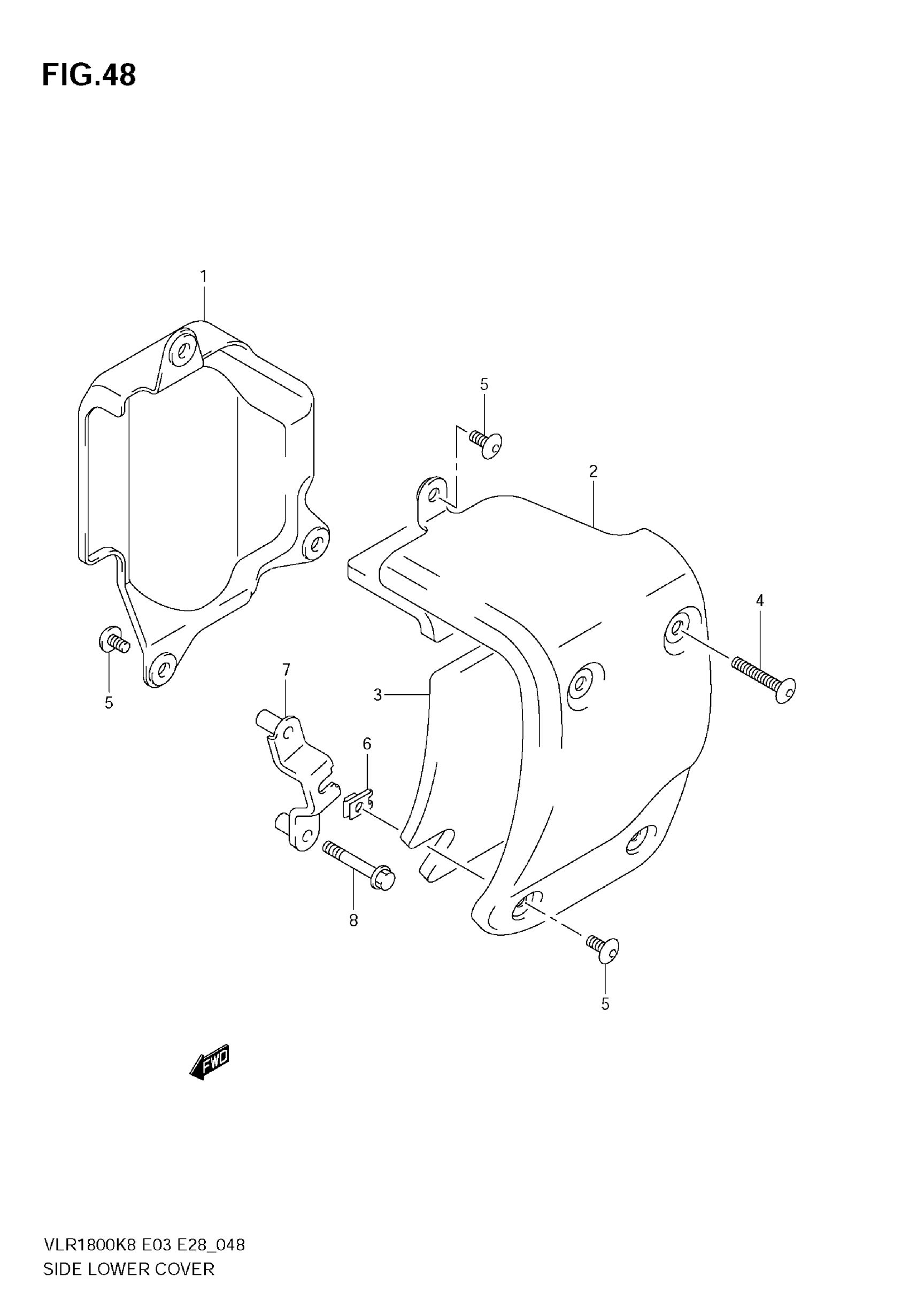

Find the part on the Side Lower Cover diagram for your 2009 Suzuki VLR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VLR1800 Side Lower Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE LOWER RH

47130-22H00

1
Out of stock

2

COVER, SIDE LOWER LH

47230-22H00

1
Out of stock

3

CUSHION, LH

47233-22H00

1
Out of stock

4

SCREW, LH

09139-06105

1
Out of stock

5

SCREW

09139-06027

7
Out of stock

6

NUT

09148-06018

1
Out of stock

7

BRACKET, LOWER

47240-22H00

1
Out of stock

8

BOLT

01550-0650A

2
Out of stock
