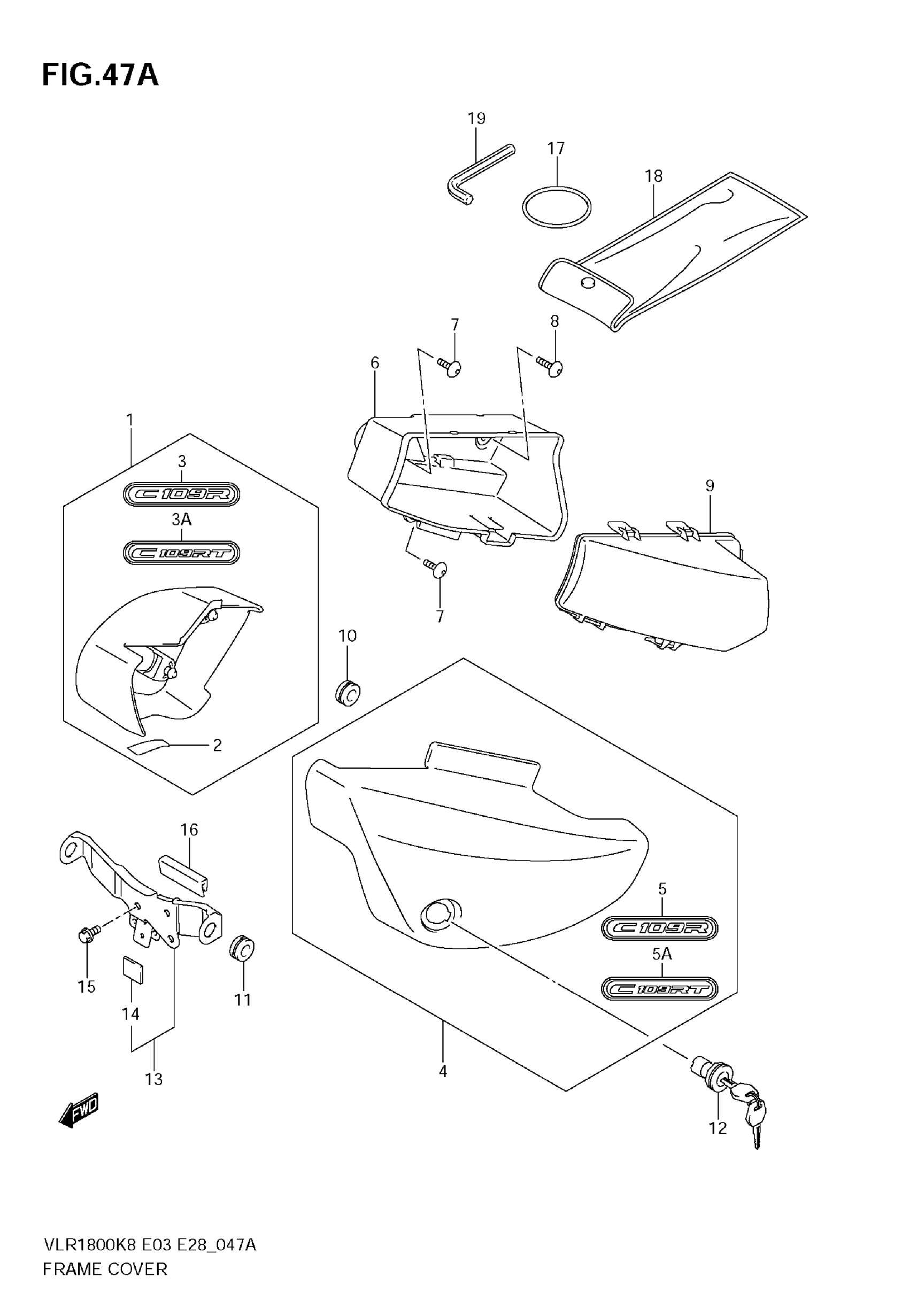

Find the part on the Frame Cover diagram for your 2009 Suzuki VLR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VLR1800 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (BLUE) | VLR1800

47110-22H00-YKZ

1
Out of stock

1

COVER,FRAME,R(B | VLR1800T This part replaces 47110-22HA0-YAY.

47110-22HA1-YAY

1
Out of stock

1

COVER, FRAME RH (SILVER) | VLR1800T; Includes Item(s) 2 - 3A

47110-22HA0-YSY

—
Out of stock

2

SHIELD, RH

47166-22H00

1
Out of stock

3

EMBLEM,C109R | VLR1800 This part replaces 68131-22H00.

68131-22H01

1
Out of stock

3A

EMBLEM,C109RT | VLR1800T This part replaces 68131-22HA0.

68131-22HA1

1
Out of stock

4

COVER, FRAME LH (BLACK) | VLR1800

47210-22H00-YAY

1
Out of stock

4

COVER, FRAME LH (BLUE) | VLR1800

47210-22H00-YKZ

1
Out of stock

4

COVER, FRAME LH (BLACK) | VLR1800T

47210-22HA0-YAY

1
Out of stock

4

COVER, FRAME LH (SILVER) | VLR1800T; Includes Item(s) 5 - 5A

47210-22HA0-YSY

1
Out of stock

5

EMBLEM,C109R | VLR1800 This part replaces 68131-22H00.

68131-22H01

1
Out of stock

5A

EMBLEM,C109RT | VLR1800T This part replaces 68131-22HA0.

68131-22HA1

1
Out of stock

6

BODY, LUGGAGE BOX

92211-22H00

1
Out of stock

7

SCREW

09139-06152

2

$5.77

In stock

8

SCREW

09139-06172

1
Out of stock

9

LID

92212-22H00

1
Out of stock

10

CUSHION

09320-08018

1
Out of stock

11

CUSHION

09320-08049

4

$3.32

In stock

12

LOCK SET, FRAME COVER

95700-07870

1

$171.82

In stock

13

BRACKET, FRAME COVER | Includes Item(s) 14

47120-22H00

1
Out of stock

14

CUSHION (10X30X2)

44894-24A00

1
Out of stock

15

BOLT

01550-0610A

2
Out of stock

16

MOLDING

47514-10F00

1

$10.42

In stock

17

1

$2.68

In stock

18

TOOL ASSY This part replaces 09800-21055.

09800-21102

1
Out of stock

19

HEXAGON, SPANNER 6

09816-00050

1
Out of stock

19

HEXAGON, SPANNER 5

09816-00059

1

$9.18

In stock
