2009 Suzuki VLR1800 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2009 Suzuki VLR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

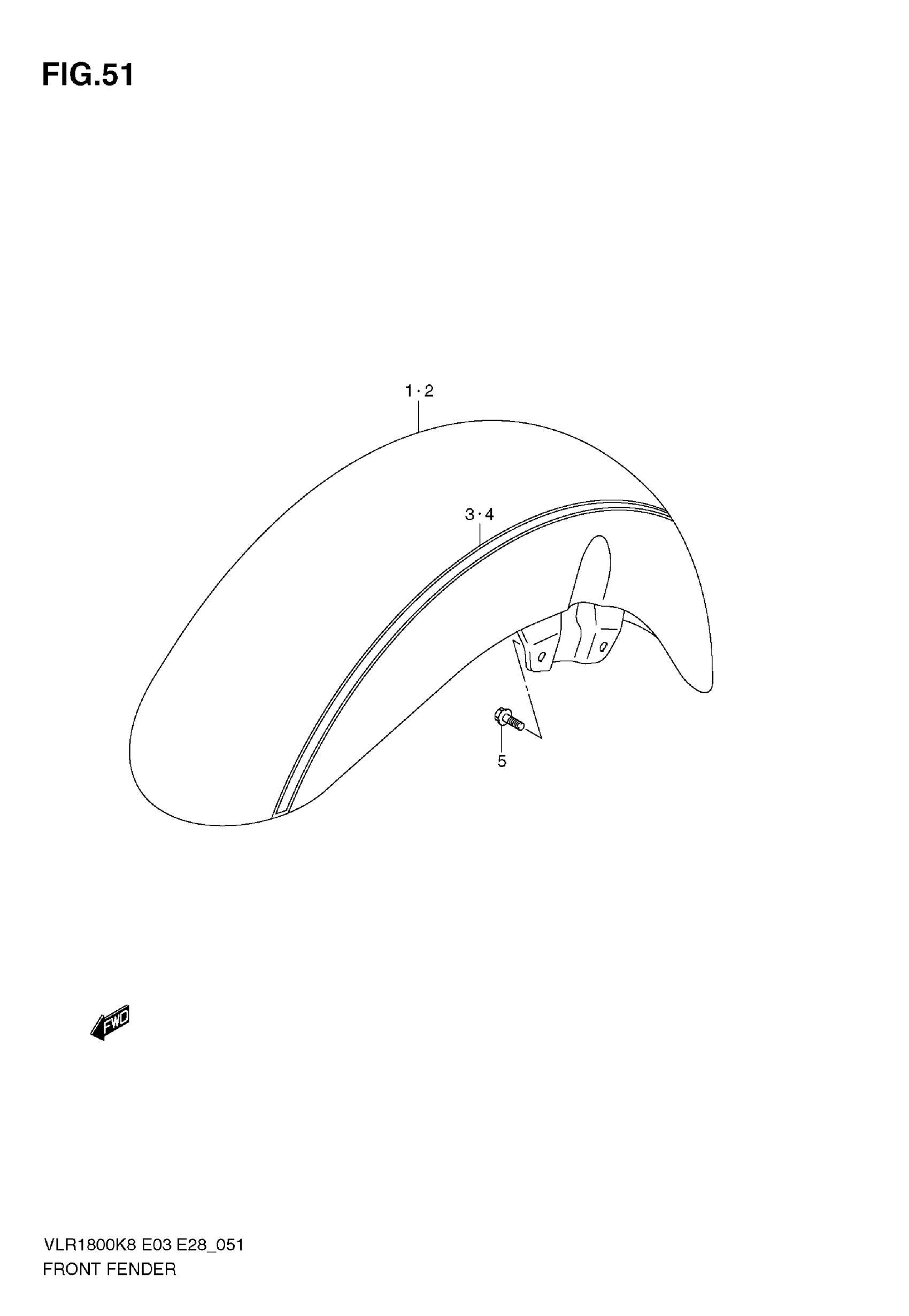

2009 Suzuki VLR1800 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER,FRONT | VLR1800K8/K9 This part replaces 53110-22H00-YAY.

53110-22H01-13L

1
Out of stock

1

NO DESCRIPTION AVAILABLE | VLR1800K8 This part replaces 53110-22H00-YMK.

53110-22H01-YMK

1
Out of stock

1

FENDER, FRONT (BLUE) | VLR1800K9

53110-22H00-YKZ

1
Out of stock

2

FENDER ASSY,FRO | VLR1800TK8 This part replaces 53100-22HA0-FKE.

53100-22HA1-FKE

1
Out of stock

2

FENDER ASSY,FRO | VLR1800TK8 This part replaces 53100-22HA0-FKF.

53100-22HA1-FKF

1
Out of stock

2

FENDER ASSY,FR | VLR1800TK9 This part replaces 53100-22HA0-CZW.

53100-22HA1-CZW

1
Out of stock

2

FENDER, FRONT (SILVER) | VLR1800TK9; Includes Item(s) 3 - 4

53100-22HA0-GRE

1
Out of stock

3

TAPE SET, RH | VLR1800TK8 FOR FKE

68150-22H00-FSF

1
Out of stock

3

TAPE SET, RH | VLR1800TK8 FOR FKF

68150-22H00-FSG

1
Out of stock

3

TAPE SET, RH | VLR1800TK9 FOR CZW

68150-22H00-GEV

1
Out of stock

3

TAPE SET, RH | VLR1800TK9 FOR GRE

68150-22H00-GSM

—
Out of stock

4

TAPE SET, LH | VLR1800TK8 FOR FKE

68750-22H00-FSF

1
Out of stock

4

TAPE SET, LH | VLR1800TK8 FOR FKF

68750-22H00-FSG

1
Out of stock

4

TAPE SET, LH | VLR1800TK9 FOR CZW

68750-22H00-GEV

1
Out of stock

4

TAPE SET, LH | VLR1800TK9 FOR GRE

68750-22H00-GSM

—
Out of stock

5

BOLT

01550-0816B

4
Out of stock
