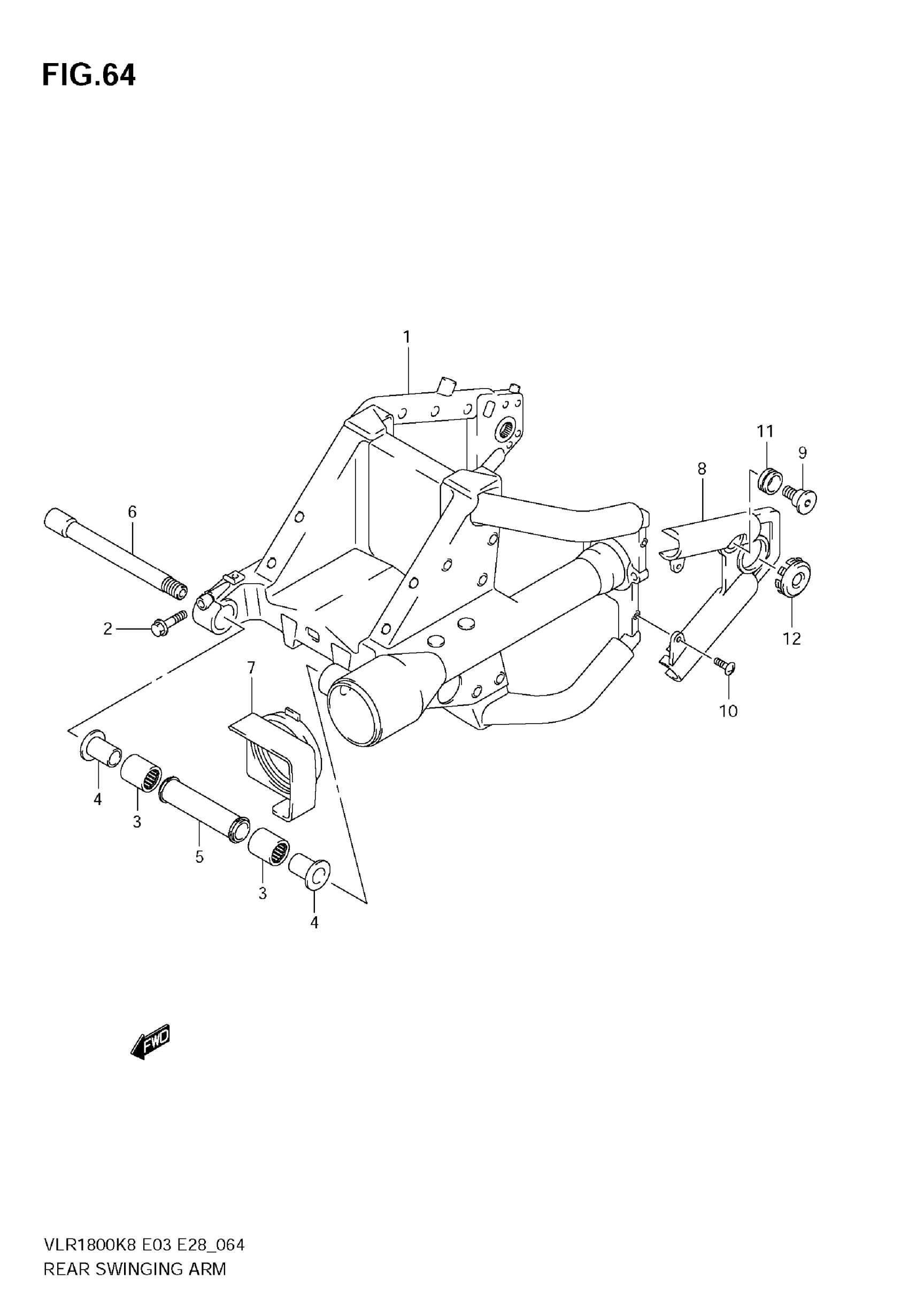

Suzuki VLR1800 (2009) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGINGARM, REAR (BLACK)

61100-22H00-019

Unavailable

2

BOLT, RR SWGARM PIVOT CLAMP

09103-08071

$6.15

3

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$27.91

4

SPACER,PIVOT BEARING

61251-31E00

$66.87

5

SPACER, RR SWGARM

61280-48G01

Unavailable

6

SHAFT, RR SWGARM PIVOT

61211-48G00

$163.22

7

BOOT,PROPELLER This part replaces 61372-48G00.

61372-48G01

$22.23

8

COVER, RR SWGARM, L (BLACK)

61126-22H00-019

Unavailable

9

BOLT, COVER REAR This part replaces 61127-41F10.

61127-41F20

$27.03

10

BOLT, RR SWGARM COVER FR

09139-06140

$4.62

11

CUSHION This part replaces 09320-22003.

09320-22004

$4.07

12

CAP, RR SWGARM COVER

41899-42F10

$21.28
