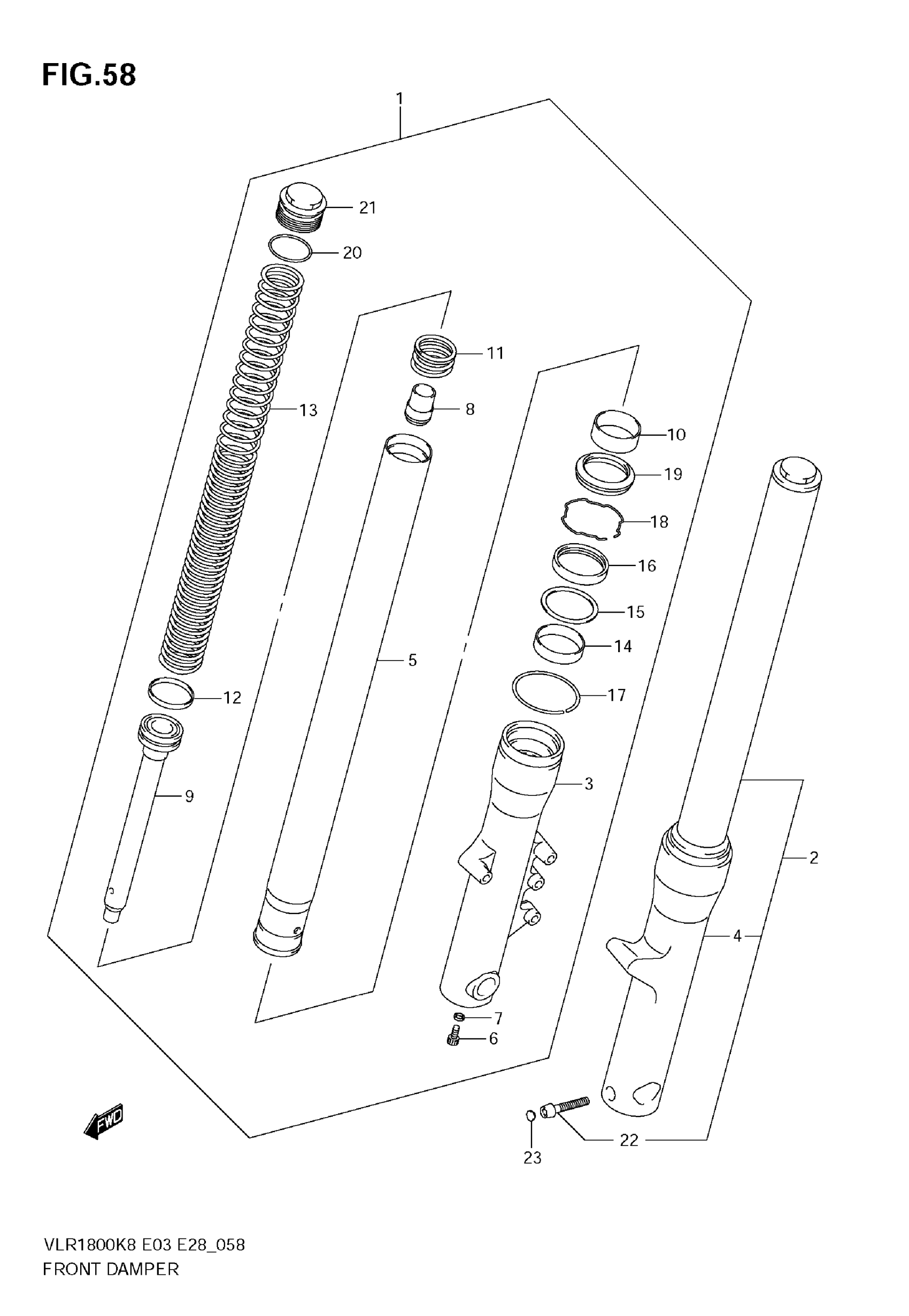

Suzuki VLR1800 (2009) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-22H00

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 22

51104-22H00

Unavailable

3

TUBE, OUTER RH

51131-22H00

Unavailable

4

TUBE, OUTER LH

51141-22H00

Unavailable

5

TUBE, INNER

51110-22H00

Unavailable

6

BOLT

51147-06F10

$6.75

7

GASKET

51148-36011

$3.26

8

PIECE, OIL LOCK

51195-22H00

Unavailable

9

CYLINDER

51146-22H00

Unavailable

10

BUSH, SLIDE

51121-36E80

$36.85

11

SPRING, REBOUND

51177-22H00

Unavailable

12

RING, PISTON

51196-29F20

Unavailable

13

SPRING

51171-22H00

Unavailable

14

BUSH, GUIDE

51167-36E80

$31.20

15

..SPACER,SEAL

51158-36E00

$10.58

16

SEAL, OIL

51153-36E60

$36.05

17

GUIDE, CASE

51469-22H00

Unavailable

18

RING, STOPPER

51165-36E00

$9.50

19

DUST SEAL

51571-22H00

$39.62

20

O RING

51117-36E00

$7.83

21

CAP

51121-22H00

$113.83

22

BOLT, L

07130-1040B

$5.83

23

CAP, OUTER TUBE, L

09250-08014

$2.80
