2009 Suzuki VLR1800 Handle Lever Diagram

← All diagrams

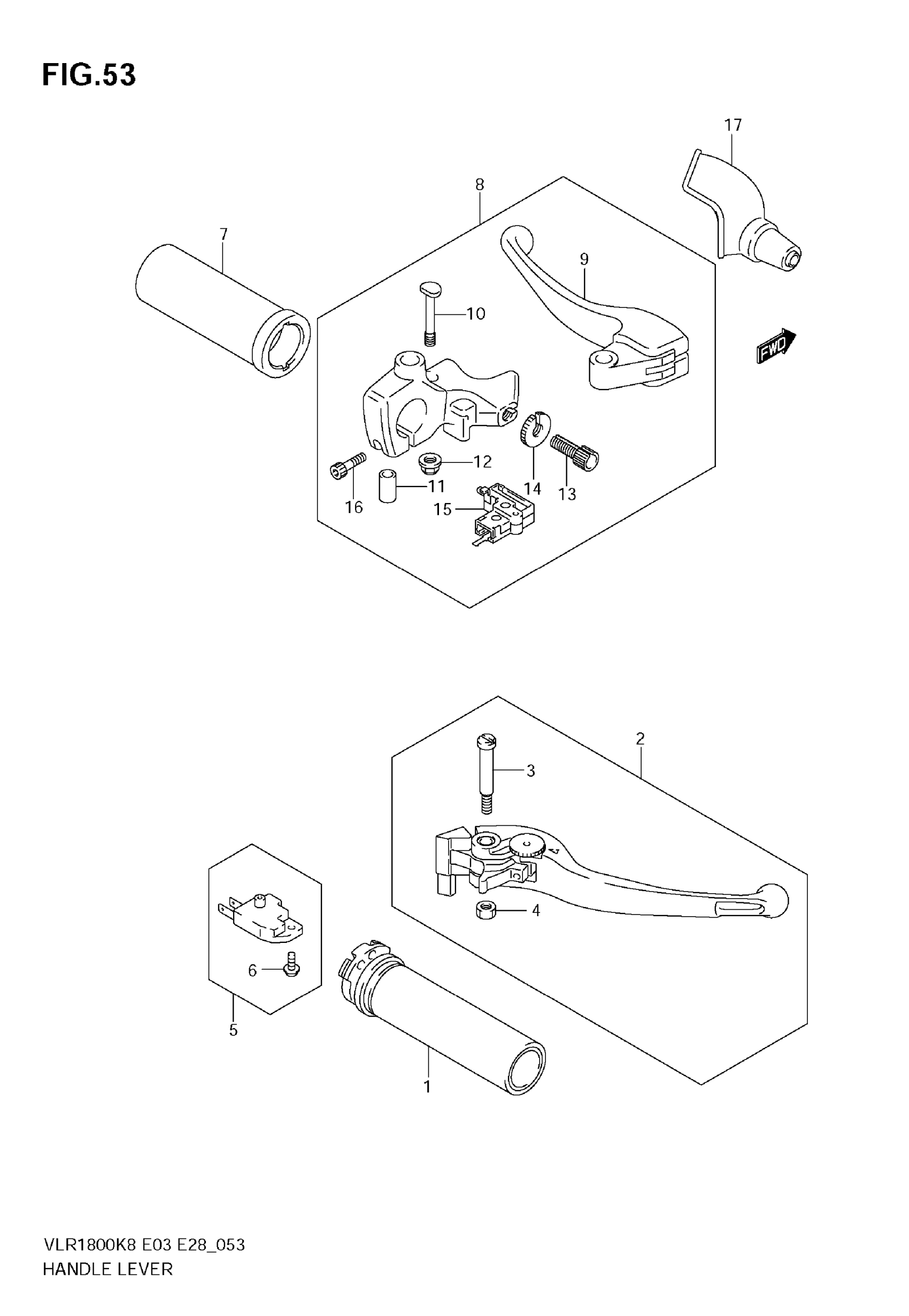

Find the part on the Handle Lever diagram for your 2009 Suzuki VLR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VLR1800 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$43.12

In stock

2

1

$50.95

In stock

3

BOLT, PIVOT

57431-48G00

1

$10.42

In stock

4

NUT

08319-2106A

1
Out of stock

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

1
Out of stock

6

SCREW

57465-17C00

1
Out of stock

7

1

$30.14

In stock

9

1

$34.51

In stock

10

BOLT, PIVOT

57531-48G00

1

$42.35

In stock

11

COLLAR

57623-48G00

1

$33.85

In stock

12

NUT

08319-3106B

1
Out of stock

13

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

1
Out of stock

14

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

1
Out of stock

15

.SWITCH ASSY,CLUTCH

57560-05A10

1

$31.62

In stock

16

BOLT

07130-0620A

1
Out of stock

17

1

$10.98

In stock
← Front Wheel Handlebar →

More Suspension & Wheels diagrams
