2018 Suzuki VL800L8 Radiator Hose Diagram

← All diagrams

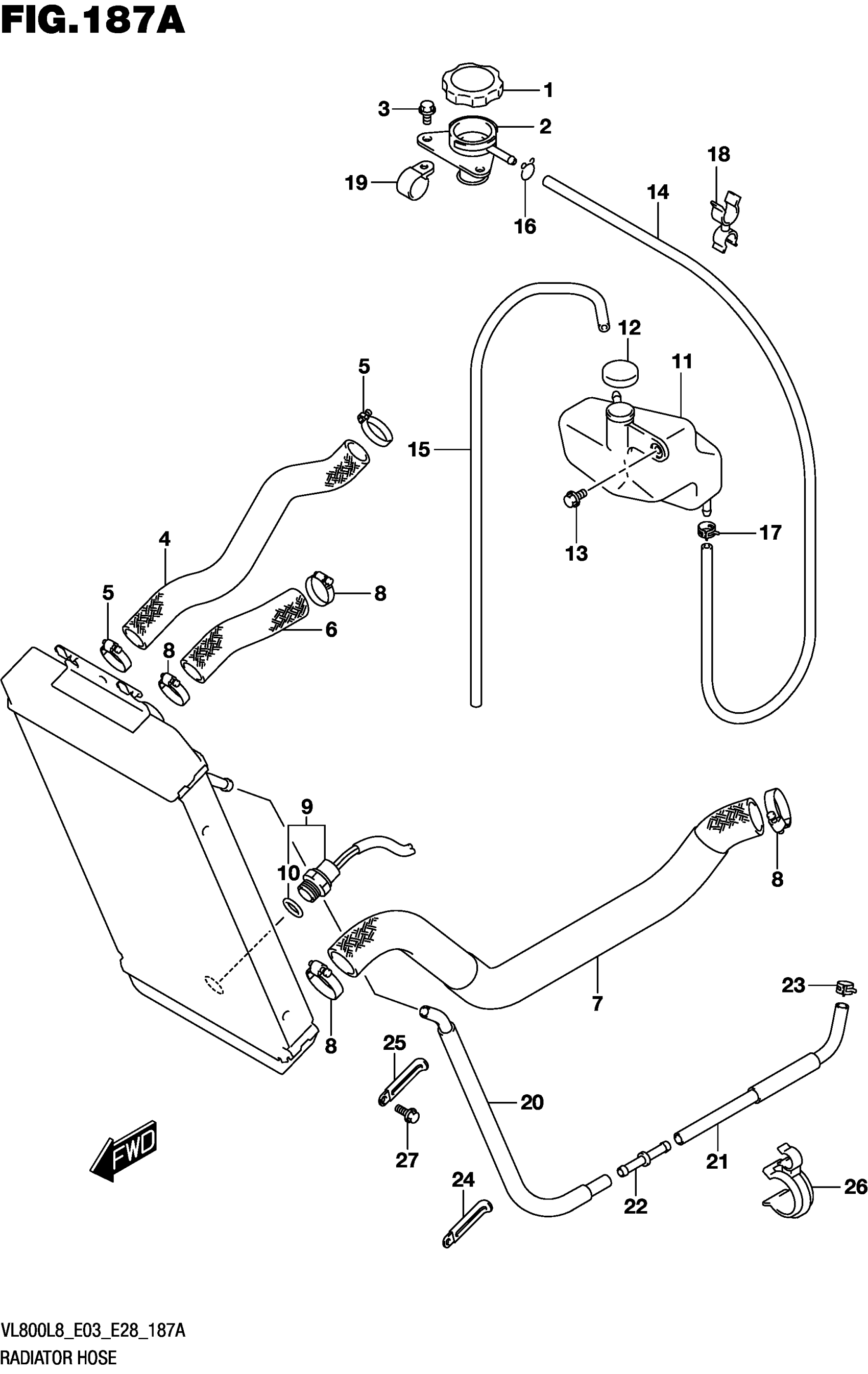

Find the part on the Radiator Hose diagram for your 2018 Suzuki VL800L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki VL800L8 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP,RADIATOR (1.1)

17730-12C30

1

$58.62

In stock

2

CONDUCTION,RDTR

17791-24D00

1

$69.02

In stock

3

BOLT

01547-0616A

1
Out of stock

4

HOSE,CONDUCTION

17853-41F00

1

$32.83

In stock

5

CLAMP

09402-28513

2
Out of stock

6

HOSE,RDTR INLET

17851-41F00

1

$21.62

In stock

7

HOSE,RDTR OUTLET

17852-41F02

1

$54.45

In stock

8

CLAMP

09402-32512

4
Out of stock

9

1

$48.28

In stock

10

.O RING

17689-50F00

1
Out of stock

11

TANK,RESERVOIR

17911-41F11

1

$75.47

In stock

12

.CAP,RESERVOIR TANK

17932-12C00

1

$4.46

In stock

13

BOLT (6X12)

09111-06085

2
Out of stock

14

HOSE,RSVR INLET

17981-41F11

1
Out of stock

15

1

$16.58

In stock

16

.CLIP

09401-08410

1
Out of stock

17

CLIP (ID:8.6)

09401-08411

1
Out of stock

18

CLAMP (ID:10+ID:8)

09408-00078

1
Out of stock

19

CLAMP

09403-08404

—
Out of stock

20

HOSE,WATER BYPASS

17855-41F00

1

$57.45

In stock

21

HOSE,WATER BYPASS

17856-41F00

1

$30.35

In stock

22

JOINT

09367-08001

1

$4.53

In stock

23

CLIP (ID:12.5)

09401-12405

4

$2.42

In stock

24

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

1
Out of stock

25

CLAMP (L:82)

09404-10205

1
Out of stock

26

CLAMP

09408-00177

2
Out of stock

27

BOLT (10X16)

09103-10393

1
Out of stock
