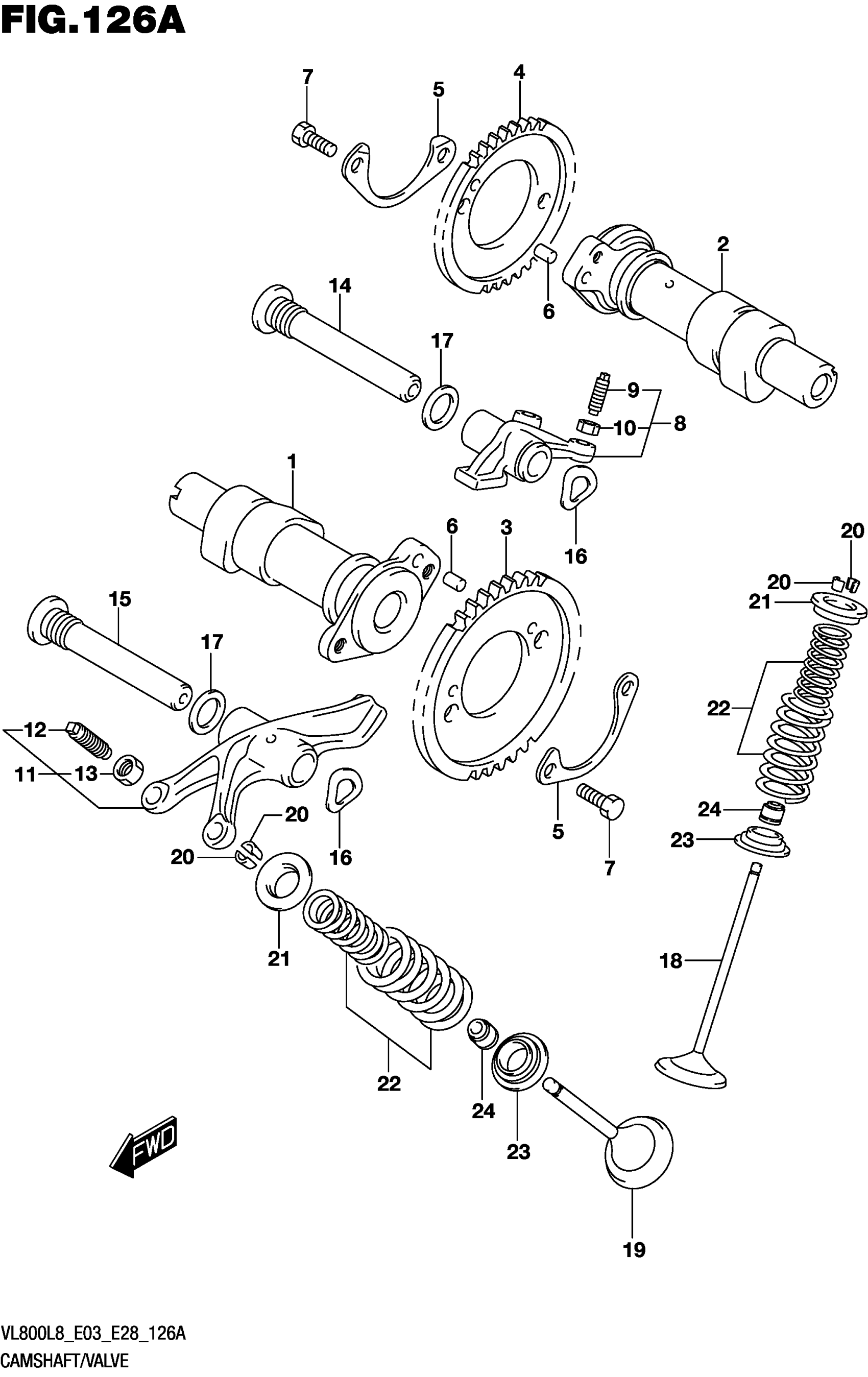

Suzuki VL800L8 (2018) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT,FRONT

12711-41F00

$155.47

2

CAMSHAFT,REAR

12713-41F00

$155.47

3

SPROCKET,CAMSHAFT (NT:46)

12741-41F00

$70.52

3

SPROCKET,CAMSHAFT (NT:46)

12741-41F00

$70.52

4

SPROCKET, CAMSHAFT REAR (NT:4

12741-37400

Unavailable

4

SPROCKET, CAMSHAFT REAR (NT:4

12741-37400

Unavailable

5

WASHER,SPROCKET

12747-44001

$2.60

6

PIN

04221-05109

$1.49

7

BOLT (6X12.5)

09100-06169

Unavailable

8

ARM,INTAKE VALVE ROCKER FR

12840-38A11

$98.68

9

.SCREW,TAPPET ADJUSTING

12842-38A00

$6.95

10

.NUT, ADJUSTING SCREW

12843-32400

$2.80

11

ARM,EX VALVE ROCKER FRONT

12850-38A10

$106.60

12

.SCREW,TAPPET ADJUSTING

12842-38A00

$6.95

13

.NUT, ADJUSTING SCREW

12843-32400

$2.80

14

SHAFT,VALVE ROCKER ARM

12861-39G00

Unavailable

15

SHAFT,VALVE ROCKER ARM

12871-39G00

Unavailable

15

SHAFT,VALVE ROCKER ARM

12871-39G00

Unavailable

16

WASHER (12.7X18.1X0.2)

09164-12018

$1.41

17

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

18

VALVE,INTAKE

12911-38A03

$48.38

19

VALVE,EXHAUST

12912-38A03

$57.13

20

COTTER, VALVE

12932-24400

$1.98

21

RETAINER,VALVE SPRING

12931-33201

$9.35

22

SPRING SET,VALVE

12920-38A00

$13.50

23

SEAT,VALV SPRING

12933-33201

$4.42

24

OIL SEAL (5.5X11X8.2)

09289-05015

$6.04
