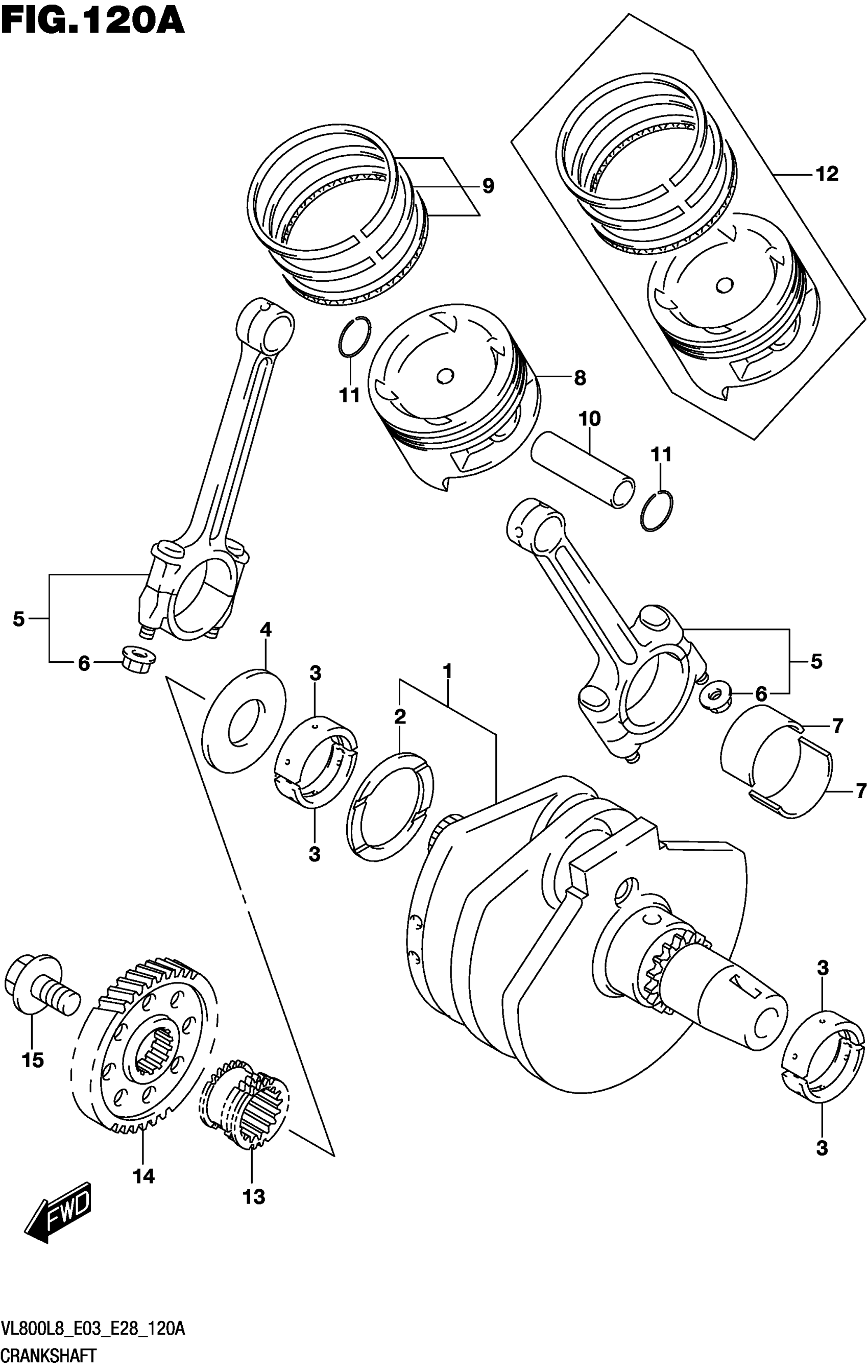

Find the part on the Crankshaft diagram for your 2018 Suzuki VL800L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki VL800L8 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT SET

12000-41830

1
Out of stock

2-1

.WASHER (1X64X1.94)

09160-48001

1
Out of stock

2-2

.WASHER (1X64X1.96)

09160-48002

1
Out of stock

2-3

.WASHER (1X64X1.99)

09160-48003

1
Out of stock

2-4

.WASHER (1X64X2.01)

09160-48004

1
Out of stock

2-5

.WASHER (1X64X2.04)

09160-48005

1
Out of stock

2-6

.WASHER (1X64X2.06)

09160-48006

1
Out of stock

2-7

.WASHER (1X64X2.09)

09160-48007

1
Out of stock

2-8

.WASHER (1X64X2.11)

09160-48008

1
Out of stock

2-9

.WASHER (1X64X2.14)

09160-48009

1
Out of stock

2-10

.WASHER (1X64X2.16)

09160-48010

1
Out of stock

3-1

BEARING,CRANKSHAFT

12229-39G00-0A0

4
Out of stock

3-2

BEARING,CRANKSHAFT

12229-39G00-0B0

4
Out of stock

3-3

BEARING,CRANKSHAFT

12229-39G00-0C0

4
Out of stock

4

WASHER,CRANK THRUST

12652-38A00

1
Out of stock

5

CONNROD ASSY

12160-45C30

2
Out of stock

6

.NUT

09159-09001

4
Out of stock

7-1

BEARING,CRANK PIN

12164-38E00-0A0

4
Out of stock

7-2

BEARING,CRANK PIN

12164-38E00-0B0

4
Out of stock

7-3

BEARING,CRANK PIN

12164-38E00-0C0

4
Out of stock

7-4

BEARING,CRANK PIN

12164-38E00-0D0

4
Out of stock

7-5

BEARING,CRANK PIN

12164-38E00-0E0

4
Out of stock

8

PISTON

12111-41F10-0F0

2
Out of stock

9

RING SET PISTON

12140-41F00

2
Out of stock

10

PIN,PISTON

12151-24A00

2
Out of stock

11

CIRCLIP

09381-20004

4
Out of stock

12

PISTON SET (OS:0.5) | OPT

12100-41F10-050

2
Out of stock

13

SPROCKET,CAM CHAIN DRIVE,R (N

12731-38A00

1
Out of stock

13

SPROCKET,CAM CHAIN DRIVE,R (N

12731-38A00

1
Out of stock

14

GEAR,PRIMARY DRIVE (NT:42)

21111-38A00

1
Out of stock

15

BOLT (12X28)

09103-12013

1
Out of stock
