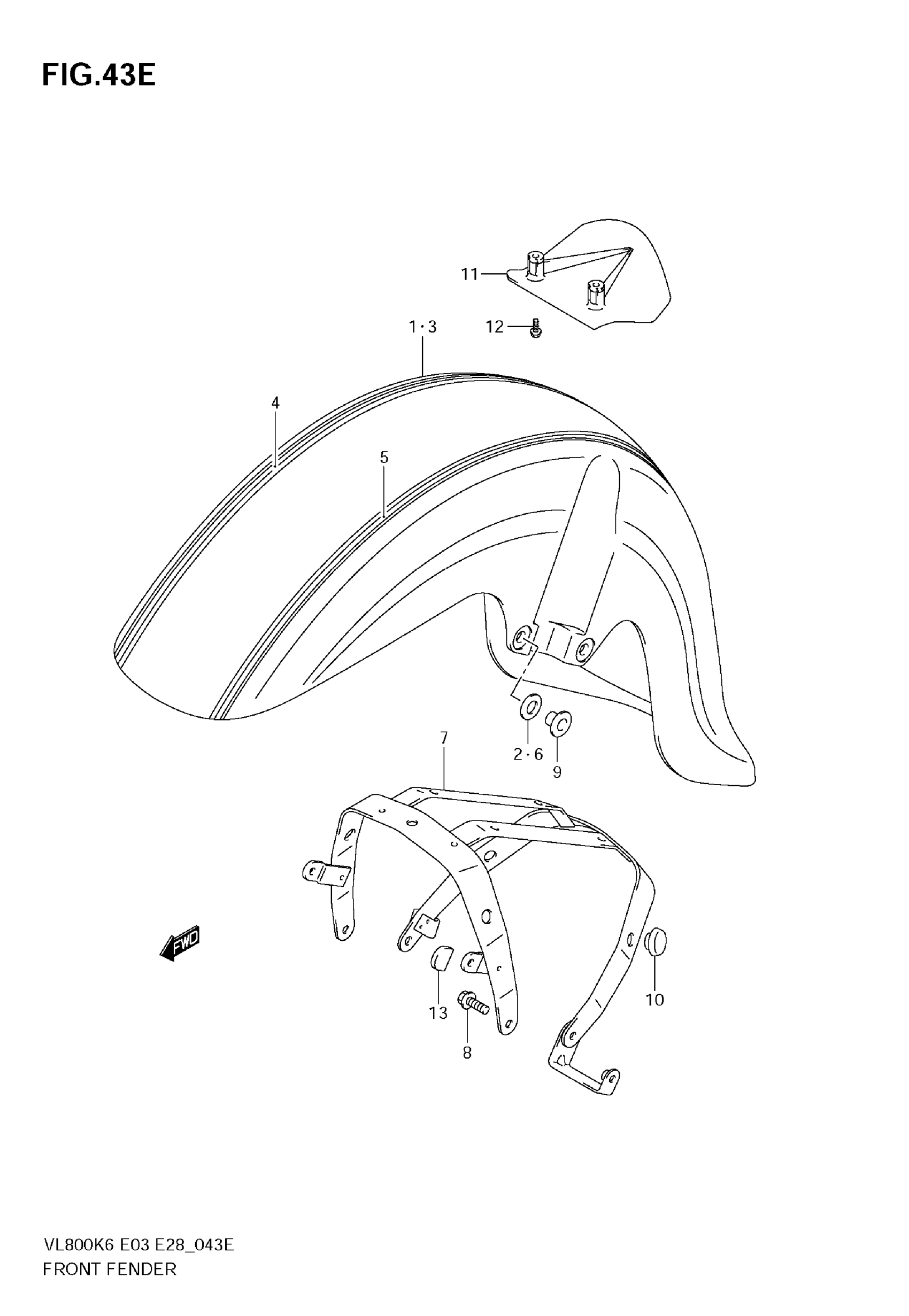

Suzuki VL800 (2009) FRONT FENDER (MODEL K9) Diagram

#

Description
Price

1

FENDER COMP, FR | VL800 This part replaces 53110-43H00-YAY.

53110-43H02-YAY

$799.58

1

FENDER COMP,FRO | VL800; Includes Item(s) 2 This part replaces 53110-43H00-YMK.

53110-43H02-YMK

$602.08

2

CUSHION | VL800

53121-41FA0

$6.15

3

FENDER,FRONT | VL800C This part replaces 53110-43HA0-GDV.

53110-43HA2-GDV

$816.15

3

FENDER, FR | VL800C This part replaces 53110-43HA0-GDU.

53110-43HA2-GDU

Unavailable

3

FENDER,FR | VL800T This part replaces 53110-43HA0-FKE.

53110-43HA2-FKE

$802.38

3

FENDER COMP,FRT | VL800T; Includes Item(s) 4 - 6 This part replaces 53110-43HA0-GDT.

53110-43HA2-GDT

$385.52

4

TAPE SET, RH | VL800C FOR GDV

68150-43H00-GNT

Unavailable

4

TAPE SET, RH | VL800C FOR GDU

68150-43H00-GNV

Unavailable

4

TAPE SET, RH | VL800T FOR FKE

68150-43H00-GKR

Unavailable

4

TAPE SET, RH | VL800T FOR GDT

68150-43H00-GPC

Unavailable

5

TAPE SET, LH | VL800C FOR GDV

68750-43H00-GNT

Unavailable

5

TAPE SET, LH | VL800C FOR GDU

68750-43H00-GNV

Unavailable

5

TAPE SET, LH | VL800T FOR FKE

68750-43H00-GKR

$52.65

5

TAPE SET, LH | VL800T FOR GDT

68750-43H00-GPC

Unavailable

6

CUSHION | VL800C/T

53121-41FA0

$6.15

7

BRACE, FRONT FENDER

53120-43H10

$155.58

8

BOLT

01547-0620A

$2.01

9

WASHER,FRONT FENDER

53276-41F10

$10.70

10

CUSHION

09321-10007

$2.80

11

WING, FRONT

53181-41F00

$17.96

12

BOLT

09113-06001

$2.75

13

CUSHION, BRACE

09329-18001

$1.89
