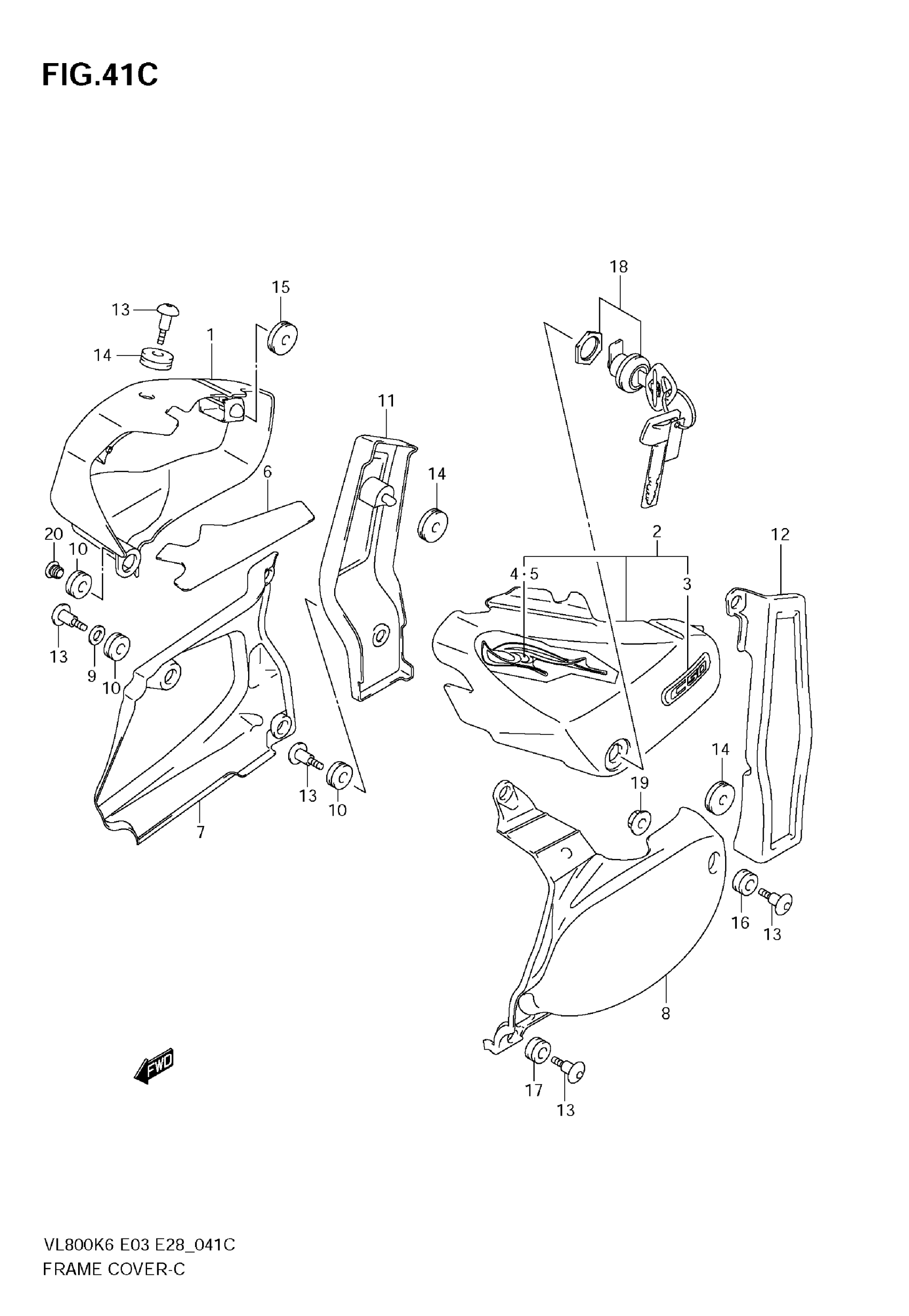

Suzuki VL800 (2009) FRAME COVER (VL800CK7) Diagram

#

Description
Price

1

COVER, FRAME RH (GRAY) | E3,E28

47110-41FH0-YHG

Unavailable

1

COVER, FRAME RH (GRAY) | E33

47110-41FJ0-YHG

Unavailable

2

COVER,SIDE,L | Includes Item(s) 3 - 5 This part replaces 47210-41FH0-YHG.

47211-41F01

$51.13

3

EMBLEM, "C50" This part replaces 68131-41F40.

68131-41F41

$37.73

4

TAPE, RH

68135-41F00-EAY

Unavailable

5

TAPE, LH

68145-41F00-EAY

Unavailable

6

SHIELD, FRAME COVER RH

47166-41F00

$20.13

7

COVER, SIDE LOWER RH

47130-41F00

Unavailable

8

COVER, SIDE LOWER LH

47231-41F00

$429.23

9

WASHER

09160-10123

$2.13

10

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

11

COVER, SIDE REAR RH (BLACK)

47141-41F01-019

$155.65

12

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

$154.90

13

SCREW

09139-06126

$3.65

14

CUSHION

09320-08018

$2.80

15

CUSHION BOX REAR

09320-08028

$2.80

16

CUSHION

09320-09501

$2.06

17

CUSHION This part replaces 09320-09026.

09320-09062

$2.14

18

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$69.50

19

NUT This part replaces 08316-10063.

08316-1006B

$2.50

20

CAP This part replaces 09250-09001.

09250-09008

$1.56
