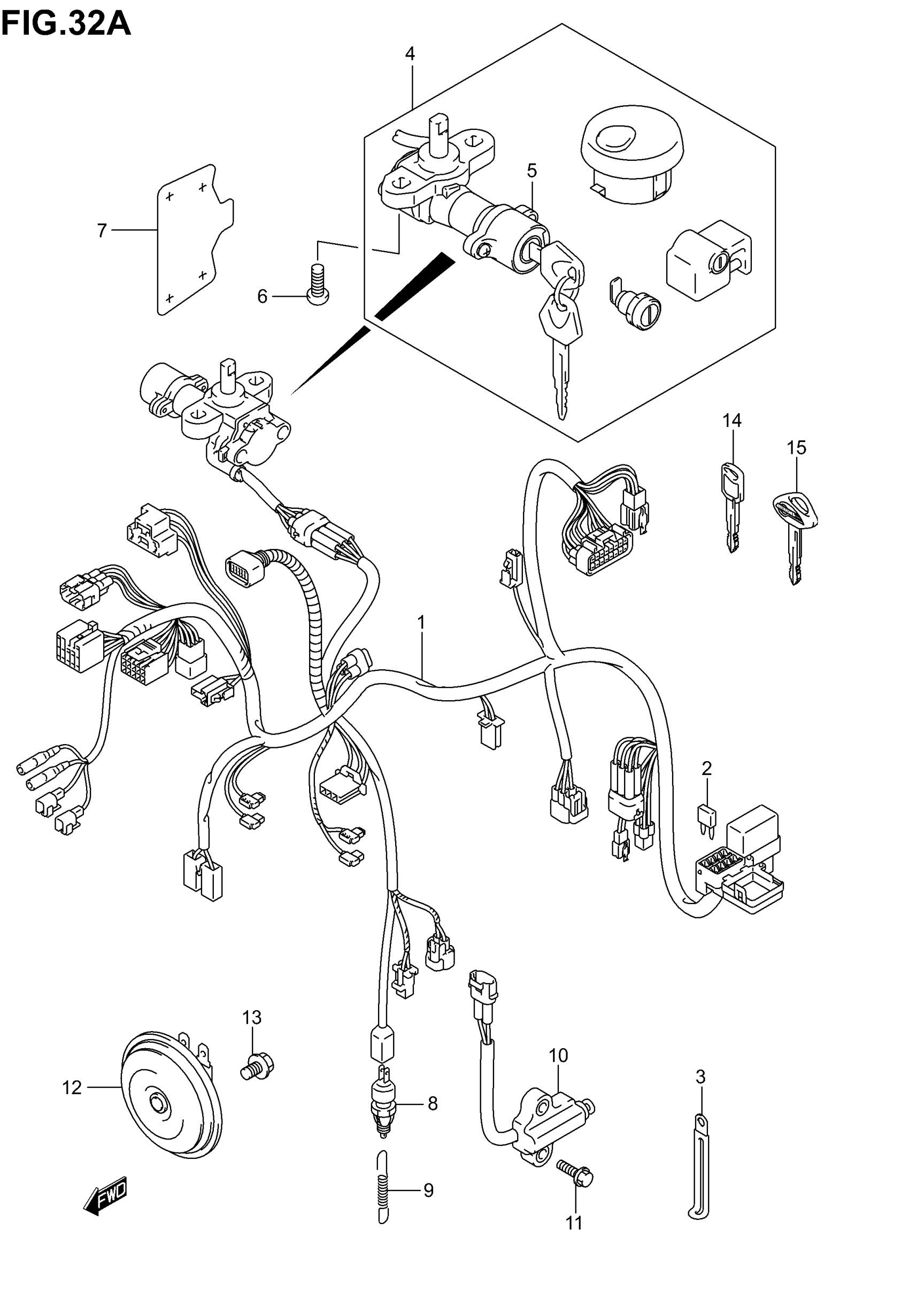

Find the part on the Wiring Harness diagram for your 2005 Suzuki VL800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki VL800 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | Includes Item(s) 2 - 2

36610-41F80

1
Out of stock

2

FUSE (10A)

09481-10501

4
Out of stock

2

FUSE (15A)

09481-15501

2
Out of stock

3

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

2
Out of stock

4

LOCK SET | VL800 This part replaces 37000-41820.

37000-41821

1
Out of stock

4

LOCK SET | VL800Z

37000-41880

1
Out of stock

4

LOCK SET | VL800 E33

37000-41830

1
Out of stock

4

LOCK SET | VL800Z E33; Includes Item(s) 5 - 5

37000-41890

1
Out of stock

5

LOCK ASSY,STEER | VL800 This part replaces 37100-41F10.

37100-41F11

1
Out of stock

5

LOCK ASSY, STEERING | VL800Z

37100-41F30

1
Out of stock

6

SCREW, STEERING LOCK

09139-08016

2
Out of stock

7

PROTECTOR, IGNITION SWITCH This part replaces 37187-41F00.

37187-41F10

1
Out of stock

8

SWITCH ASSY, STOP LAMP

37740-24A00

1
Out of stock

9

SPRING, STOP LAMP

09443-06073

1
Out of stock

10

SWITCH ASSY,SIDE STAND This part replaces 37840-41F00.

37840-41F02

1
Out of stock

11

BOLT This part replaces 01550-06203.

01550-0620A

2
Out of stock

12

HORN ASSY

38500-41F00

1
Out of stock

13

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

1
Out of stock

14

KEY, BLANK | OPT

37146-33E00

1
Out of stock

15

KEY, BLANK (VOLUSIA) | OPT,VL800Z

37146-41F30

1
Out of stock
