2005 Suzuki VL800 Frame Cover Diagram

← All diagrams

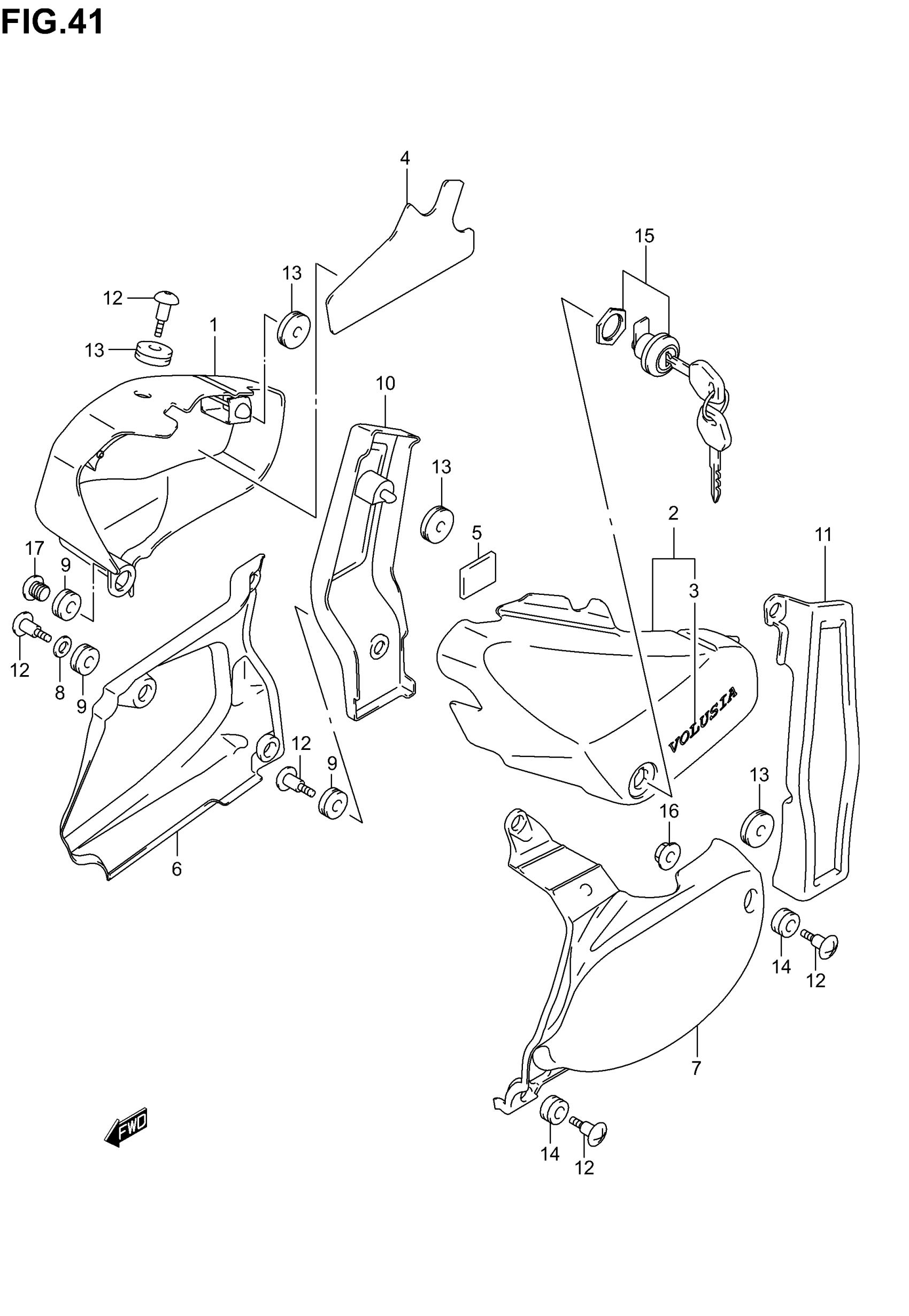

Find the part on the Frame Cover diagram for your 2005 Suzuki VL800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki VL800 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER COMP,SIDE | E3,E28 FOR 33J,FP3,FP4 This part replaces 47110-41F00-33J.

47111-41F04-13L

1
Out of stock

1

COVER, FRAME RH (BLUE) | E3 FOR FP5

47110-41F00-YM7

—
Out of stock

1

COVER, FRAME RH (BLACK) | E33 FOR 33J,FP3,FP4

47110-41F20-33J

1
Out of stock

1

COVER, FRAME RH (BLUE) | E33 FOR FP5

47110-41F20-YM7

—
Out of stock

2

COVER, FRAME LH (BLACK) | E3,E28 FOR 33J,FP3,FP4

47210-41F00-33J

1
Out of stock

2

COVER, FRAME LH (BLUE) | E3 FOR FP5; Includes Item(s) 3 - 3

47210-41F00-YM7

—
Out of stock

3

EMBLEM | FOR 33J

68131-41F00-FW8

2
Out of stock

3

EMBLEM | FOR YM7

68131-41F00-FW7

2
Out of stock

4

SHIELD, FRAME COVER RH

47166-41F00

1
Out of stock

5

CUSHION, LH

93676-80020

1
Out of stock

6

COVER, SIDE LOWER RH

47130-41F00

1
Out of stock

7

COVER, SIDE LOWER LH

47231-41F00

1
Out of stock

8

WASHER

09160-10123

3

$2.31

In stock

9

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

3
Out of stock

10

COVER, SIDE REAR RH (BLACK) This part replaces 47141-41F00-019.

47141-41F01-019

1
Out of stock

11

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

1
Out of stock

12

SCREW This part replaces 09139-06087.

09139-06126

15
Out of stock

13

CUSHION

09320-08018

12
Out of stock

14

CUSHION

09320-09501

15
Out of stock

15

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

1
Out of stock

16

NUT This part replaces 08316-10063.

08316-1006B

1
Out of stock

17

CAP This part replaces 09250-09001.

09250-09008

1
Out of stock
