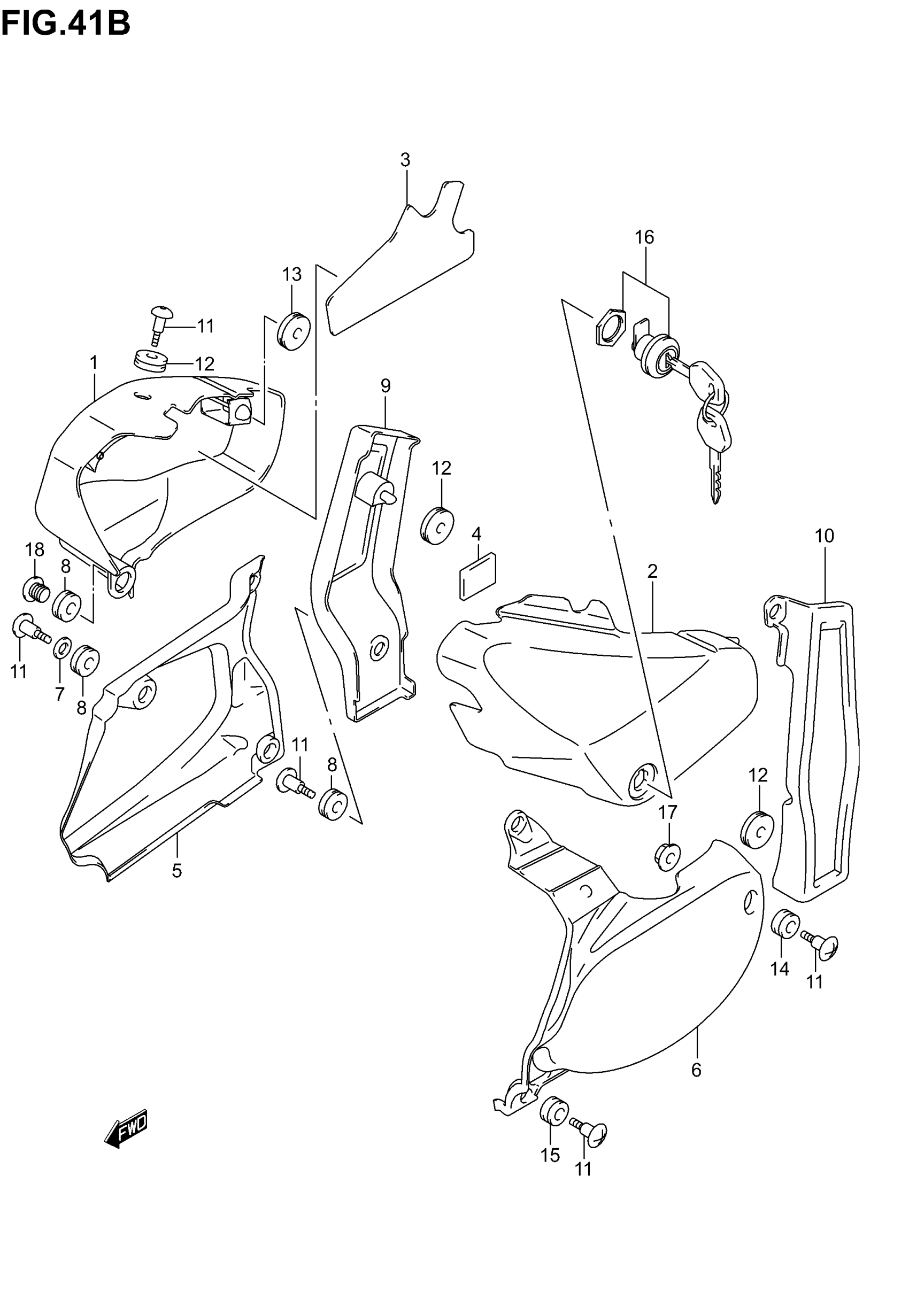

Suzuki VL800 (2005) FRAME COVER (MODEL K3) Diagram

#

Description
Price

1

COVER,SIDE,R(BL | E3,E28 FOR 33J This part replaces 47110-41F30-33J.

47110-41F31-33J

Unavailable

1

COVER COMP,SIDE | E3,E28 FOR KT9 This part replaces 47110-41F30-YM6.

47111-41F04-13L

Unavailable

1

COVER, FRAME RH (GREEN) | E3,E28 FOR KU1

47110-41F30-YV4

Unavailable

1

COVER, FRAME RH (WHITE) | VL800ZK3 E3,E28

47110-41F30-YC3

Unavailable

1

COVER, FRAME RH (BLACK) | E33 FOR 33J

47110-41F40-33J

Unavailable

1

COVER, FRAME RH (SILVER) | E33 FOR KT9

47110-41F40-YM6

Unavailable

1

COVER, FRAME RH (GREEN) | E33 FOR KU1

47110-41F40-YV4

Unavailable

1

COVER, FRAME RH (WHITE) | VZ800ZK3 E33

47110-41F40-YC3

Unavailable

2

COVER,SIDE,L | FOR 33J This part replaces 47211-41F00-33J.

47211-41F01

$51.13

2

COVER,SIDE,L | FOR KT9 This part replaces 47211-41F00-YM6.

47211-41F01

$51.13

2

COVER,SIDE,L(GR | FOR KU1 This part replaces 47211-41F00-YV4.

47211-41F01-YV4

Unavailable

2

COVER,SIDE,L | VL800ZK3 This part replaces 47211-41F00-YC3.

47211-41F01

$51.13

3

SHIELD, FRAME COVER RH

47166-41F00

$20.13

4

CUSHION, LH

93676-80020

$2.80

5

COVER, SIDE LOWER RH

47130-41F00

Unavailable

6

COVER, SIDE LOWER LH

47231-41F00

$429.23

7

WASHER

09160-10123

$2.13

8

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

9

COVER, SIDE REAR RH (BLACK) This part replaces 47141-41F00-019.

47141-41F01-019

$155.65

10

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

$154.90

11

SCREW

09139-06126

$3.65

12

CUSHION

09320-08018

$2.80

13

CUSHION BOX REAR

09320-08028

$2.80

14

CUSHION

09320-09501

$2.06

15

CUSHION This part replaces 09320-09026.

09320-09062

$2.14

16

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$69.50

17

NUT This part replaces 08316-10063.

08316-1006B

$2.50

18

CAP This part replaces 09250-09001.

09250-09008

$1.56
