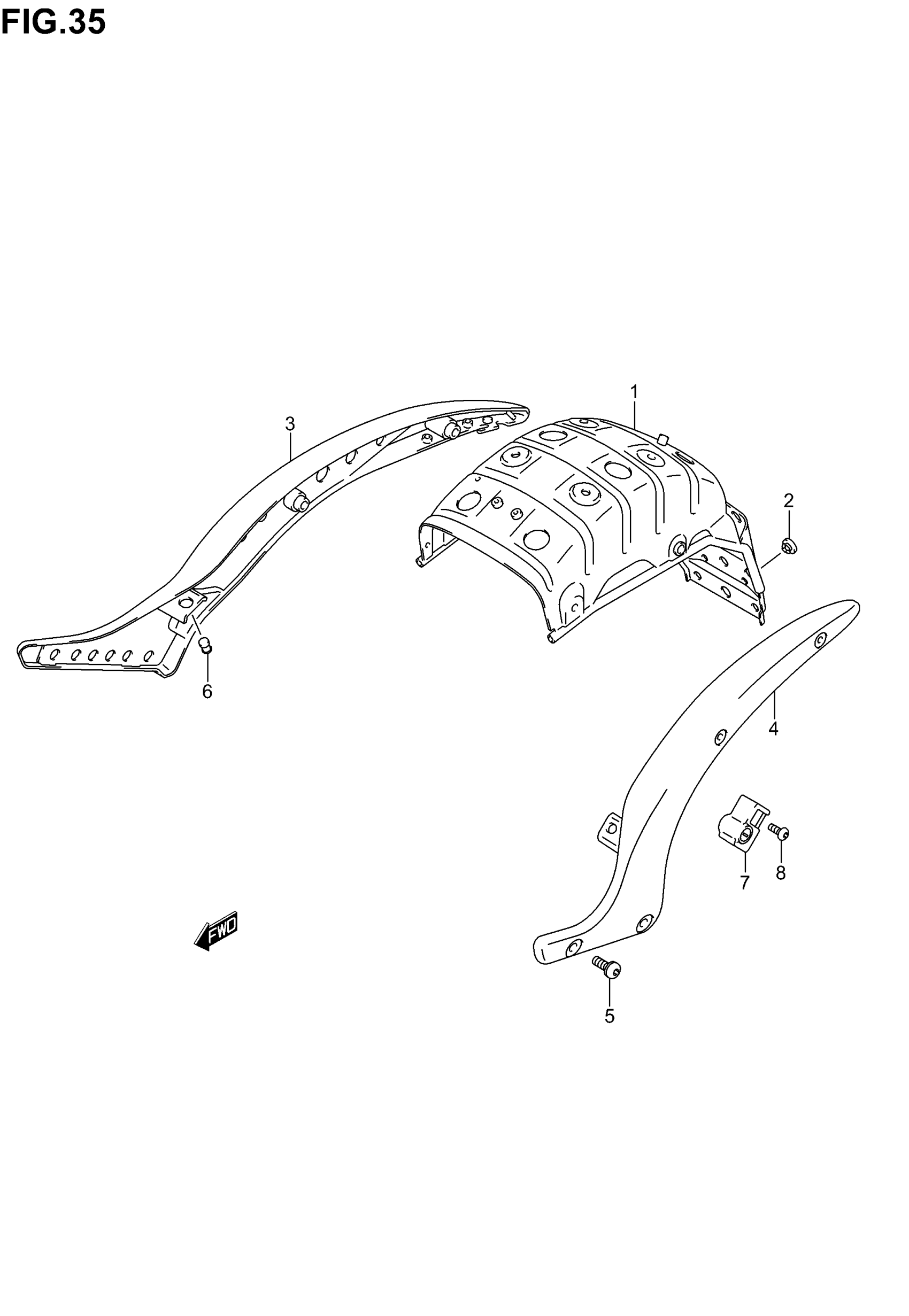

Suzuki VL800 (2005) FRAME BRACE Diagram

#

Description

Price

1

BRACE, REAR FRAME | MODEL K1/K2/K3/K4 This part replaces 41580-41F00.

41580-41F10

$370.25

1

BRACE, REAR FRAME | MODEL K5

41580-41F10

$370.25

2

CUSHION This part replaces 09321-08022.

09321-08026

$0.74

3

GRIP, FRAME HANDLE RH

41610-41F00

$500.10

4

GRIP, FRAME HANDLE LH

41620-41F00

$500.10

5

BOLT | MODEL K1 This part replaces 41629-10F11.

09139-10003

$6.34

5

BOLT | MODEL K2/K3/K4/K5

09139-10003

$6.34

6

CUSHION

09250-07004

$3.72

7

LOCK SET HELMET This part replaces 95700-41820.

95700-41821

$171.60

8

SCREW

09139-06089

$3.30
