2009 Suzuki VL1500 Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 2009 Suzuki VL1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

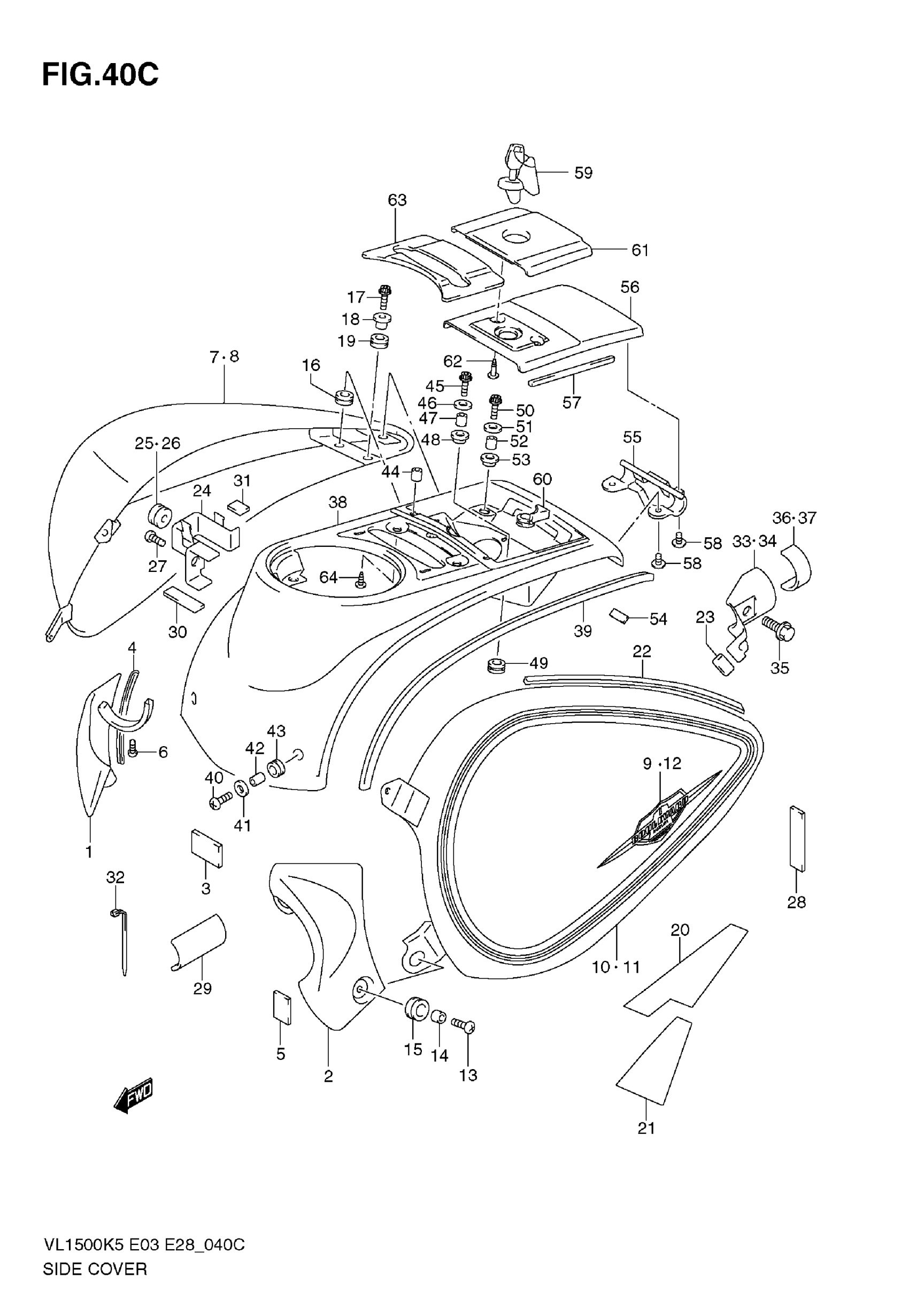

2009 Suzuki VL1500 Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME HEAD RH

47510-10F01

1
Out of stock

2

COVER, FRAME HEAD LH

47520-10F02

1
Out of stock

3

CUSHION This part replaces 47829-10F00.

44612-13600

4
Out of stock

4

MOLDING

47514-10F00

2
Out of stock

5

TAPE

47161-10D00

2
Out of stock

6

SCREW

09139-06028

2

$3.58

In stock

7

COVER ASSY, SIDE RH (BLACK) | VL1500

47800-10F50-YAY

1
Out of stock

7

COVER ASSY, SIDE RH (GRAY) | VL1500

47800-10F50-YLF

1
Out of stock

8

COVER ASSY, SIDE RH | VL1500T

47800-10FC0-EAJ

1
Out of stock

8

COVER ASSY, SIDE RH | VL1500T

47800-10FC0-FKE

1
Out of stock

9

EMBLEM, RH

68111-10FA1

1
Out of stock

10

COVER ASSY, SIDE LH (BLACK) | VL1500

47900-10F50-YAY

1
Out of stock

10

COVER ASSY, SIDE LH (GRAY) | VL1500

47900-10F50-YLF

1
Out of stock

11

COVER ASSY, SIDE LH | VL1500T

47900-10FC0-EAJ

1
Out of stock

11

COVER ASSY, SIDE LH | VL1500T

47900-10FC0-FKE

1
Out of stock

12

EMBLEM, LH

68121-10FA1

1
Out of stock

13

SCREW

09139-06030

2
Out of stock

14

SPACER

09180-06260

2
Out of stock

15

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

2
Out of stock

16

CUSHION,SIDE UP This part replaces 47822-10F00.

47822-10F01

2
Out of stock

17

BOLT, INNER

07120-0620A

2
Out of stock

18

WASHER

47827-10F00

2
Out of stock

19

CUSHION,SIDE UP This part replaces 47826-10F00.

47826-10F01

2
Out of stock

20

CUSHION, SIDE UPPER RH NO.1

47835-10FA0

1
Out of stock

21

CUSHION, SIDE UPPER RH NO.2

47836-10FA0

1
Out of stock

22

MOLDING, SIDE UPPER LOWER

47837-10FA0

2
Out of stock

23

CUSHION, BRACKET

47166-10FA0

2
Out of stock

24

BRACKET, SIDE COVER RH

47850-10FA0

1
Out of stock

25

CUSHION, RH

09321-10034

1
Out of stock

26

CUSHION

09321-10012

1
Out of stock

27

BOLT

01550-0616B

1
Out of stock

28

TAPE, SHIELD

47164-10FA0

2
Out of stock

29

CUSHION, SIDE FRONT

47165-10FA0

2
Out of stock

30

MOLDING

31812-29F00

2

$6.40

In stock

31

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

1
Out of stock

32

CLAMP

09407-18402

1
Out of stock

33

BRACKET, SIDE UPPER RH

47839-10FA0

1
Out of stock

34

BRACKET, SIDE UPPER LH

47849-10FA0

1
Out of stock

35

BOLT

01550-0616B

2
Out of stock

36

.CUSHION,BRACKET NO.1 This part replaces 47161-10FA0.

47161-10FA1

1
Out of stock

37

CUSHION, NO.2

47162-10FA0

1
Out of stock

38

COVER, METER

47821-10FA0

1
Out of stock

39

MOLDING

47824-10FB0

2
Out of stock

40

SCREW, FRONT

09139-06030

2
Out of stock

41

WASHER

09160-06036

2
Out of stock

42

SPACER

09180-06256

2
Out of stock

43

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

2
Out of stock

44

CUSHION This part replaces 09321-06013.

09321-06036

2
Out of stock

45

BOLT, CENTER

07120-0625A

2
Out of stock

46

WASHER

09160-06084

2
Out of stock

47

SPACER

09180-06265

2
Out of stock

48

CUSHION,METER C This part replaces 47825-10F00.

47825-10F01

2
Out of stock

49

CUSHION,SIDE UP This part replaces 47822-10F00.

47822-10F01

2
Out of stock

50

BOLT, REAR

07120-0616A

2
Out of stock

51

WASHER

09160-06084

2
Out of stock

52

SPACER

09180-06256

2
Out of stock

53

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

2
Out of stock

54

CUSHION This part replaces 47829-10F00.

44612-13600

2
Out of stock

55

HINGE, FUEL LID

47380-10F01

1
Out of stock

56

LID, FUEL INLET

47811-10FA0

1
Out of stock

57

CUSHION, LID

47812-10F00

2
Out of stock

58

SCREW

02142-0612A

4
Out of stock

59

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

1
Out of stock

60

CUSHION,REAR,L This part replaces 47828-10F00.

47828-10F01

1
Out of stock

61

COVER, FUEL LID

47812-10FA0

1
Out of stock

62

SCREW

03541-0512A

2
Out of stock

63

COVER, METER SWITCH

47822-10FA0

1
Out of stock

64

SCREW

03541-0512A

2
Out of stock
