2009 Suzuki VL1500 Frame Cover Diagram

← All diagrams

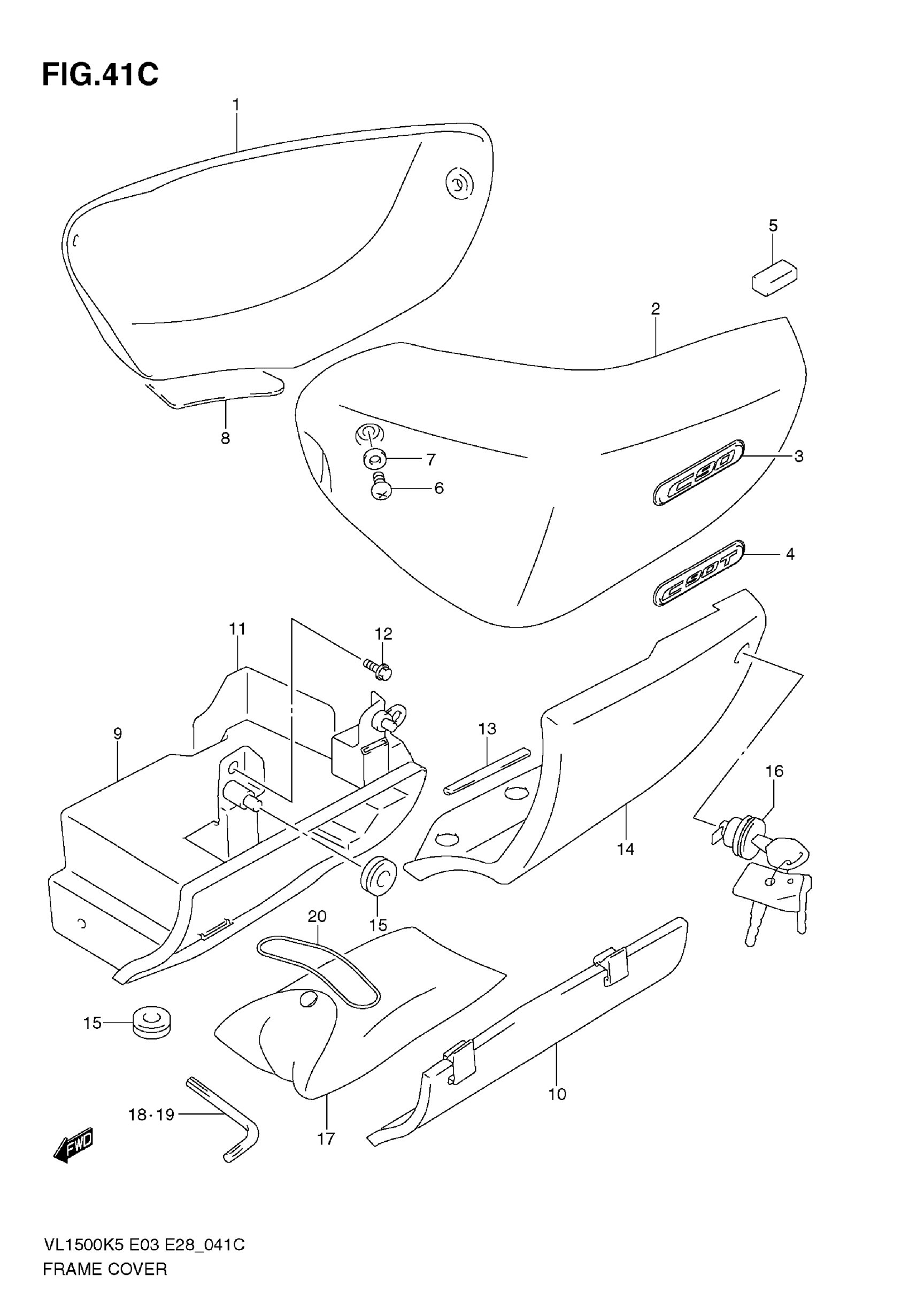

Find the part on the Frame Cover diagram for your 2009 Suzuki VL1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VL1500 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (BLACK) | VL1500

47110-10F00-YAY

1
Out of stock

1

COVER, FRAME RH (GRAY) | VL1500

47110-10F00-YLF

1
Out of stock

1

COVER, FRAME RH (BLACK) | VL1500T

47110-10F00-YAY

1
Out of stock

2

COVER COMP,FRAM | VL1500 This part replaces 47210-10F00-YAY.

47210-10F00-13L

1
Out of stock

2

COVER, FRAME LH (GRAY) | VL1500

47210-10F00-YLF

1
Out of stock

2

COVER COMP,FRAM | VL1500T This part replaces 47210-10F00-YAY.

47210-10F00-13L

1
Out of stock

3

EMBLEM, "C90" | VL1500 This part replaces 68131-10FA0.

68131-10FA1

2
Out of stock

4

EMBLEM, "C90T" | VL1500T This part replaces 68131-10FB0.

68131-10FB1

2
Out of stock

5

CUSHION

47117-10F00

2
Out of stock

6

SCREW

09139-06030

4
Out of stock

7

WASHER

09160-06094

4
Out of stock

8

SHIELD, FRAME COVER RH

47166-10F00

1
Out of stock

9

BODY, TOOL HOLDER

47431-10F00

1
Out of stock

10

CAP, TOOL HOLDER

47432-10F00

1
Out of stock

11

SHIELD, BODY

47436-10F00

1
Out of stock

12

BOLT

09113-06001

3
Out of stock

13

MOLDING, LH

47212-10F00

1
Out of stock

14

COVER, TOOL HOLDER

47440-10F00

1
Out of stock

15

CUSHION (8.5X23X9.5) This part replaces 09320-08047.

09320-08518

4
Out of stock

16

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

1
Out of stock

17

TOOL ASSY This part replaces 09800-21055.

09800-21102

1
Out of stock

18

HEXAGON SPANNER, 6

09816-00050

1
Out of stock

19

HEXAGON SPANNER, 5

09816-00059

1
Out of stock

20

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

1
Out of stock
← Frame Cover Front Fender →
