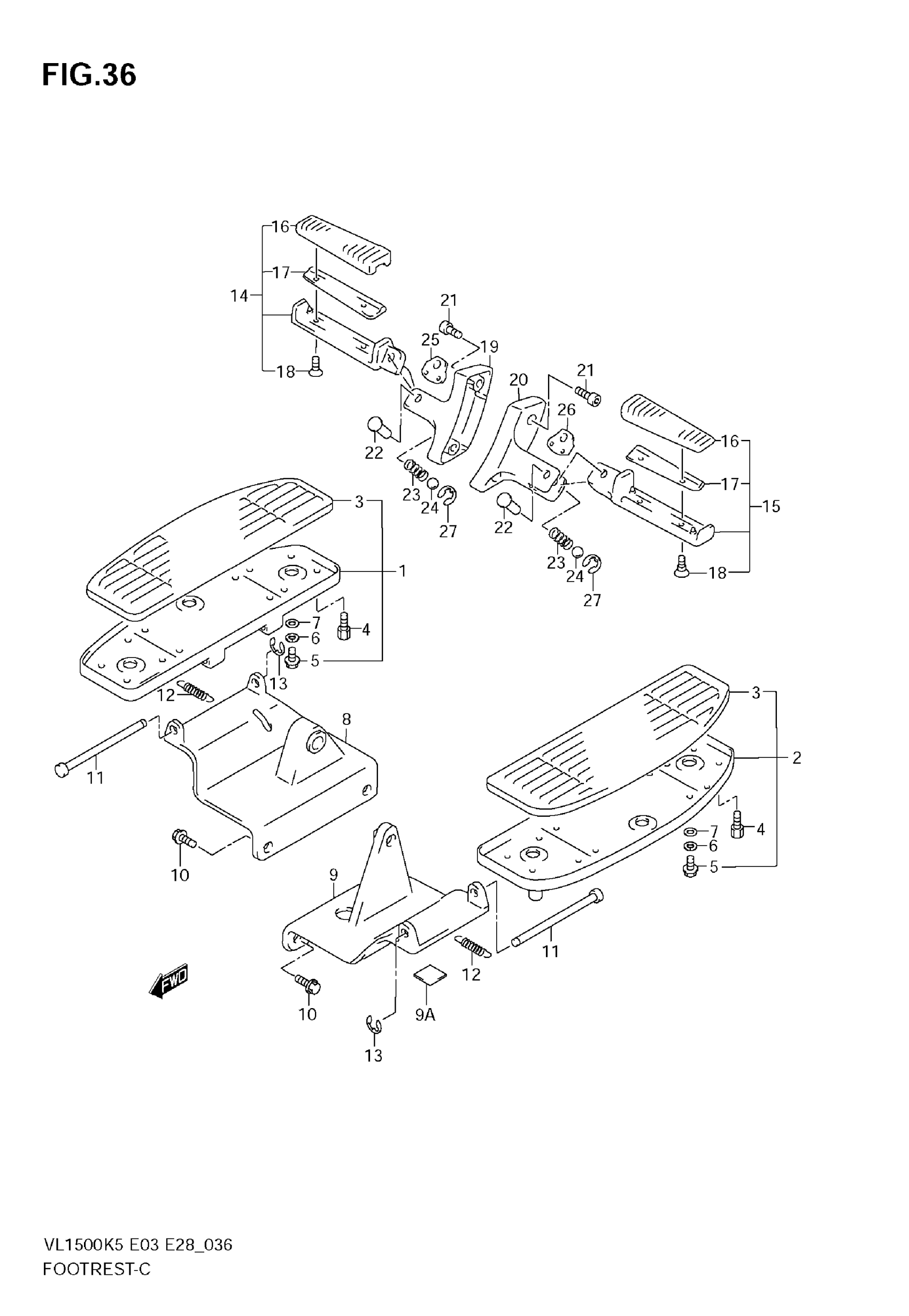

Suzuki VL1500 (2009) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY,FRONT RH This part replaces 43501-10F10.

43501-10F12

$232.63

2

FOOTREST ASSY,FRONT LH | Includes Item(s) 3 - 7 This part replaces 43502-10F10.

43502-10F12

$232.63

3

RUBBER

43550-10F10

Unavailable

4

.BOLT,BANK SENSOR

43576-07D01

$8.10

5

BOLT

01550-0610B

$2.43

6

WASHER | MODEL K5/K6/K7 This part replaces 09160-06503.

09160-06054

$1.62

6

WASHER | MODEL K8/K9

09160-06158

$2.50

7

CUSHION | MODEL K5/K6/K7

09320-10016

Unavailable

7

.CUSHION | MODEL K8/K9 This part replaces 09320-10036.

09320-10077

$2.43

8

BRACKET, FRONT FOOTREST RH

43510-10F00

$256.80

9

BRACKET, FRONT FOOTREST LH

43520-10F00

$256.80

9A

CUSHION This part replaces 47512-10D00.

61544-94500

$1.22

10

BOLT

01580-1035B

$5.83

11

PIN,FRONT FOOTREST

43539-10F00

$7.65

12

SPRING

09443-11033

$4.07

13

E-RING

08332-1106B

$1.98

14

FOOTREST ASSY,P This part replaces 43600-38E00.

43600-38E01

$84.85

15

FOOTREST ASSY,P | Includes Item(s) 16 - 18 This part replaces 43700-38E00.

43700-38E01

$73.83

16

RUBBER,PILLION This part replaces 43612-38A00.

43612-38A10

$9.67

17

PLATE, RUBBER STOP

43632-38A00

$8.32

18

SCREW

09127-05017

$3.00

19

BRACKET, PILLION FOOTREST RH

43811-10F10

$149.37

20

BRACKET, PILLION FOOTREST LH

43821-10F10

$146.60

21

BOLT (8X25) | MODEL K5/K6/K7 This part replaces 09106-08104.

09106-08165

$3.69

21

BOLT, BRACKET | MODEL K8/K9

09106-08165

$3.69

22

PIN

09208-08010

$2.80

23

SPRING

09440-05005

$1.45

24

BALL

06111-07004

$1.22

25

PLATE, RH

43816-10F00

$7.30

26

PLATE, LH

43826-10F00

$7.30

27

E-RING

08332-1106B

$1.98
