SIDE COVER (MODEL K8)

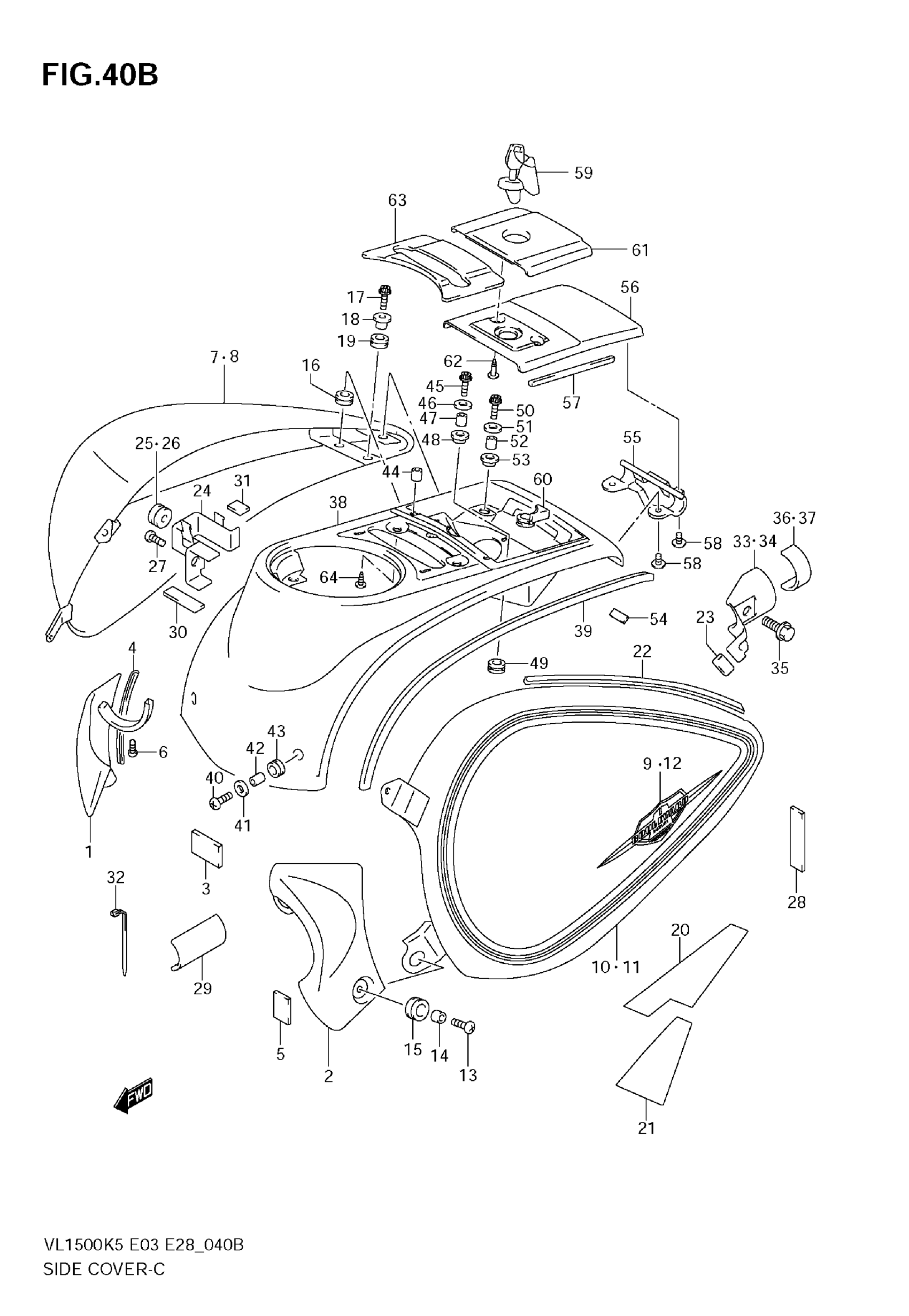

2009 Suzuki VL1500 Side Cover Diagram
Find the part on the Side Cover diagram for your 2009 Suzuki VL1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
COVER, FRAME HEAD RH
47510-10F01
2
COVER, FRAME HEAD LH
47520-10F02
3
CUSHION This part replaces 47829-10F00.
44612-13600
4
MOLDING
47514-10F00
5
TAPE
47161-10D00
7
COVER ASSY, SIDE RH (BLACK) | VL1500/T FOR YAY
47800-10F50-YAY
7
COVER ASSY, SIDE RH | VL1500T
47800-10FC0-EUJ
8
COVER ASSY, SIDE RH (GRAY) | VL1500 FOR CRT
47800-10F70-YHF
8
COVER ASSY, SIDE RH (BLUE) | VL1500 FOR EUA
47800-10F70-YBA
9
EMBLEM, RH This part replaces 68111-10FA0.
68111-10FA1
10
COVER ASSY, SIDE LH (BLACK) | VL1500/T FOR YAY
47900-10F50-YAY
10
COVER ASSY, SIDE LH | VL1500T
47900-10FC0-EUJ
11
COVER ASSY, SIDE LH (GRAY) | VL1500 FOR CRT
47900-10F70-YHF
11
COVER ASSY, SIDE LH (BLUE) | VL1500 FOR EUA
47900-10F70-YBA
12
EMBLEM, LH This part replaces 68121-10FA0.
68121-10FA1
13
SCREW
09139-06030
14
SPACER
09180-06260
15
CUSHION (8.5X20X8) This part replaces 09320-08021.
09320-08510
16
CUSHION,SIDE UP This part replaces 47822-10F00.
47822-10F01
17
BOLT, INNER
07120-0620B
18
WASHER
47827-10F00
19
CUSHION,SIDE UP This part replaces 47826-10F00.
47826-10F01
20
CUSHION, SIDE UPPER RH NO.1
47835-10FA0
21
CUSHION, SIDE UPPER RH NO.2
47836-10FA0
22
MOLDING, SIDE UPPER LOWER
47837-10FA0
23
CUSHION, BRACKET
47166-10FA0
24
BRACKET, SIDE COVER RH
47850-10FA0
25
CUSHION, RH
09321-10034
26
CUSHION
09321-10012
27
BOLT
01550-0616B
28
TAPE, SHIELD
47164-10FA0
29
CUSHION, SIDE FRONT
47165-10FA0
31
.PROTECTOR, CTR This part replaces 17765-09F00.
17765-09F01
32
CLAMP
09407-18402
33
BRACKET, SIDE UPPER RH
47839-10FA0
34
BRACKET, SIDE UPPER LH
47849-10FA0
35
BOLT
01550-0616B
36
.CUSHION,BRACKET NO.1 This part replaces 47161-10FA0.
47161-10FA1
37
CUSHION, NO.2
47162-10FA0
38
COVER, METER
47821-10FA0
39
MOLDING
47824-10FB0
40
SCREW, FRONT
09139-06030
41
WASHER
09160-06036
42
SPACER
09180-06256
43
CUSHION (8.4X18X6) This part replaces 09320-08051.
09320-08066
44
CUSHION This part replaces 09321-06013.
09321-06036
45
BOLT, CENTER
07120-0625B
46
WASHER
09160-06084
47
SPACER
09180-06265
48
CUSHION,METER C This part replaces 47825-10F00.
47825-10F01
49
CUSHION,SIDE UP This part replaces 47822-10F00.
47822-10F01
50
BOLT, REAR
07120-0616B
51
WASHER
09160-06084
52
SPACER
09180-06256
53
CUSHION (8.4X18X6) This part replaces 09320-08051.
09320-08066
54
CUSHION This part replaces 47829-10F00.
44612-13600
55
HINGE, FUEL LID
47380-10F01
56
LID, FUEL INLET
47811-10FA0
57
CUSHION, LID
47812-10F00
58
SCREW
02142-0612B
59
LOCK SET,COVER This part replaces 95700-07860.
95700-07861
60
CUSHION,REAR,L This part replaces 47828-10F00.
47828-10F01
61
COVER, FUEL LID
47812-10FA0
62
SCREW
03541-0512B
63
COVER, METER SWITCH
47822-10FA0
64
SCREW
03541-0512B
