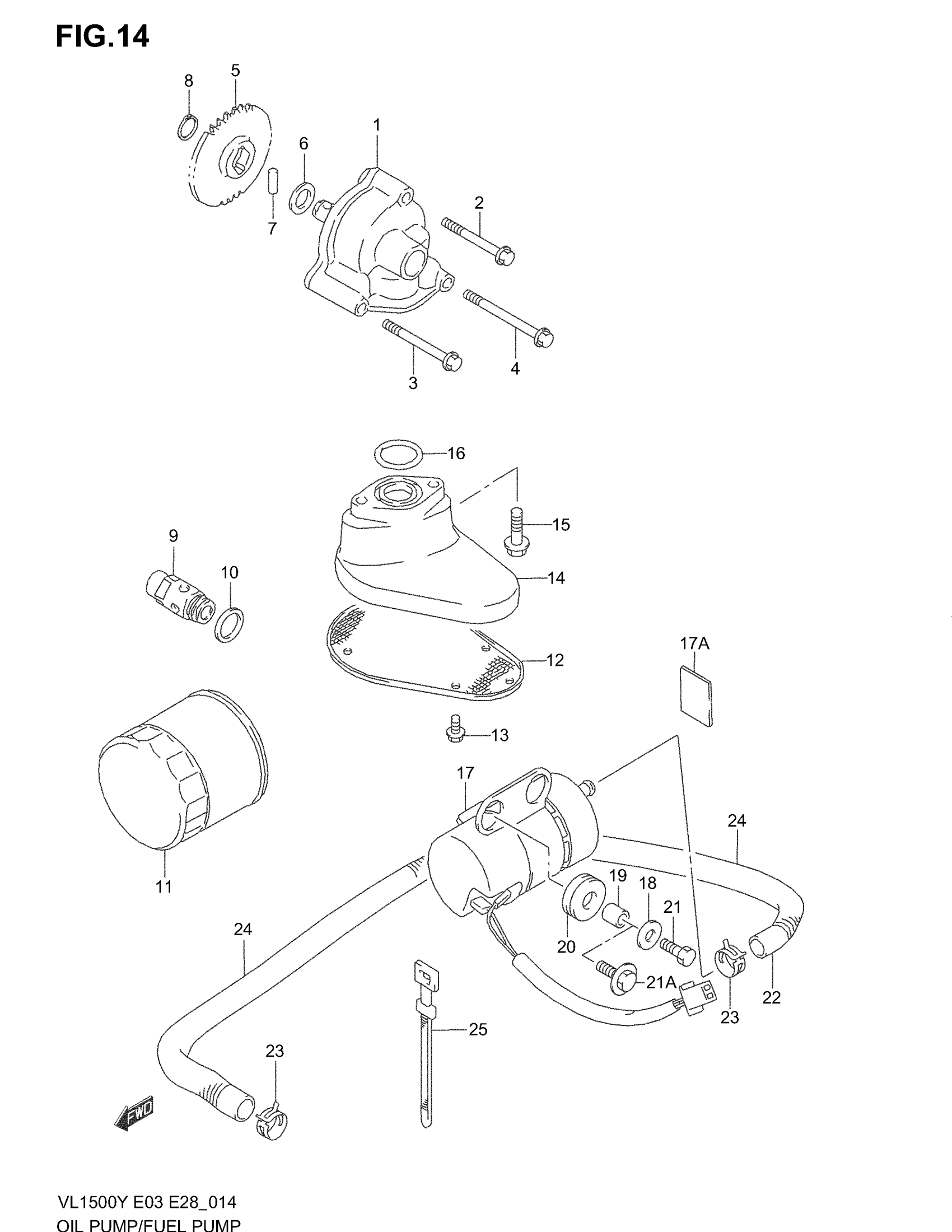

Suzuki VL1500 (2004) OIL PUMP/FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL

16400-38B10

$288.20

2

BOLT This part replaces 01547-06453.

01547-0645B

$2.80

3

BOLT This part replaces 01547-06553.

01547-0655B

$2.80

4

BOLT This part replaces 01547-06653.

01547-0665B

$3.01

5

GEAR, OIL PUMP DRIVEN (NT:31)

16331-38B01

Unavailable

6

WASHER

09181-12158

$2.31

7

PIN

09261-05006

$1.52

8

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.82

9

VALVE ASSY,OIL RELIEF

16440-17C20

$71.63

10

GASKET

09168-16002

$1.97

11

FILTER, ENGINE OIL | MODEL W/X/Y/K1/K2/K3 This part replaces 16510-34E00.

16510-07J00

$12.35

11

FILTER, ENGINE OIL | MODEL K4 This part replaces 16510-03G00.

16510-07J00

$12.35

12

STRAINER, OIL

16520-38B10

Unavailable

13

BOLT This part replaces 01550-05103.

01550-0510A

$2.65

14

HOLDER, OIL STRAINER

16525-38B10

Unavailable

15

BOLT This part replaces 01550-06253.

01550-0625A

$2.01

16

O RING (D:3.1,ID:22.7)

09280-22008

$2.10

17

PUMP ASSY,FUEL This part replaces 15100-10F00.

15100-10F01

$182.88

17A

CUSHION

61374-08010

Unavailable

18

WASHER (6.5X20X1.2) | MODEL W/X/Y

09160-06077

$1.97

19

SPACER

09180-06263

$1.68

20

CUSHION

09320-09009

$4.32

21

BOLT | MODEL W/X/Y

01500-06207

$2.06

21A

BOLT (6X20) | MODEL K1/K2/K3/K4 This part replaces 09116-06011.

09116-06115

$2.03

22

HOSE, FUEL (PUMP & CARB)

15801-10F00

$26.92

23

CLIP This part replaces 09401-11407.

09401-11415

$2.31

24

SPRING

09440-14047

$9.19

25

CLAMP | MODEL W

09407-18402

$2.29
