2004 Suzuki VL1500 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2004 Suzuki VL1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

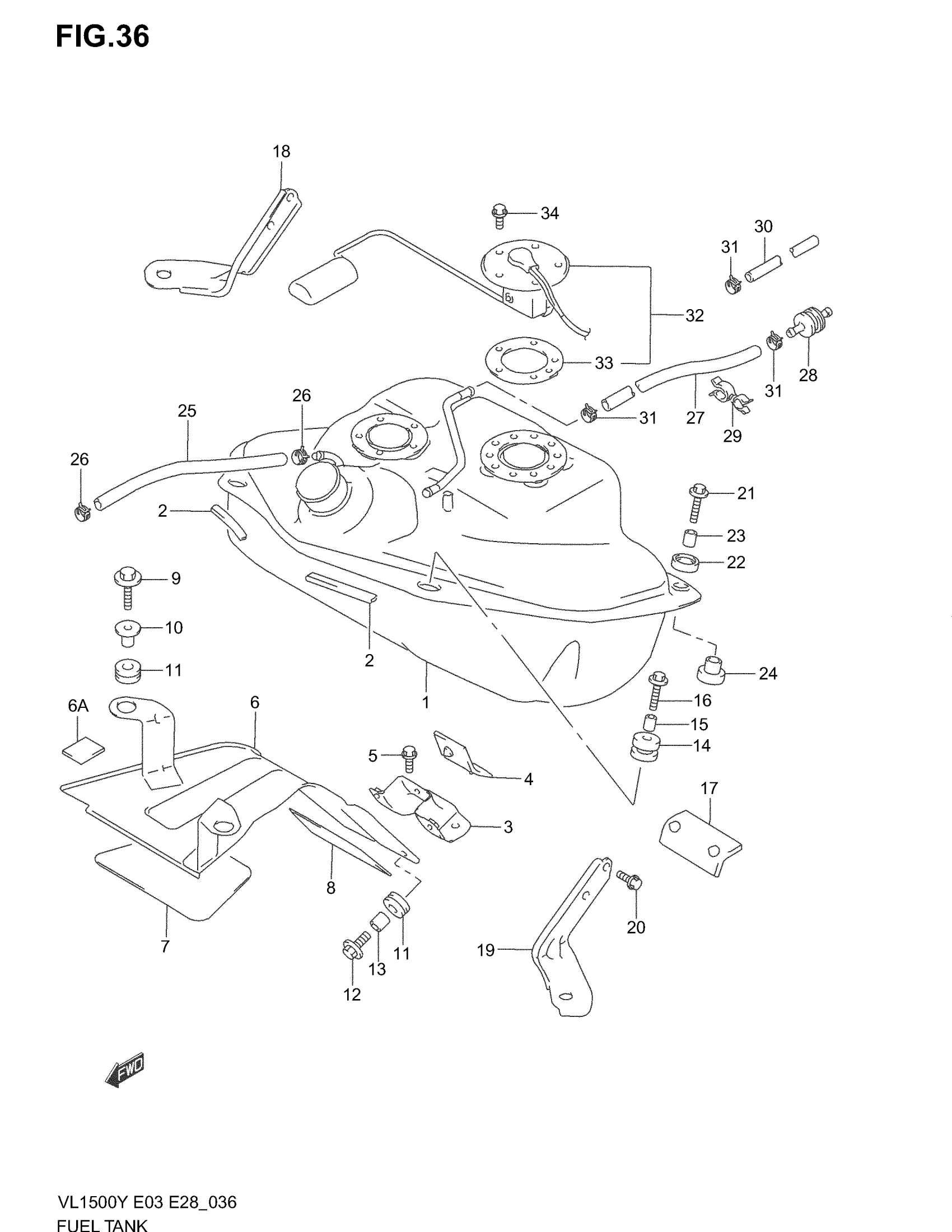

2004 Suzuki VL1500 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL | MODEL W/X

44110-10F00

1
Out of stock

1

TANK,FUEL | MODEL Y/K1/K2/K3/K4 This part replaces 44110-10F10.

44110-10F11

1
Out of stock

2

MOLDING

68241-04X50-00B

1
Out of stock

3

BRACKET, FRONT

44130-10F00

1
Out of stock

4

CUSHION, BRACKET

44511-10F00

1
Out of stock

5

BOLT This part replaces 01550-06103.

01550-0610A

2
Out of stock

6

COVER, FUEL TANK FRONT | MODEL W This part replaces 44270-10F00.

44270-10F02

1
Out of stock

6

COVER, FUEL TANK FRONT | MODEL X/Y This part replaces 44270-10F01.

44270-10F02

1
Out of stock

6

COVER, FUEL TANK FRONT | MODEL K1/K2/K3/K4

44270-10F02

1
Out of stock

6A

CUSHION

61544-94500

1
Out of stock

7

SHIELD, COVER UPPER

44267-10F00

1
Out of stock

8

SHIELD, COVER LOWER

44268-10F00

1
Out of stock

9

BOLT, COVER UPPER

09116-06171

2
Out of stock

10

WASHER

09169-06070

2
Out of stock

11

4

$2.23

In stock

12

BOLT, COVER LOWER

09116-06115

2
Out of stock

13

SPACER

09180-06248

2
Out of stock

14

CUSHION,FUEL TANK SIDE This part replaces 44512-04F00.

44512-04F01

2
Out of stock

15

SPACER

09180-06267

2
Out of stock

16

BOLT | MODEL W

09116-06147

2
Out of stock

16

BOLT | MODEL X/Y/K1/K2/K3/K4

09116-06172

2
Out of stock

17

CUSHION, REAR CENTER

44541-10F00

1
Out of stock

18

BRACKET, REAR RH

44150-10F00

1
Out of stock

19

BRACKET, REAR LH

44160-10F00

1
Out of stock

20

BOLT This part replaces 01550-06103.

01550-0610A

4
Out of stock

21

BOLT, FUEL TANK REAR

09116-06172

2
Out of stock

22

CUSHION, UPPER

09320-14022

2
Out of stock

23

SPACER

09180-06271

2
Out of stock

24

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

2
Out of stock

25

HOSE, AIR VENT (L:600!190)

09355-11165-600

1
Out of stock

26

CLIP

09401-15404

2
Out of stock

27

HOSE, TANK & VALVE (L:600!150)

09355-54116-600

1
Out of stock

28

VALVE,2 WAY CHECK

85451-75100

1
Out of stock

29

CLAMP

09408-00140

1
Out of stock

30

HOSE, VALVE & CATCH (L:600!440)

09355-54116-600

1
Out of stock

31

CLIP (ID:10.5,H:8)

09401-10409

4
Out of stock

32

GAUGE ASSY,FUEL | MODEL W This part replaces 34810-10F00.

34810-10F01

1
Out of stock

32

FUEL GUAGE SEND | MODEL X/Y/K1/K2/K3/K4; Includes Item(s) 33 This part replaces 34810-10F10.

34810-10F11

1
Out of stock

33

GASKET

34825-45100

1
Out of stock

34

BOLT This part replaces 09117-05003.

01570-0510B

5
Out of stock
