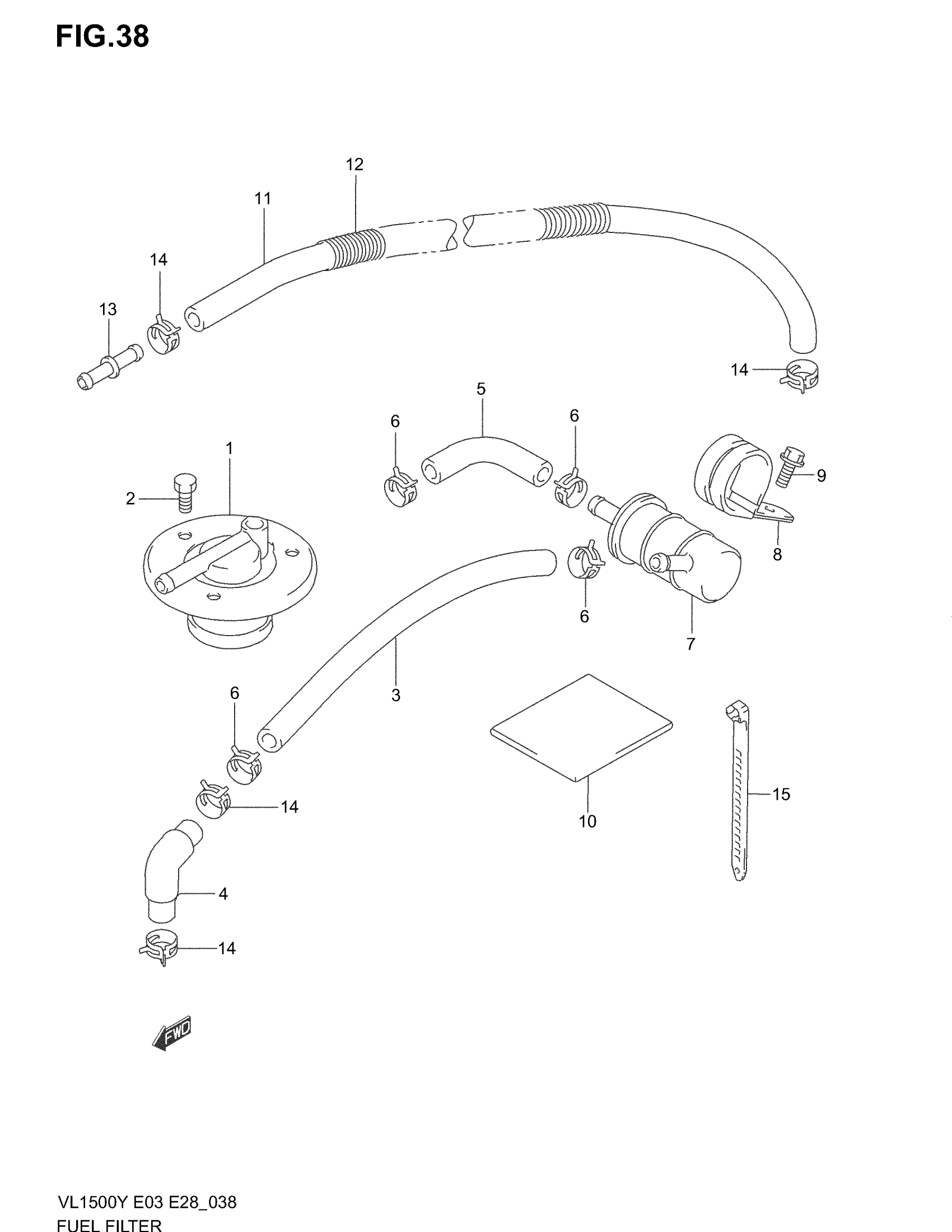

Suzuki VL1500 (2004) FUEL FILTER Diagram

#

Description
Price

1

VALVE, FUEL CUT | MODEL W This part replaces 89485-56B00.

89485-65D00

$101.35

1

VALVE, FUEL CUT | MODEL X/Y/K1/K2/K3/K4

89485-65D00

$101.35

2

BOLT This part replaces 09117-05003.

01570-0510B

$2.55

3

HOSE,6.5X11.5X6 This part replaces 09355-70125-600.

44421-12FR0

$11.29

4

JOINT,FUEL HOSE This part replaces 44451-10F00.

44451-10F01

$18.37

5

HOSE SET,CSTR P This part replaces 44432-10F00.

44400-38810

$11.98

6

CLIP This part replaces 09401-11407.

09401-11415

$2.24

7

FILTER, FUEL

44330-10F00

$31.21

8

CLAMP,FUEL FILT This part replaces 44339-10F00.

44339-10F01

Unavailable

9

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

10

CUSHION

44831-10F00

Unavailable

11

HOSE,6.5X11.5X6 This part replaces 09355-70125-600.

44421-12FR0

$11.29

12

SPRING

09440-14047

$8.87

13

JOINT

09367-08001

$4.53

14

CLIP This part replaces 09401-11407.

09401-11415

$2.24

15

CLAMP

09407-18402

$2.21
